NCM Cru7s

Introduction

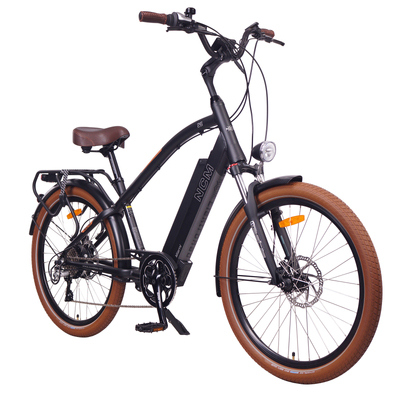

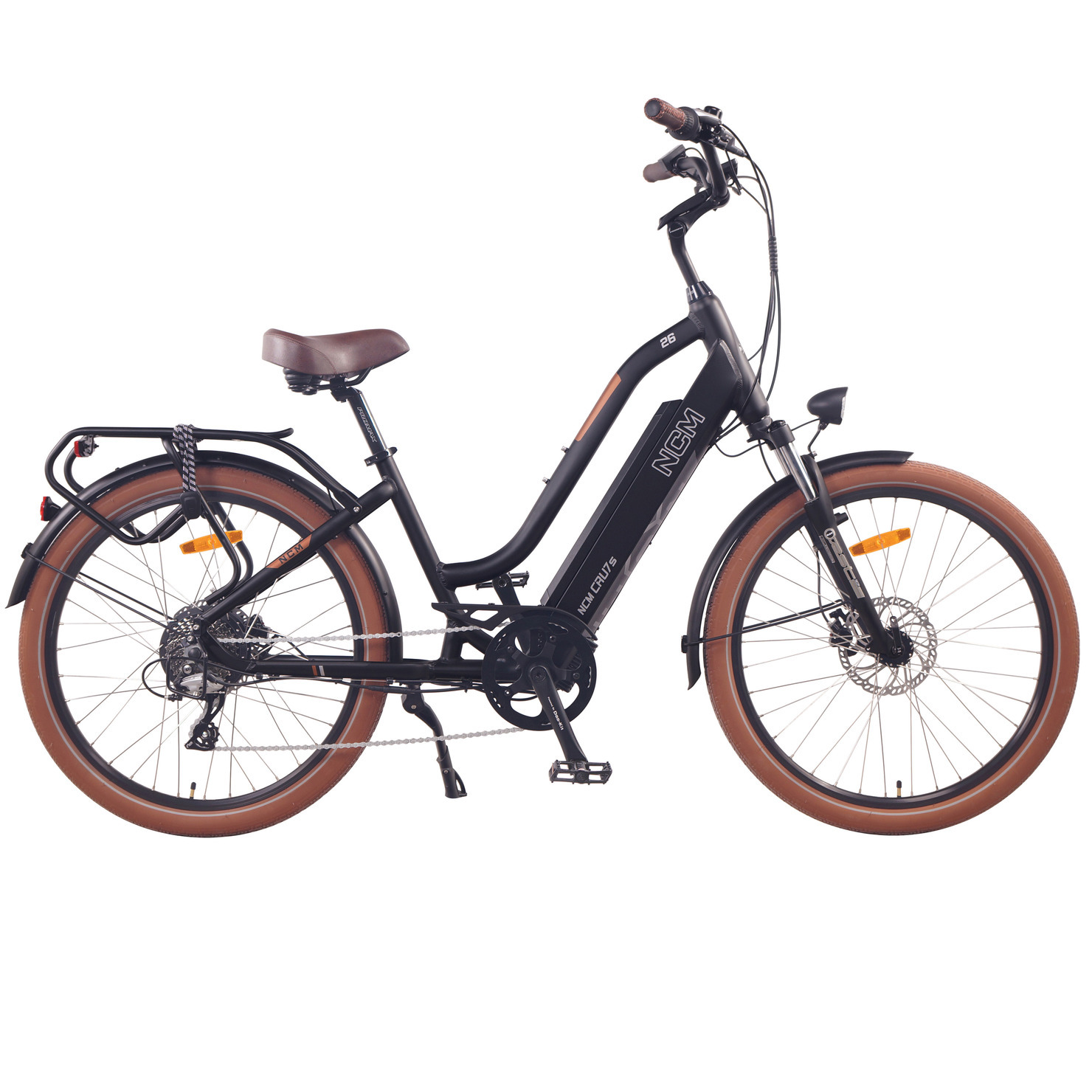

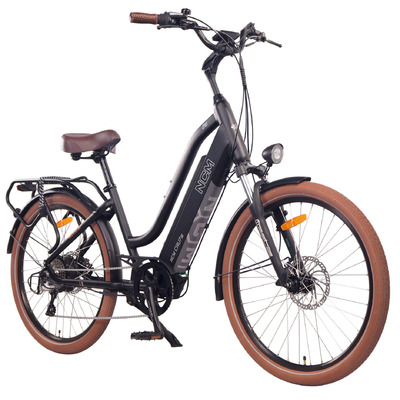

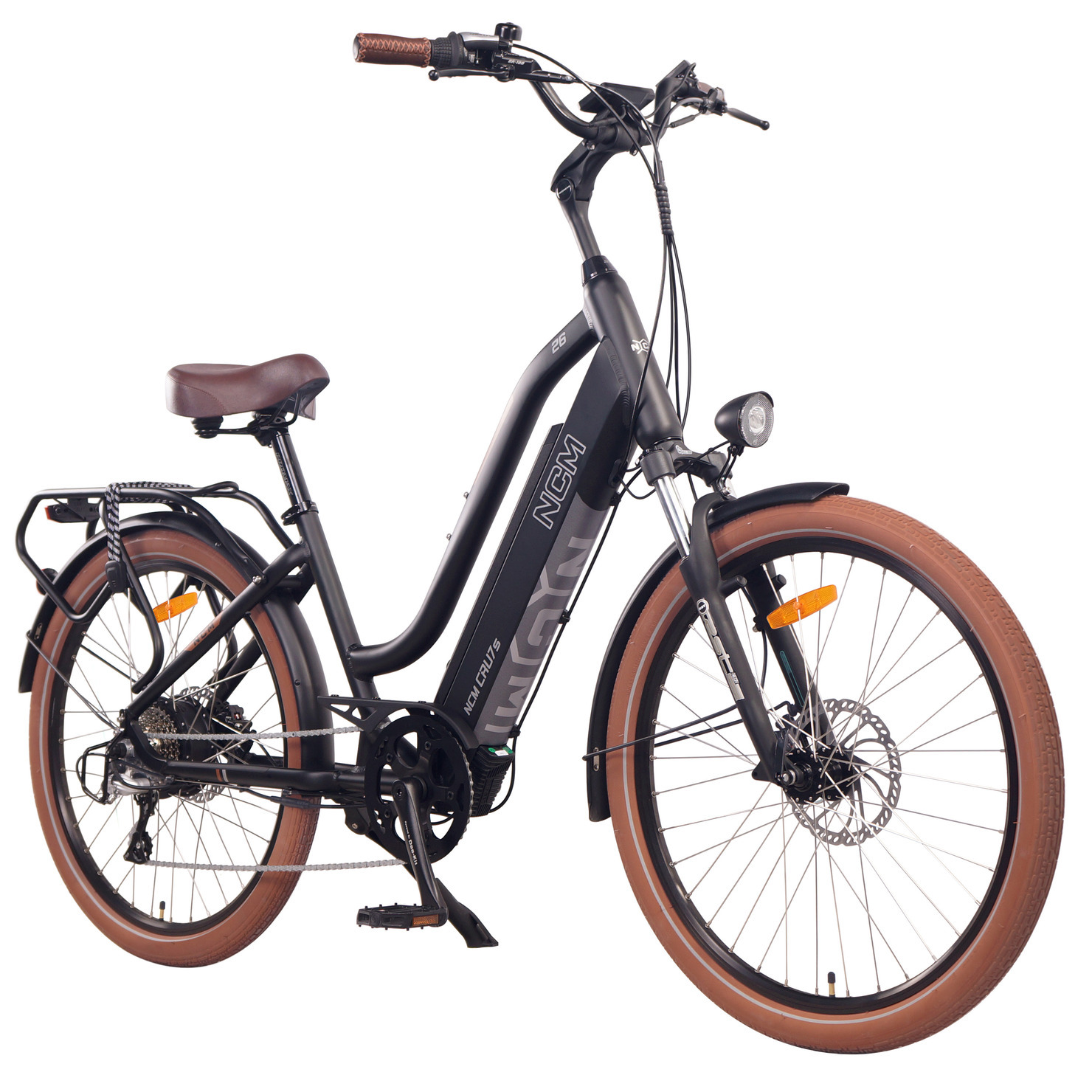

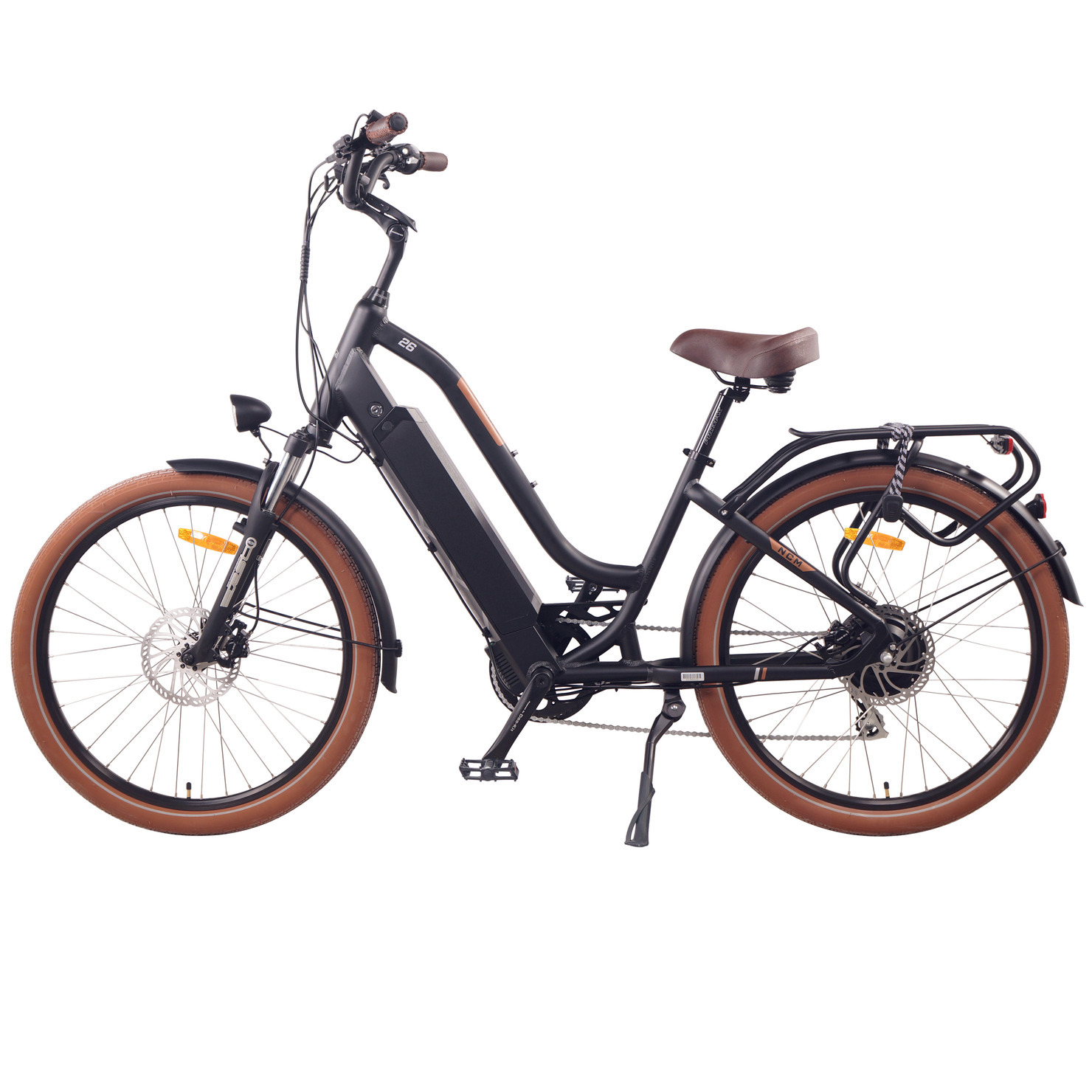

The NCM Cru7 is a true cruiser hybrid E-bicycle and a perfect bike for those casual relaxing rides around your neighborhood on bike paths or at the beach. Designed for gliding through city streets and effortlessly handling light trail journeys, the NCM Cru7 e-cruiser bike lets you sit back and relax safe in the knowledge that your e-bike has you covered, powered along with exceptional design and components crafted for maximum range.

Key Features

  • Ergonomic bicycle Grips
  • Comfortable sitting posture
  • Easy handling of the components

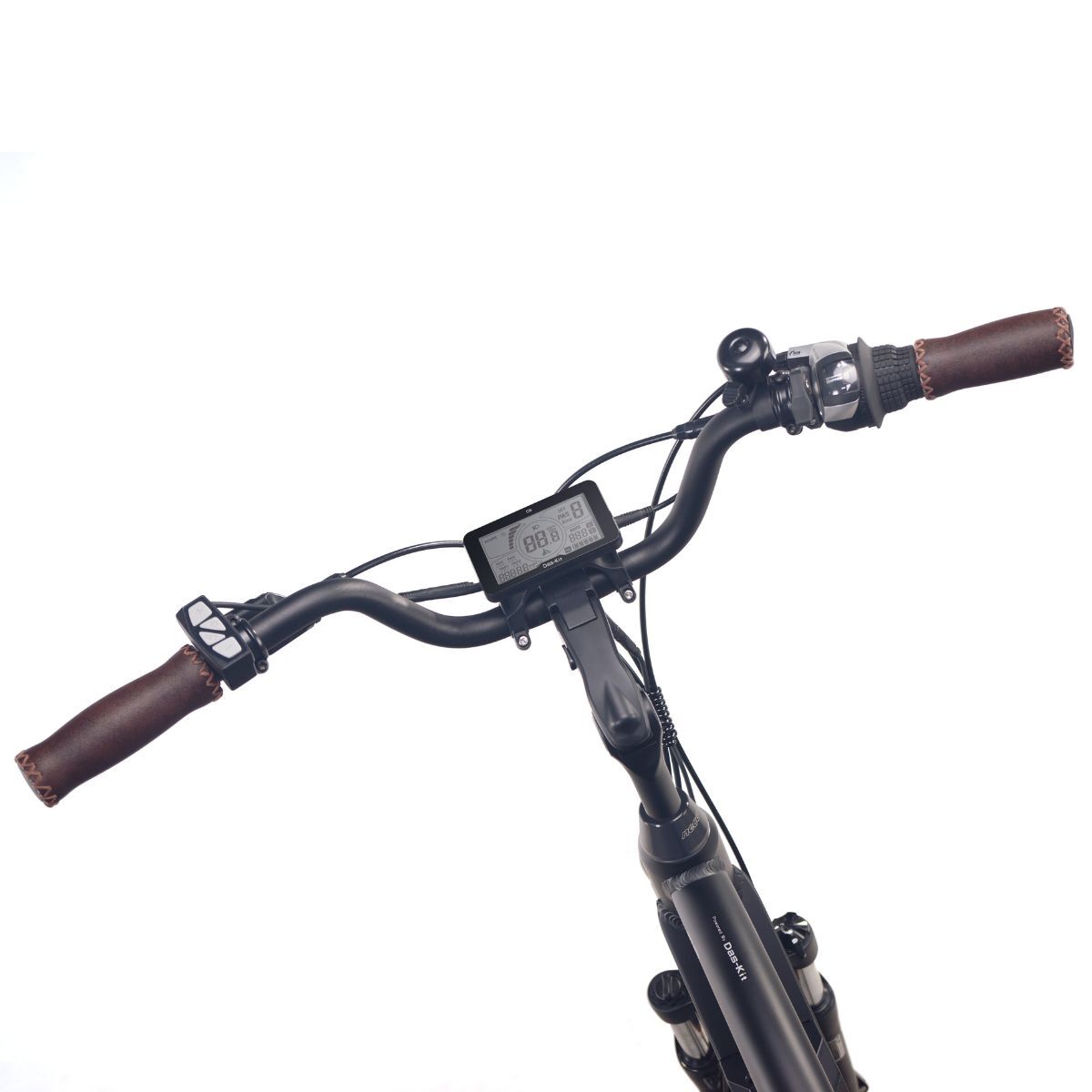

  • Adjustable handlebar for a good driving position
  • All important controls are easily accessible

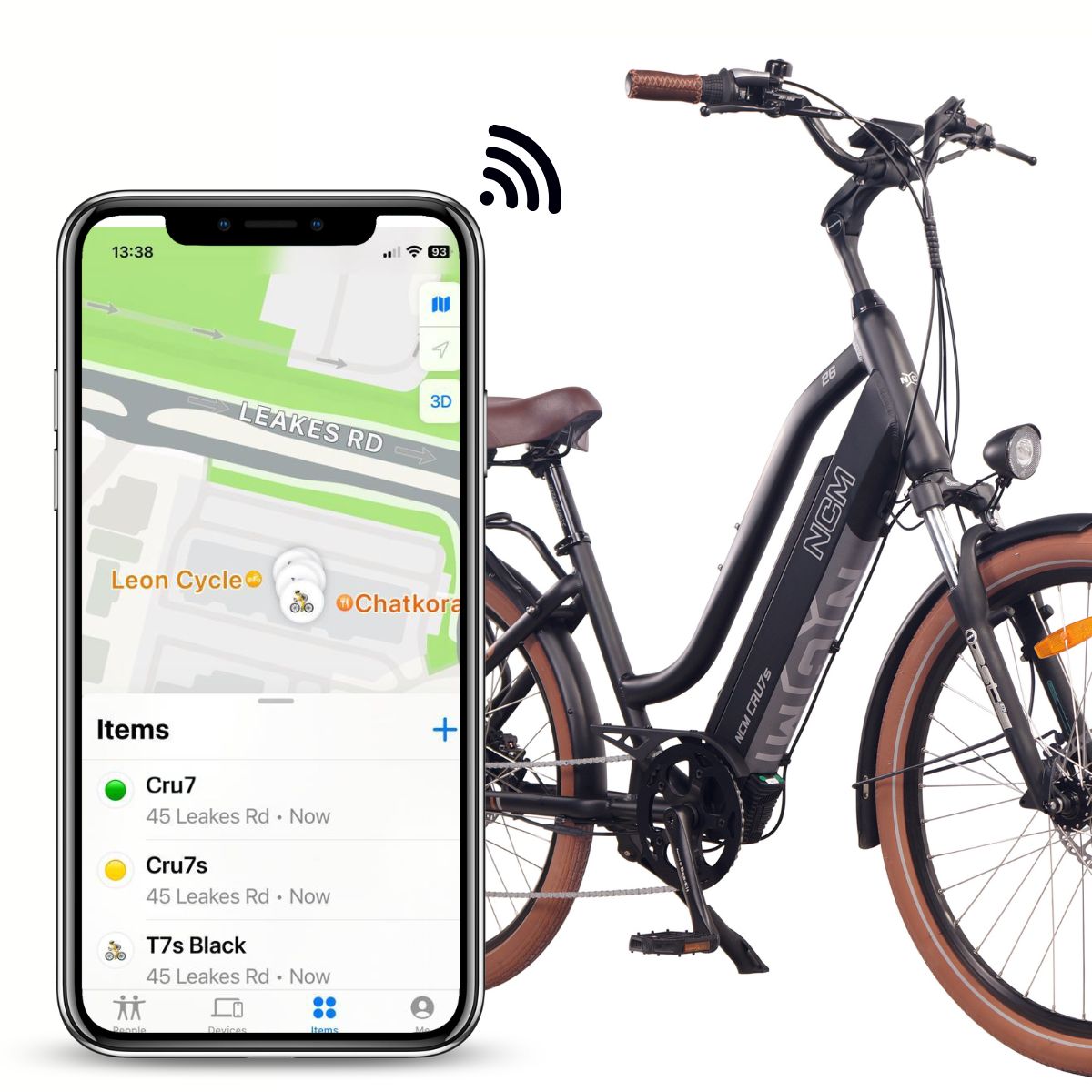

  • Built-in GPS (Battery Tag Technology)
  • Supplied with 48V to deliver a high output power
  • Up to 500W Peak Motor Power
  • Over 912Wh capacity for a long distance
  • Up to 180km Battery Range (depending on the conditions)
  • Battery integrated in the frame for better aesthetics
  • Easily removable battery so you can charge it anywhere
  • A built-in USB port with 5V to charge mobile phones

Das kit 250W-500W Motor

Das Kit C8 Display

48V battery with USB

Schwalbe Tyres

Specifications

  Cru7s NCM Miami
Motor Das-Kit X15 motor, 48V 250W,
500W Peak Power, max speed 25 km/h
Das-Kit X15 Rear-Drive motor, 48V 250W,
500W Peak Power, max speed 25 km/h
Battery Das-Kit, I7-4819, 48V 19Ah, 912Wh
with TAG Technology & USB Port
DEHAWK I5-4816H,48V 16AH, 768WH
Display Das-Kit C8 Advanced, LCD Display Das-Kit, C7 Display

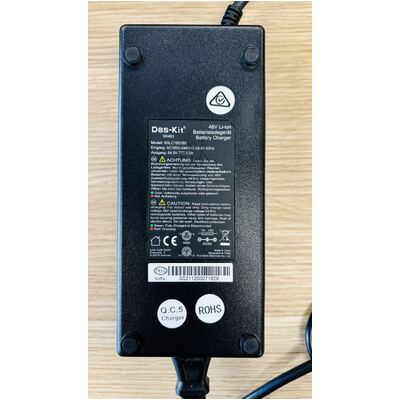

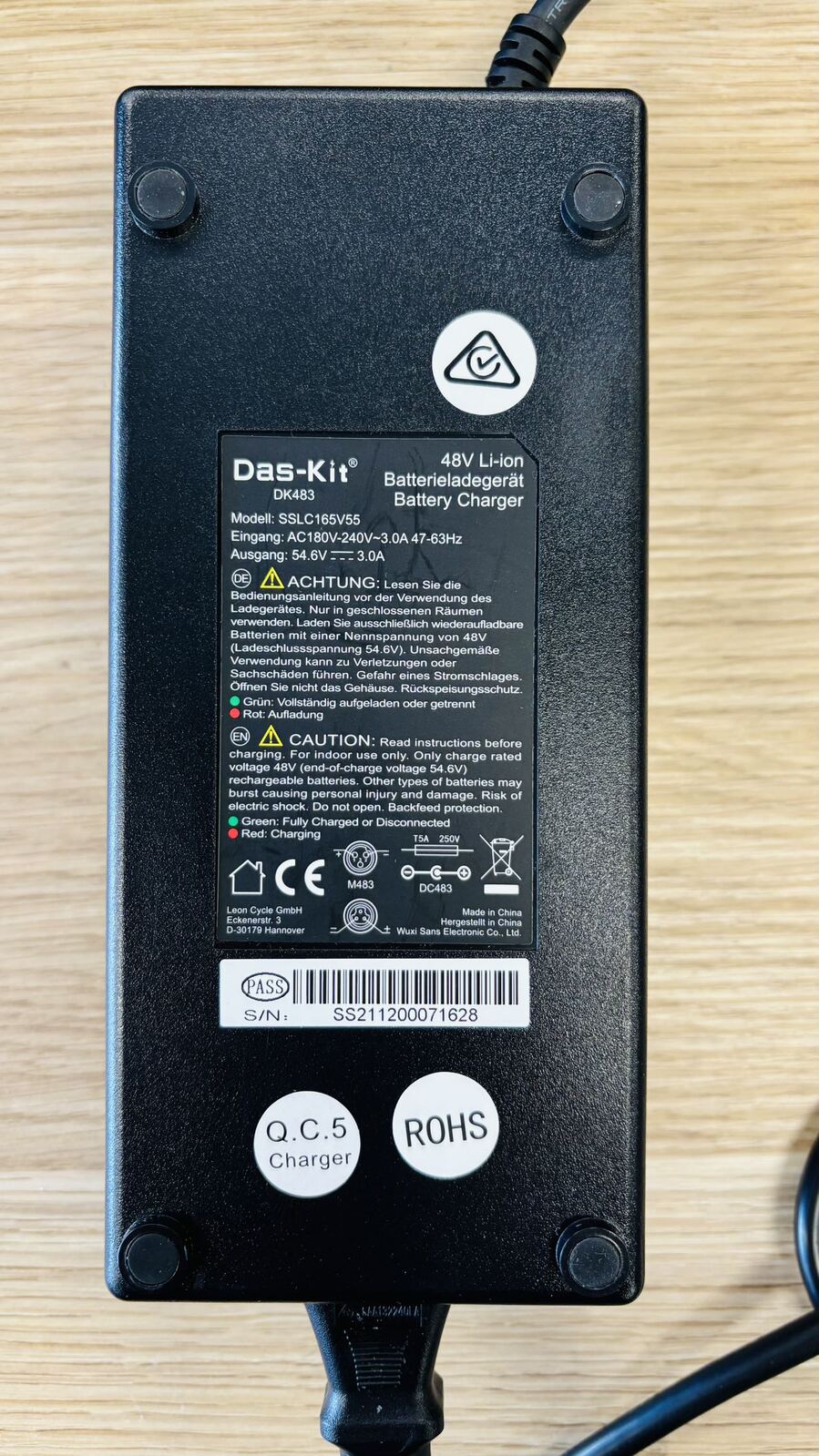

Charger Das-Kit, DK483, 48V 3A Fast Charger 48V 2A included (round plug) DC483DE
Frame Alu. 6061, 26*480MM Alu. 6061, 26"*480MM

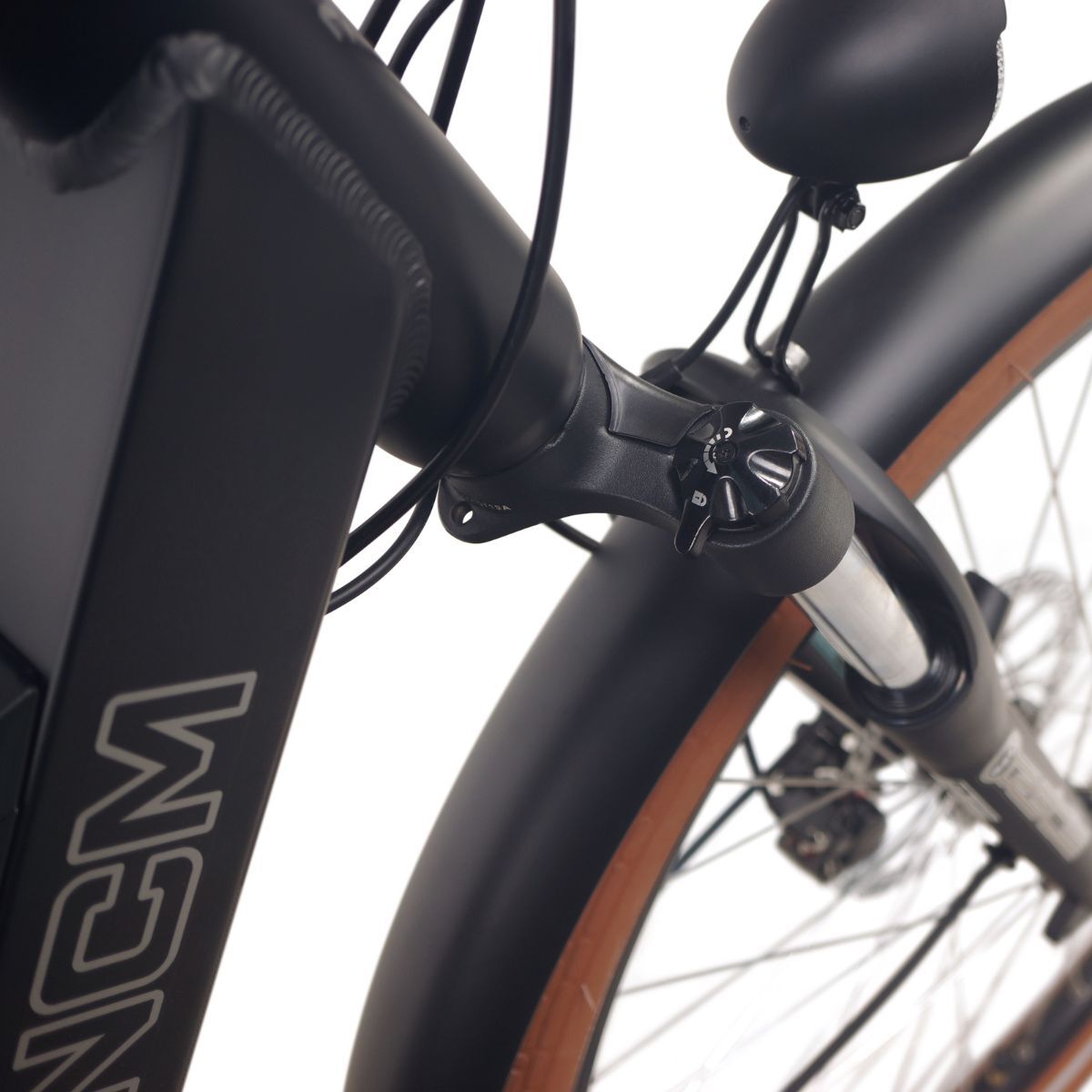

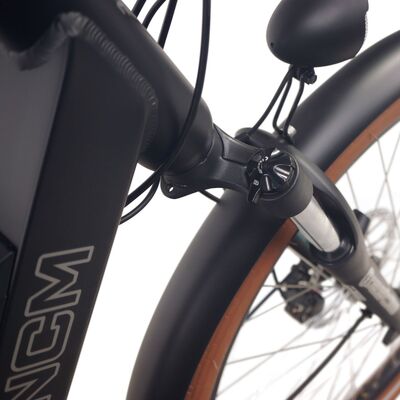

Forks RST, NEON-TNL-26, with Hydraulic Lock System SR Suntour RST-NEON-600C (preload, lockout)
Braking System Das-Kit, Hydraulic Disc Brakes Tektro Hydraulic Disc

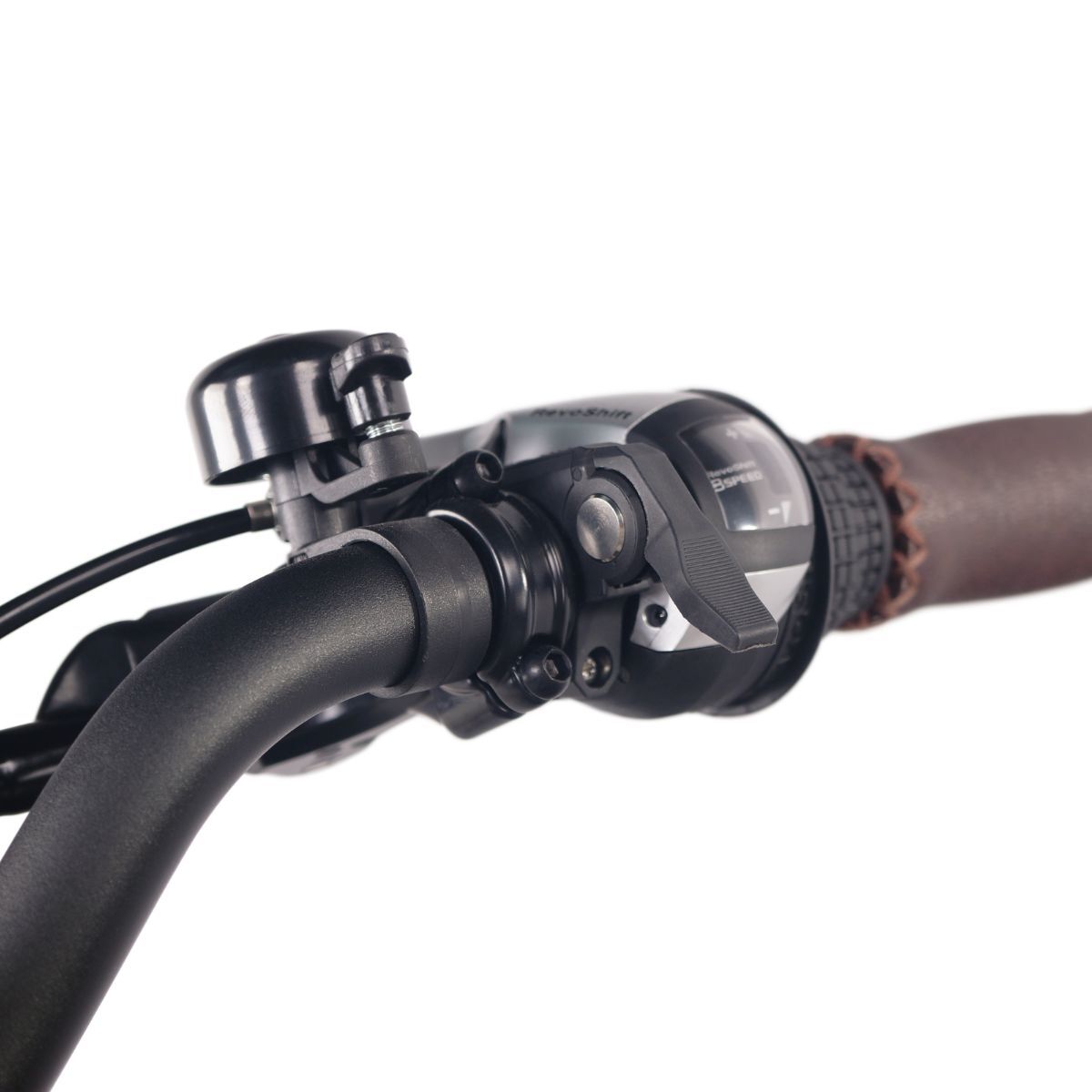

Gear Selector Shimano Altus 8 speed Shimano, Acera M360, 8 speed
Front Derailleur / N/A

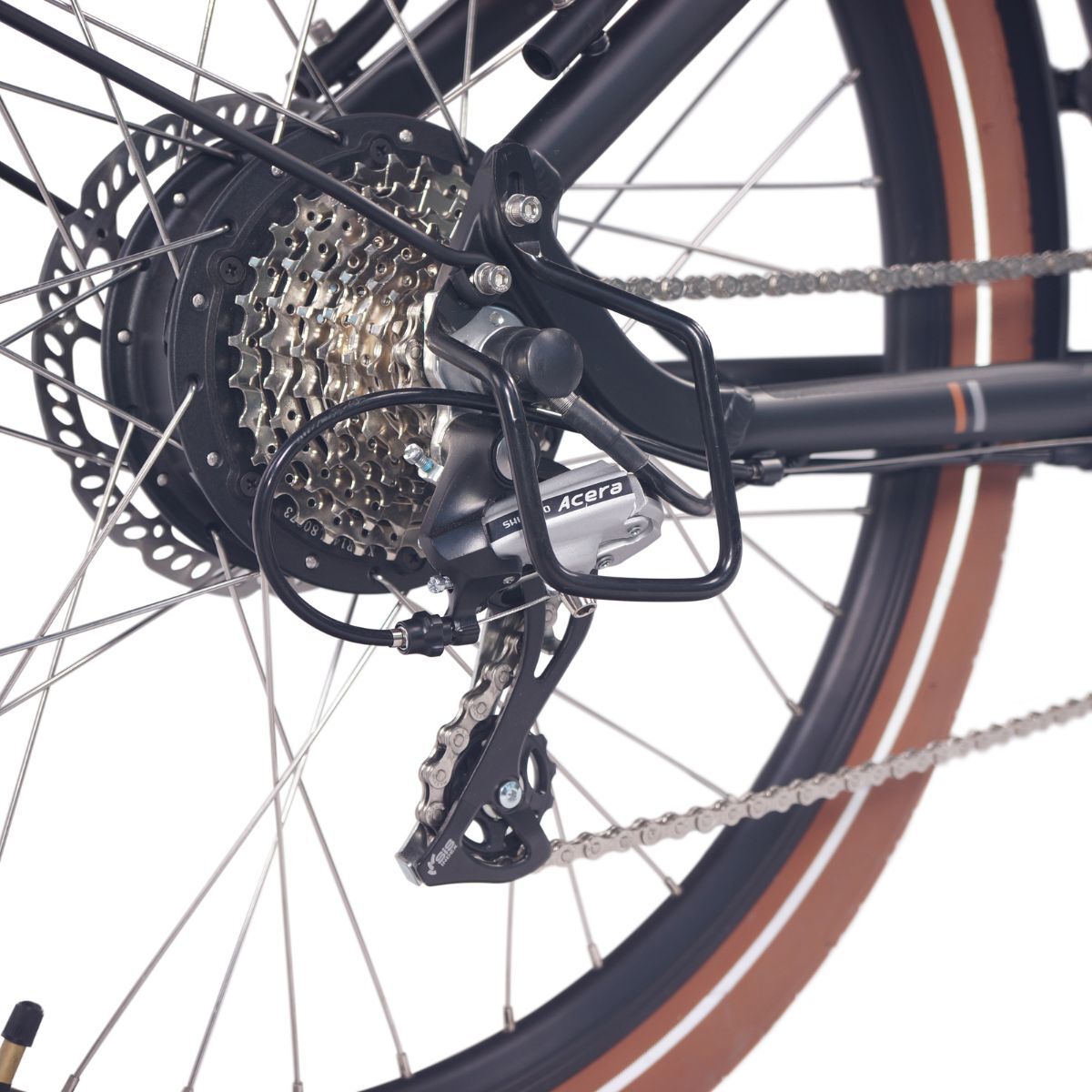

Rear derailleur Shimano, Acera, RD-M360 Shimano Acera M360, 8 speed

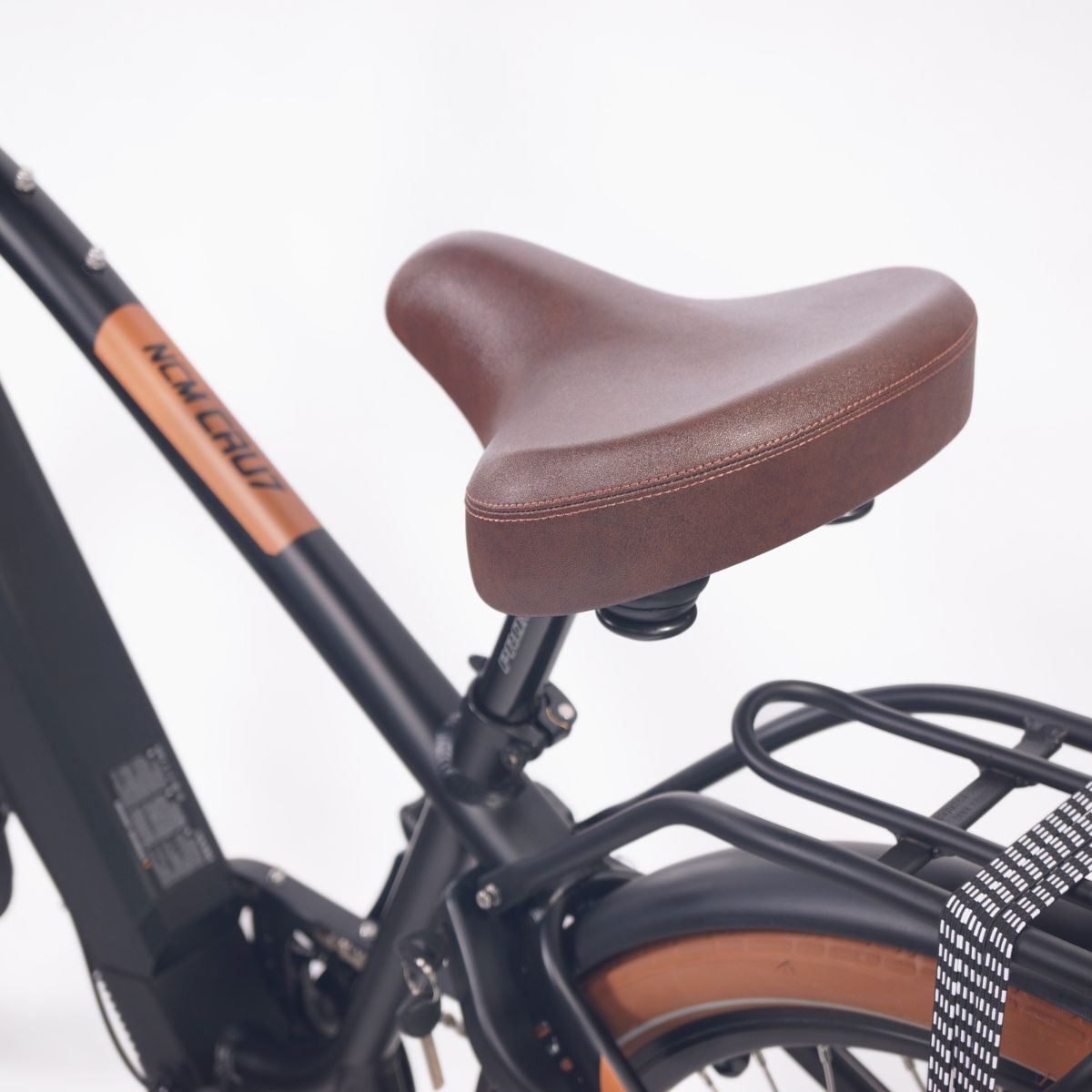

Saddle Selle Royal, Justek:6534 UEN, Brown Selle Royal, Extra Wide, Brown
Tyre CST, C1779,26*2.15, Brown CST / Schwalbe Big Apple. 26×2.15
Handle Grips Promax, HB-3233N, Width 660mm, Black Selle Royal, Brown
Pedal Wellgo, B087 Wellgo, B087, Black
Range Up to 180 km Upto 150 km
Weight 29.8kg 27 kg


Sizing Chart

cm   A B C D E
  Overall Length Reach Frame Size Wheel Base Min/Max Seat Height
NCM CRU7s 150-182 cm 185 cm 65 cm 40 cm 124 cm 80/90 cm


Warranty

  • Leon Cycle provides 1-year warranty on all electronic parts (including battery, motor, controller, display, lights)
  • Leon Cycle provides 2-year warranty on the bike frame. For more warranty information visit our FAQS.
  • Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months. For more information contact Leon Cycle on 0390695443.
  • Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.


About NCM

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.


Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. For more information contact us on 0390695443. Visit our Youtube channel for Assembly and New Arrivals Videos. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

Our E-Bikes meet the following standards:

EPAC EN15194 (limited to 25km/h, 250W motor)
Chargers registered with Australian ERAC as approved for use in AU
Batteries meet international standards IEC 62133-2:2017 (inc battery management)

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

  • 1 x Cru7s E-bike
  • 1 x Das-Kit 48v charger
  • 1 x tool kit


(P-Miami-Cru7s)

SKU P-Miami-Cru7s
Brand NCM
Shipping Weight 33.0000kg
Shipping Width 0.230m
Shipping Height 1.020m
Shipping Length 1.860m
Shipping Cubic 0.436356000m3
