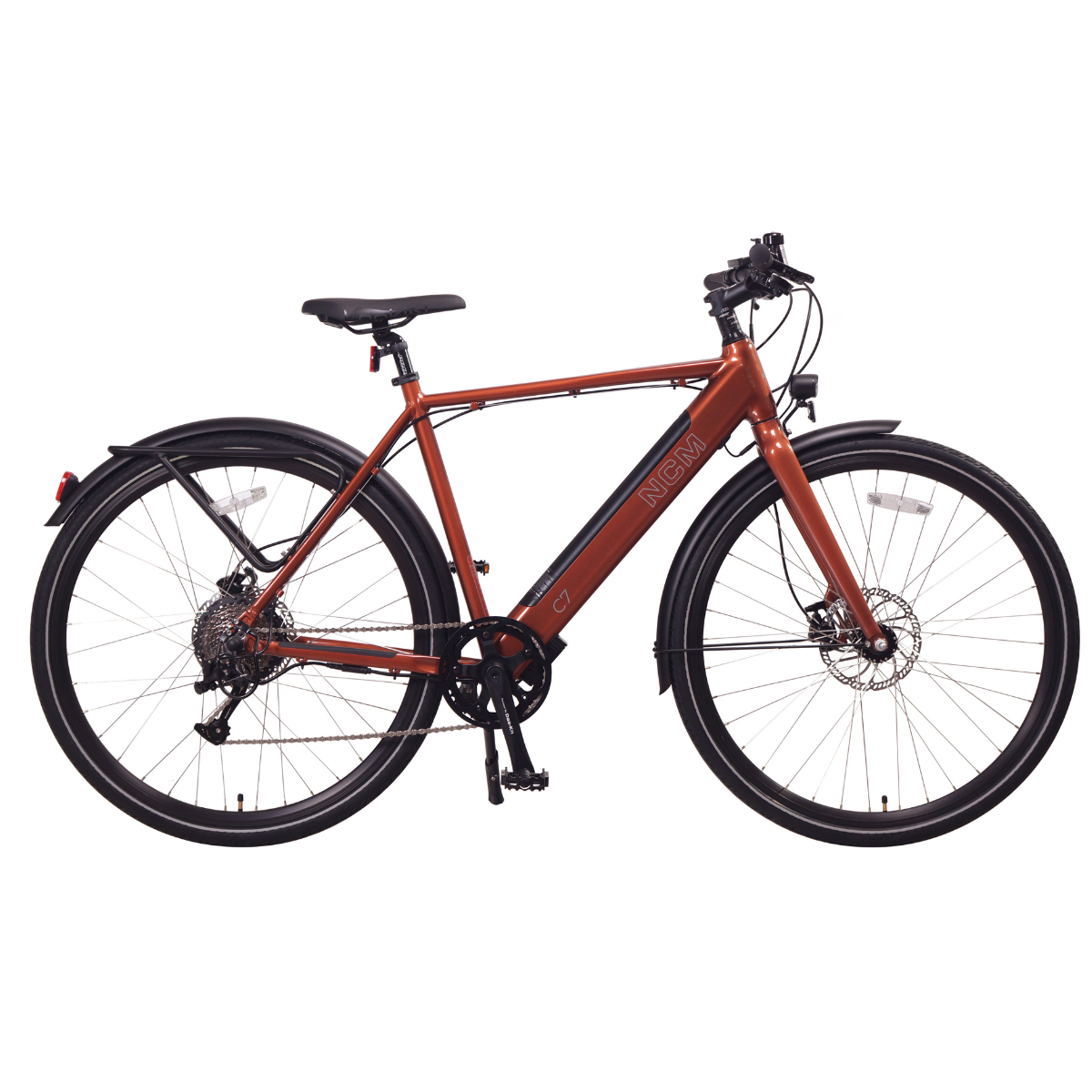

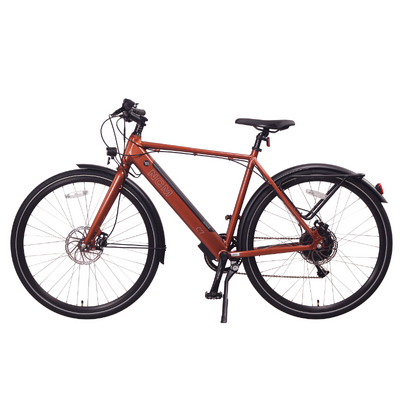

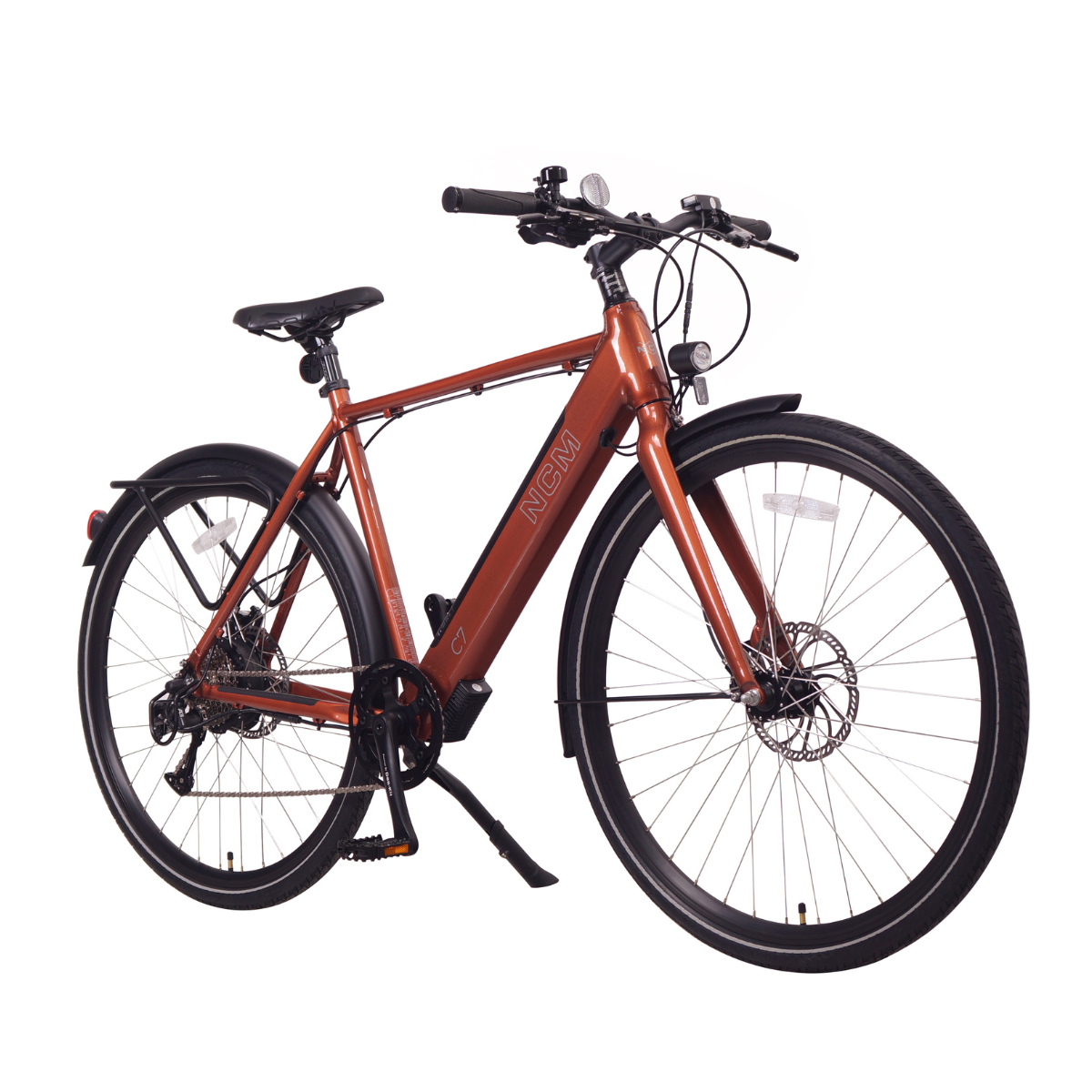

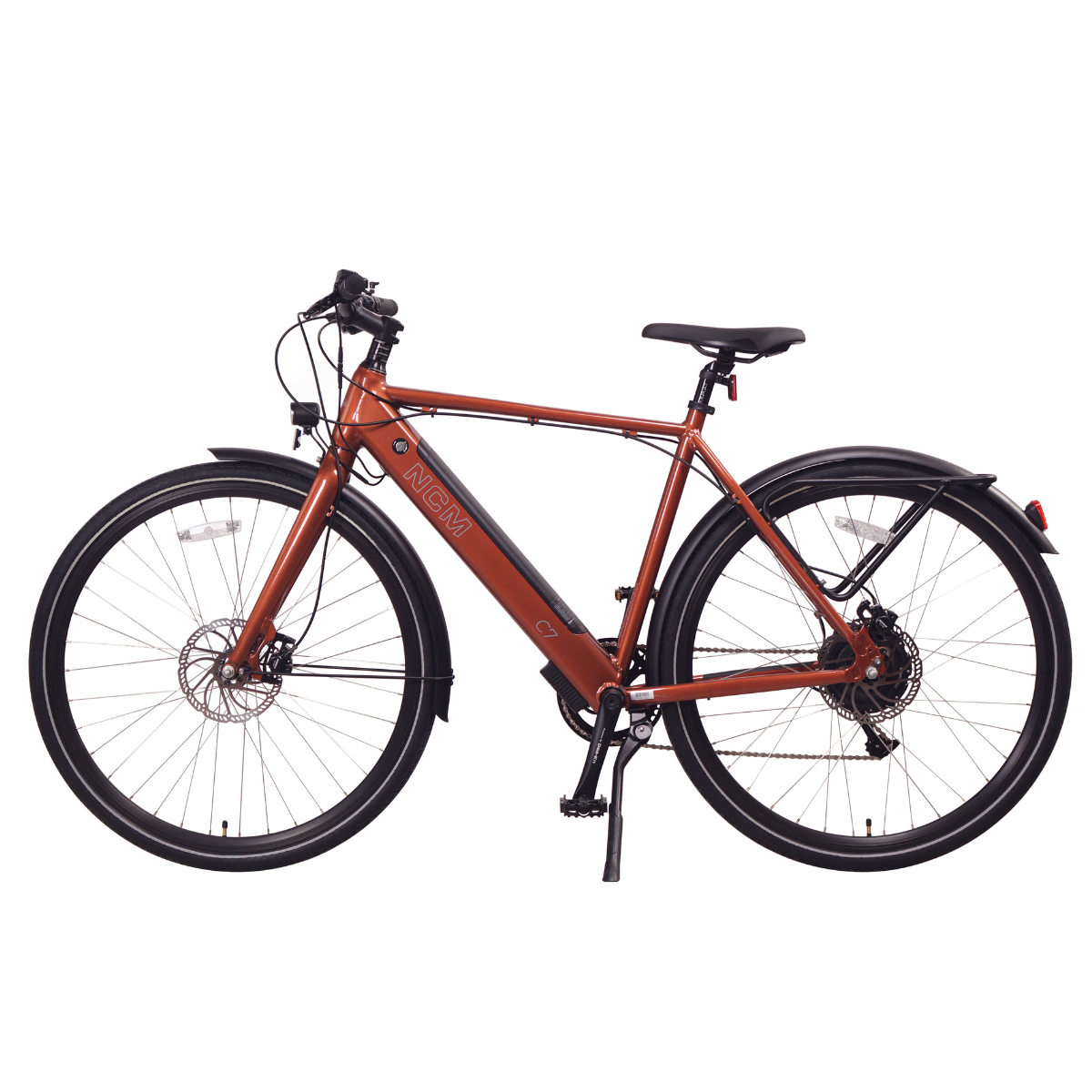

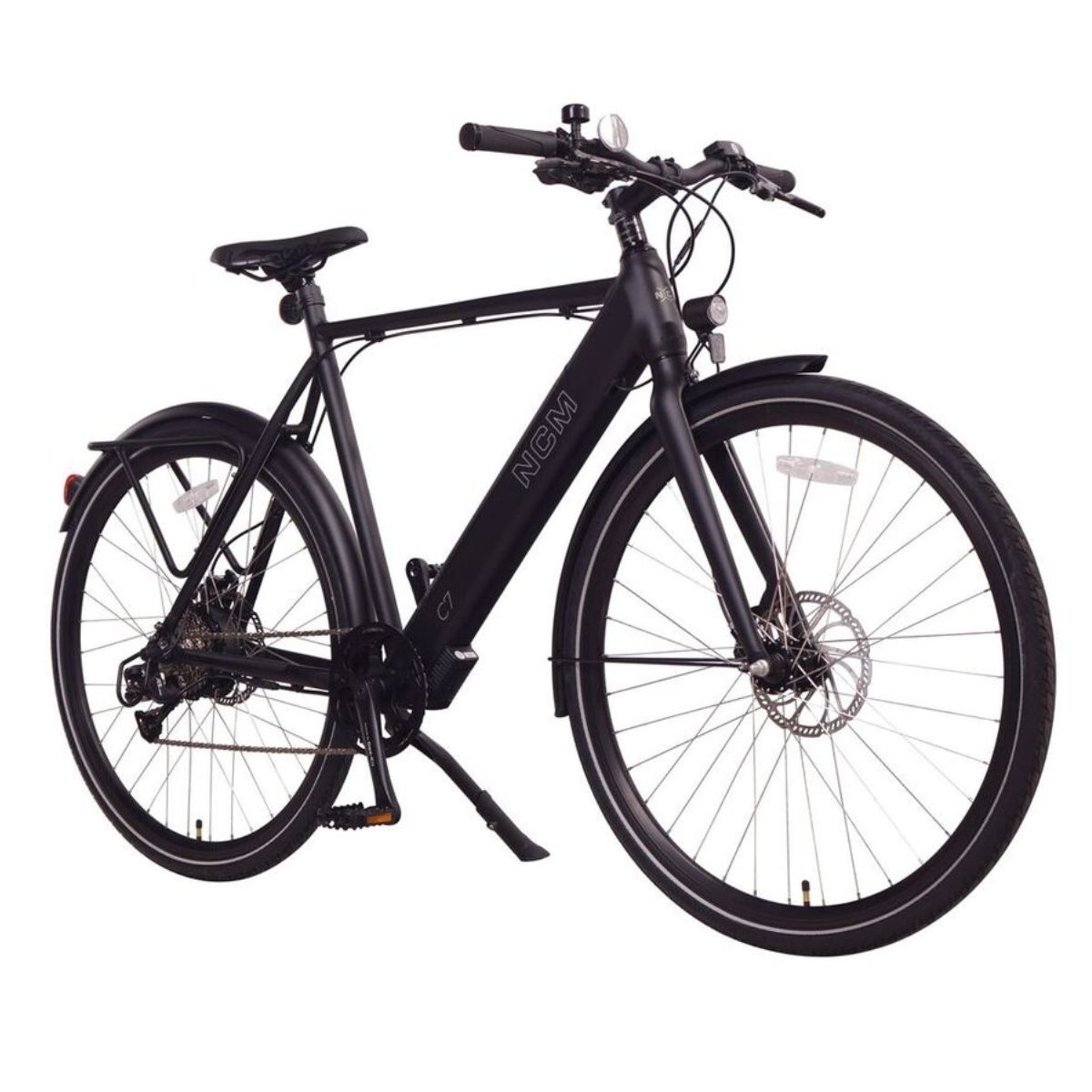

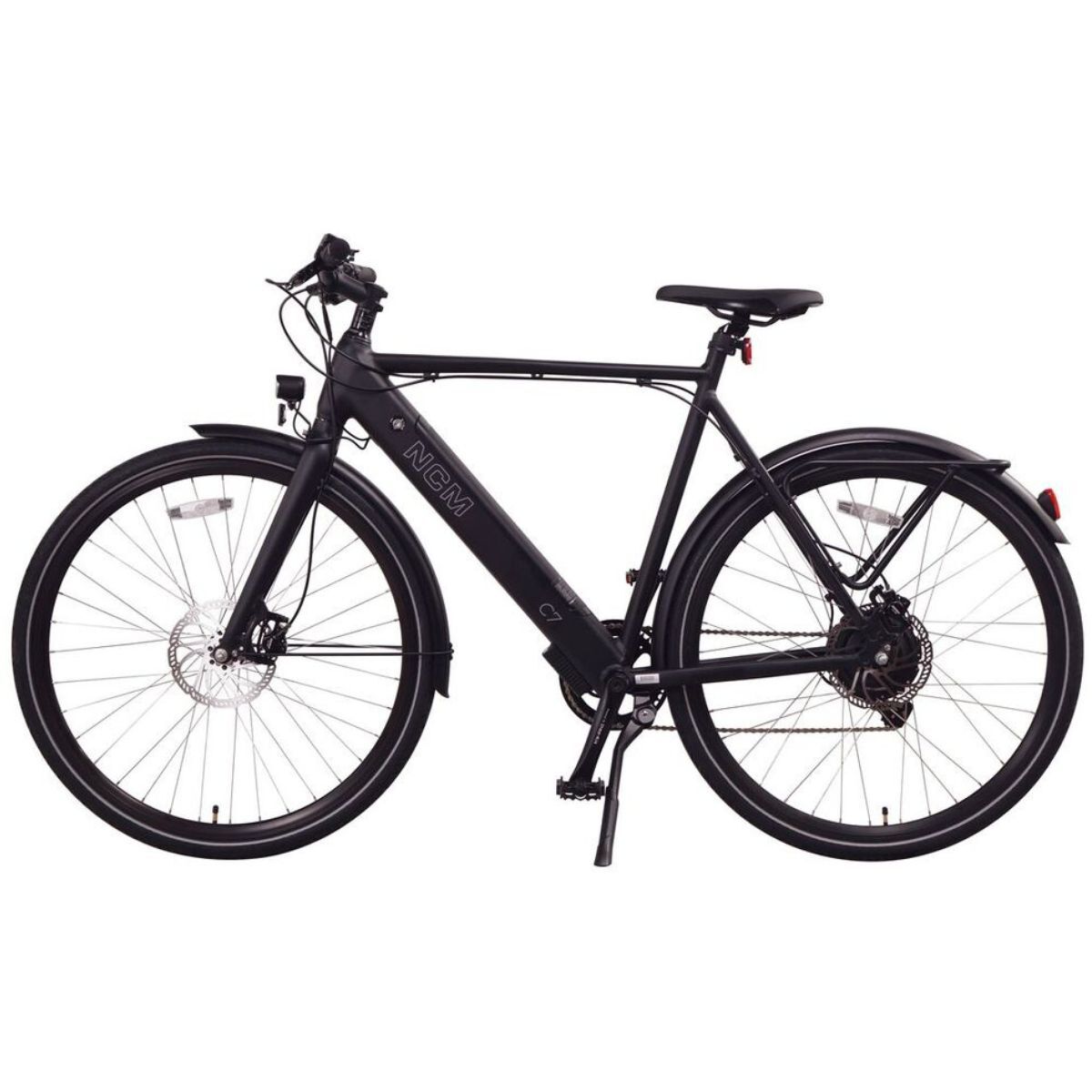

NCM C7

Introduction

Minimal Design, Maximal Performance. The NCM C7 is fully equipped E-bike for city commutes. Whether you are trying to get to work on time, while being sweat-free, or need to rush to your favourite place in style, the all new NCM C7 lets you cover your daily journeys with ease. This E-bike is designed with a tough aluminium frame and a strong rigid handlebar and saddle for improved ergonomics and performance. The high top tube makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road.

Key Features

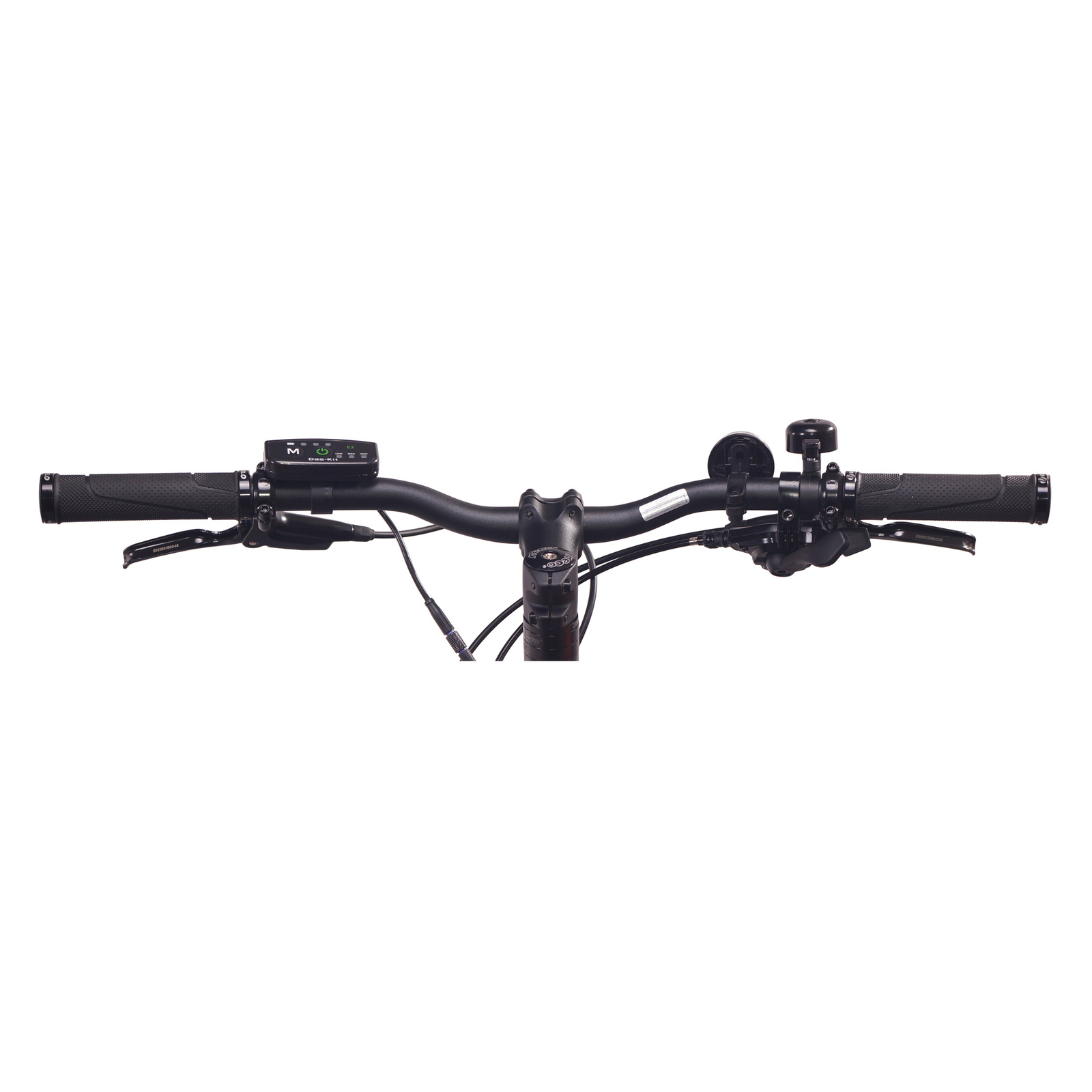

Ergonomic bicycle Grips
All important controls are easily accessible
Up to 350W Peak Motor Power
Integrated intelligent torque sensor technology
Supplied with 36V 504Wh to deliver a high-output power
Removable and lockable 36V 504Wh extra large battery capacity
Up to 120 km Battery Range (depending on the conditions)
Rear carriers integrated into the frame for a stylish pannier bag
CST, C-1953, 700*38c, Black tires

Intelligent Drive System

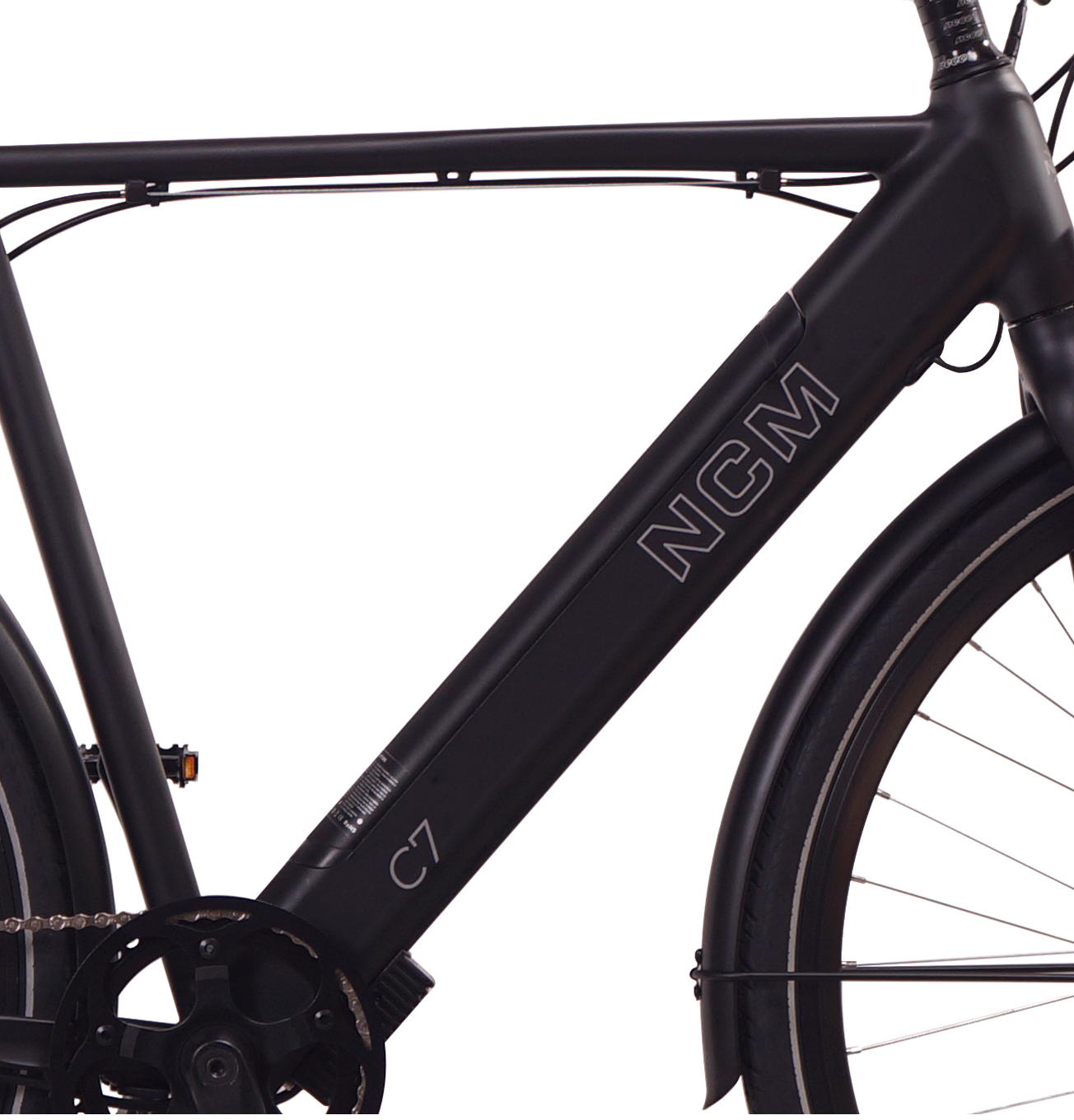

Removable Battery

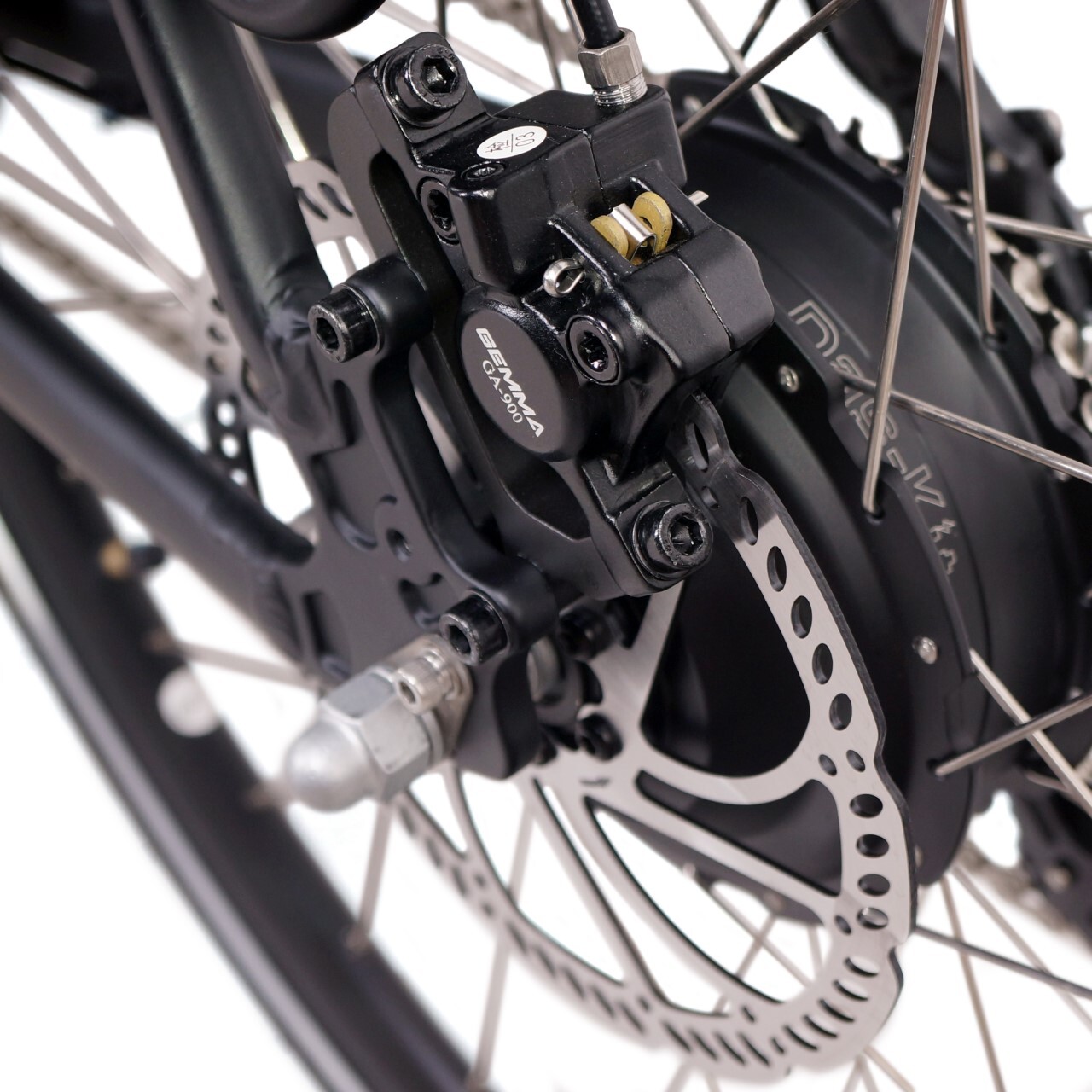

Hydraulic Brakes

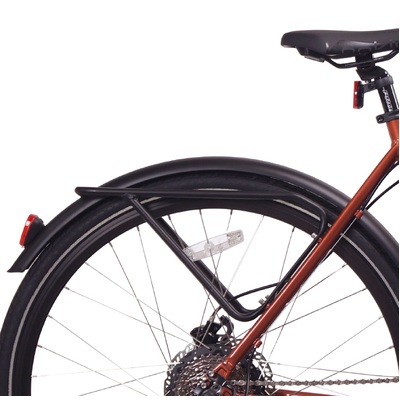

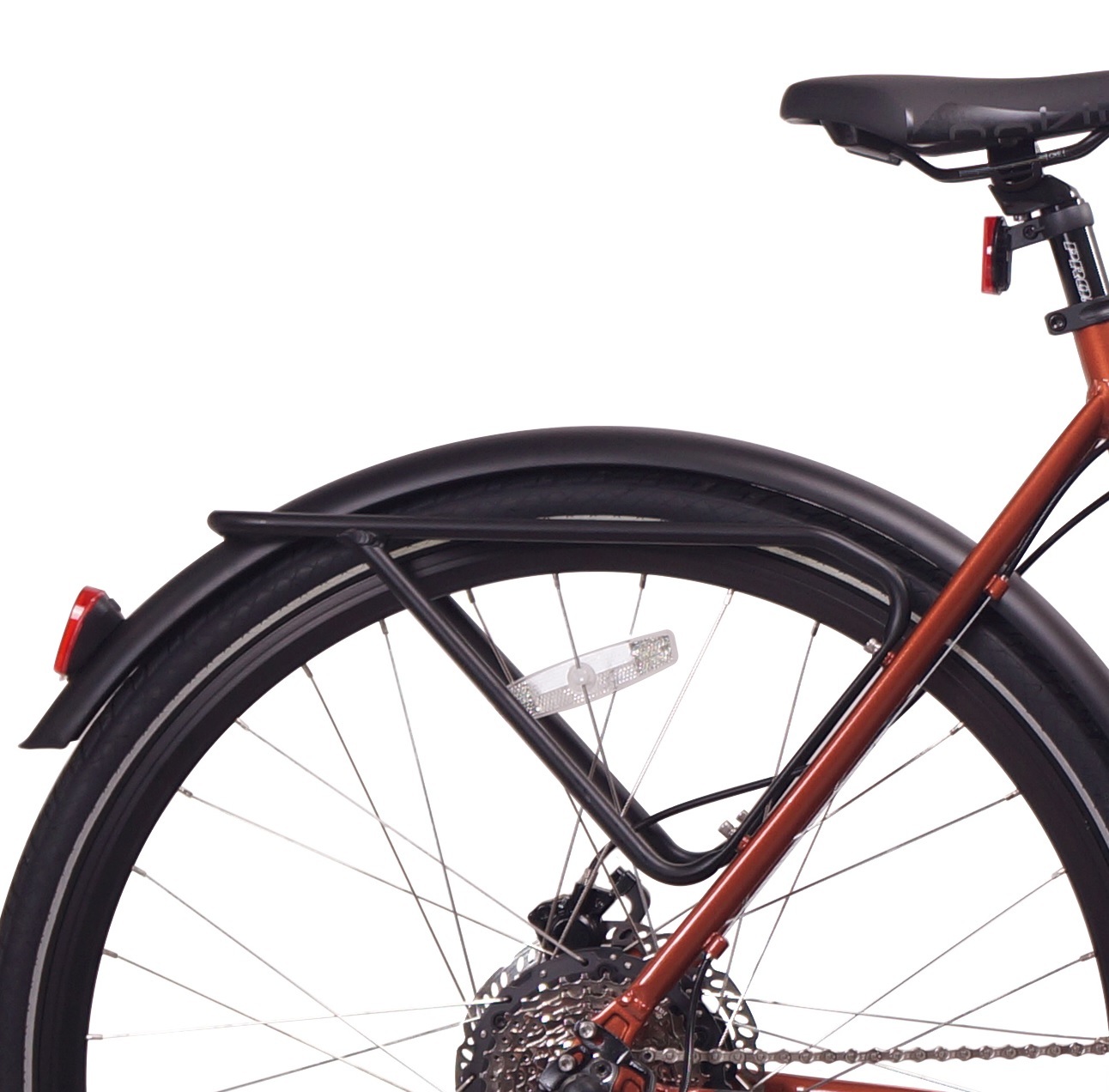

Custom-Made Rear Carrier

Specifications

	NCM C7 Medium	NCM C7 Large

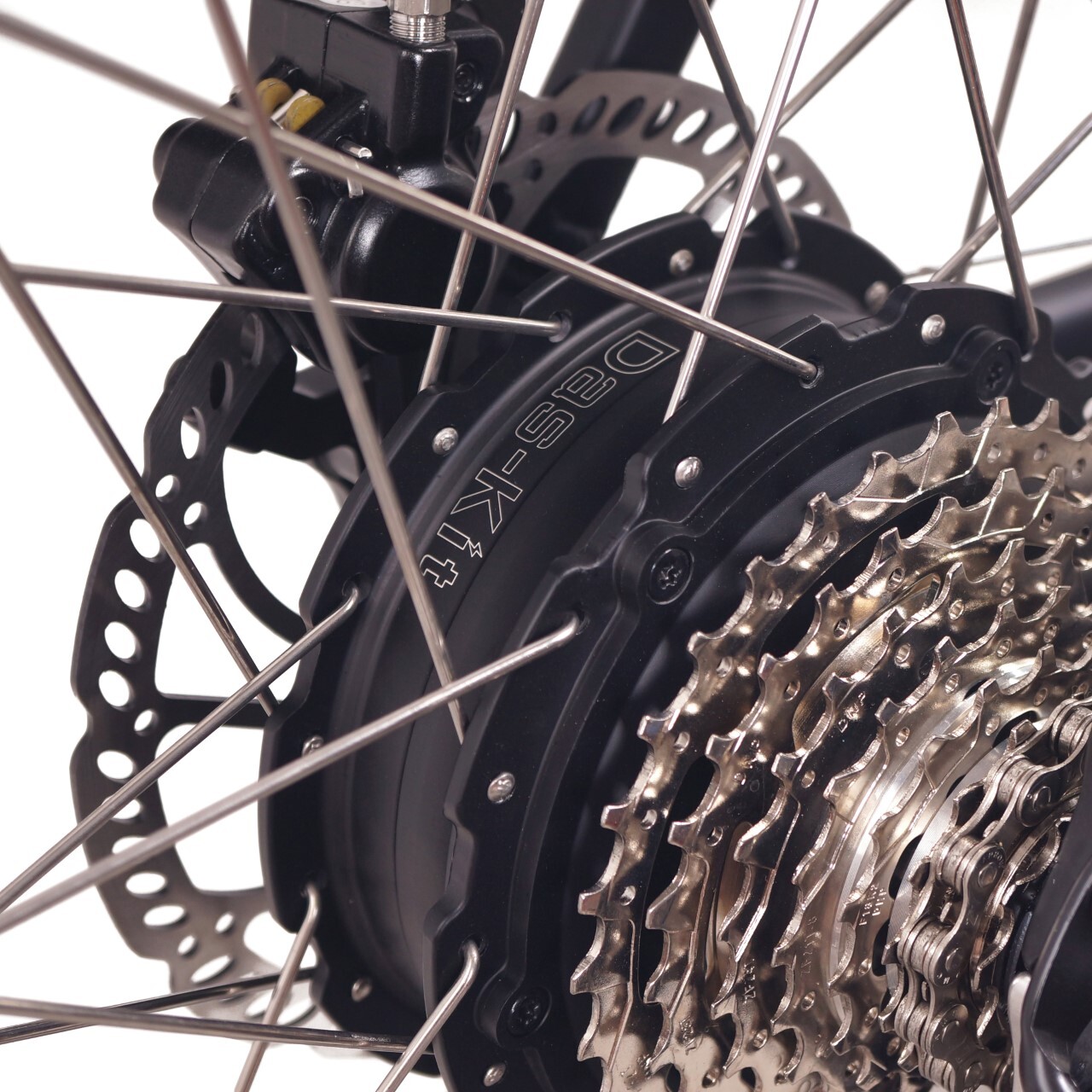

Motor	Das kit, X2, 36V 250W, 350W Peak Power, 25km/h	Das kit, X2, 36V 250W, 350W Peak Power, 25km/h
Battery	Das-Kit, I6s-3614, 504WH (Approvals: NSW REAS #CCS-250305-EA)	Das-Kit, I6s-3614, 504WH (Approvals: NSW REAS #CCS-250305-EA)
Display	Das-kit E2 Advanced, Display	Das-kit E2 Advanced, Display

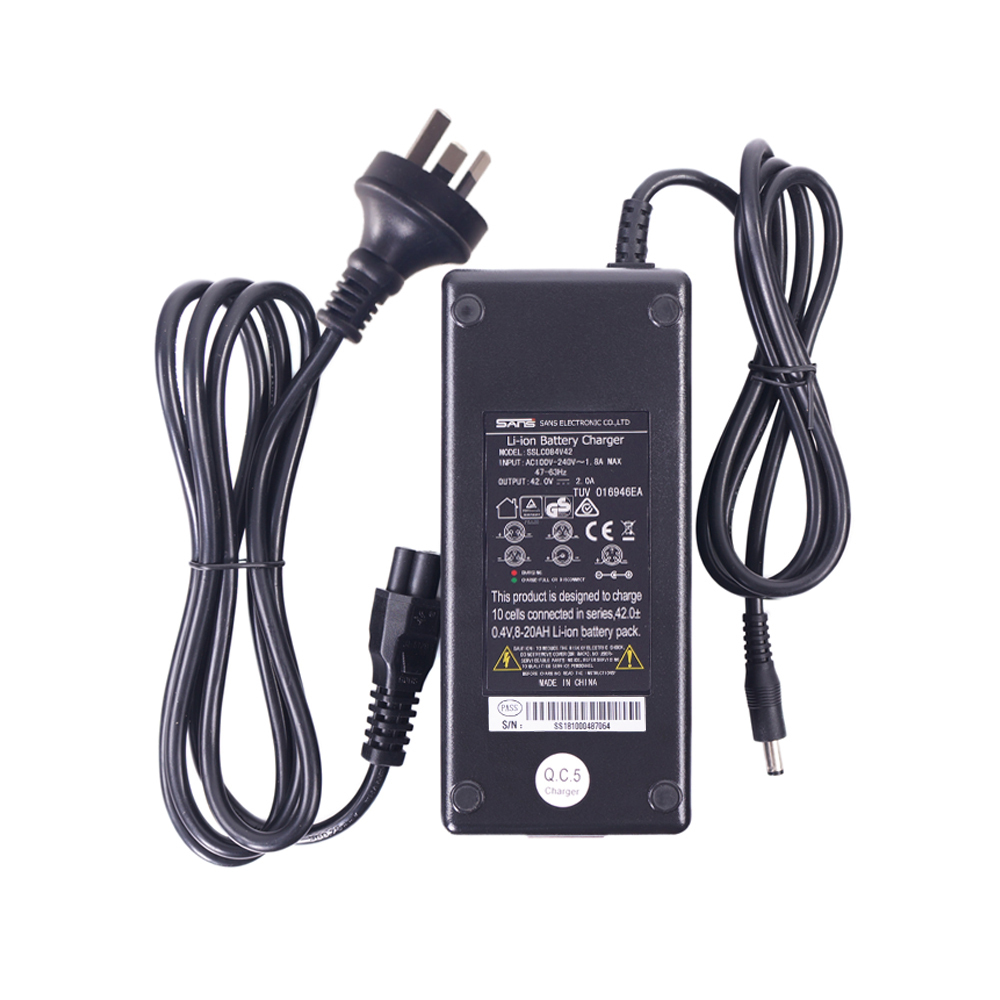

Charger	Das-Kit, DC363, 36V 2A (Approvals: ERAC, NSW REAS #TUV016946EA, TUV024478EA)	Das-Kit, DC363, 36V 2A (Approvals: ERAC, NSW REAS #TUV016946EA, TUV024478EA)
Frame	Alu. 6061, 520MM	Alu. 6061, 580MM
Forks	ZF, 5058-01, 27.5'', rigid fork, PM	ZF, 5058-01, 27.5'', rigid fork, PM
Braking System	Gemma Hydraulic Disc Brake GA-900	Gemma Hydraulic Disc Brake GA-900
Gear Selector	LT-8 Speed, BK	LT-8 Speed, BK
Rear derailleur	LT-8 Speed, BK	LT-8 Speed, BK
Saddle	Selle Royal A236URN	Selle Royal A236URN
Tyre	CST, C-1953, 700*38c, Black	CST, C-1953, 700*38c, Black
Handle Grips	VELO,VLG-776AD3 Black	VELO,VLG-776AD3 Black
Pedal	Wellgo，C280DU	Wellgo，C280DU
Range	Up to 120 km (Depending on road conditions and power settings)	Up to 120 km (Depending on road conditions and power settings)
Weight	22 kg	23 kg

Sizing Chart

Cm		A	B	C	D	E
		Stand Over Height	Wheel Base	Frame Height	Min/Max Seat Height	Reach
C7- Medium	160-180	80	106	52	89/108	56
C7 - Large	165-185	83	109	58	98/117	59

Warranty

Leon cycle provides 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
Leon cycle provides 2 year warranty on the bike frame. For more warranty information visit our FAQs.
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.

About NCM

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.

Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. For more information contact us on 0390695443. Visit our Youtube channel for Assembly and New Arrivals Videos. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

Our E-Bikes meet the following standards:

EPAC EN15194 (limited to 25km/h, 250W motor)
Chargers registered with Australian ERAC as approved for use in AU
Batteries meet international standards IEC 62133-2:2017 (inc battery management)

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

1 x NCM C7
1 x 36V charger
1 x tool kit

(P-C7)

SKU	P-C7
Brand	NCM
Shipping Weight	28.0000kg
Shipping Width	0.260m
Shipping Height	0.770m
Shipping Length	1.400m
Shipping Cubic	0.280280000m3
