NCM T3s

Introduction

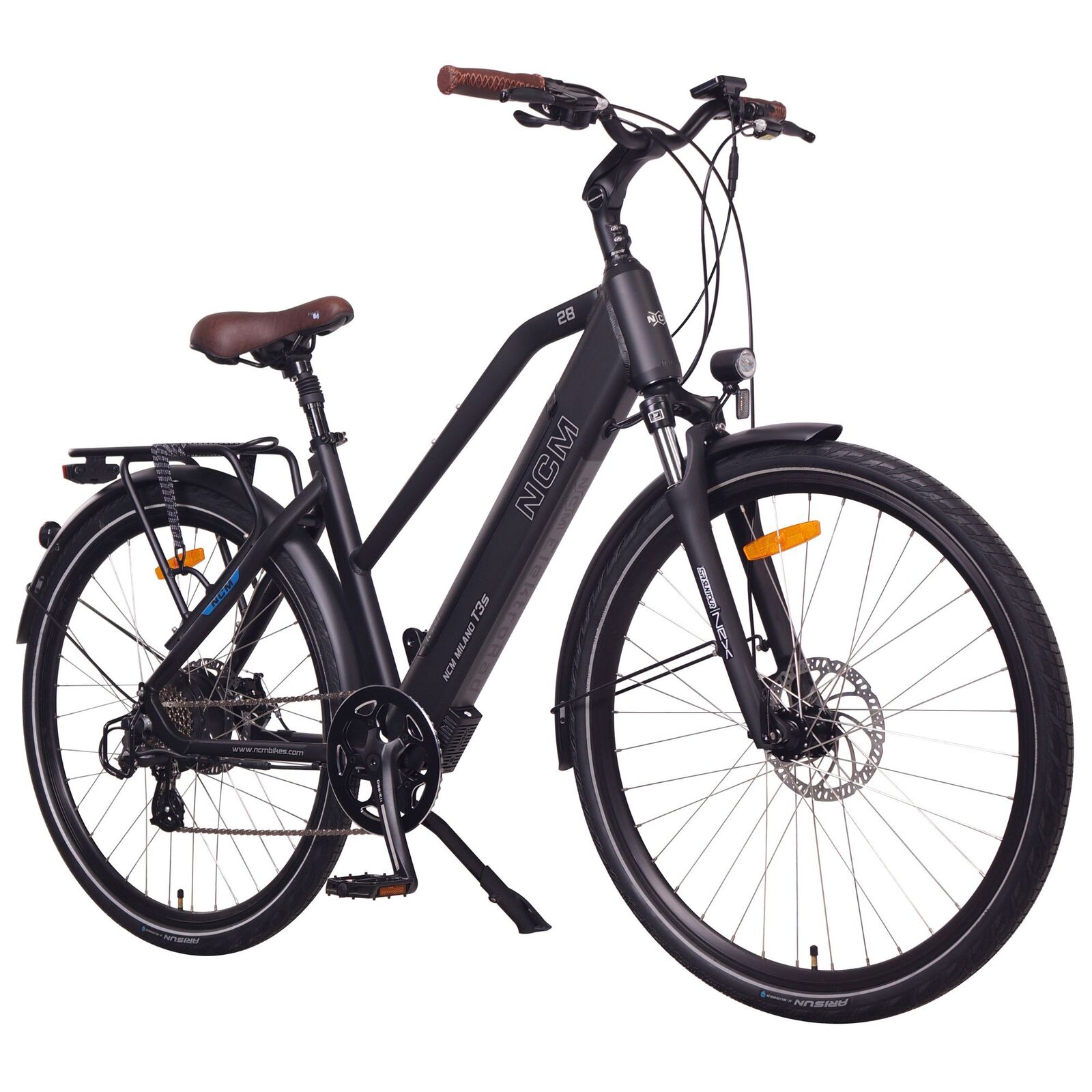

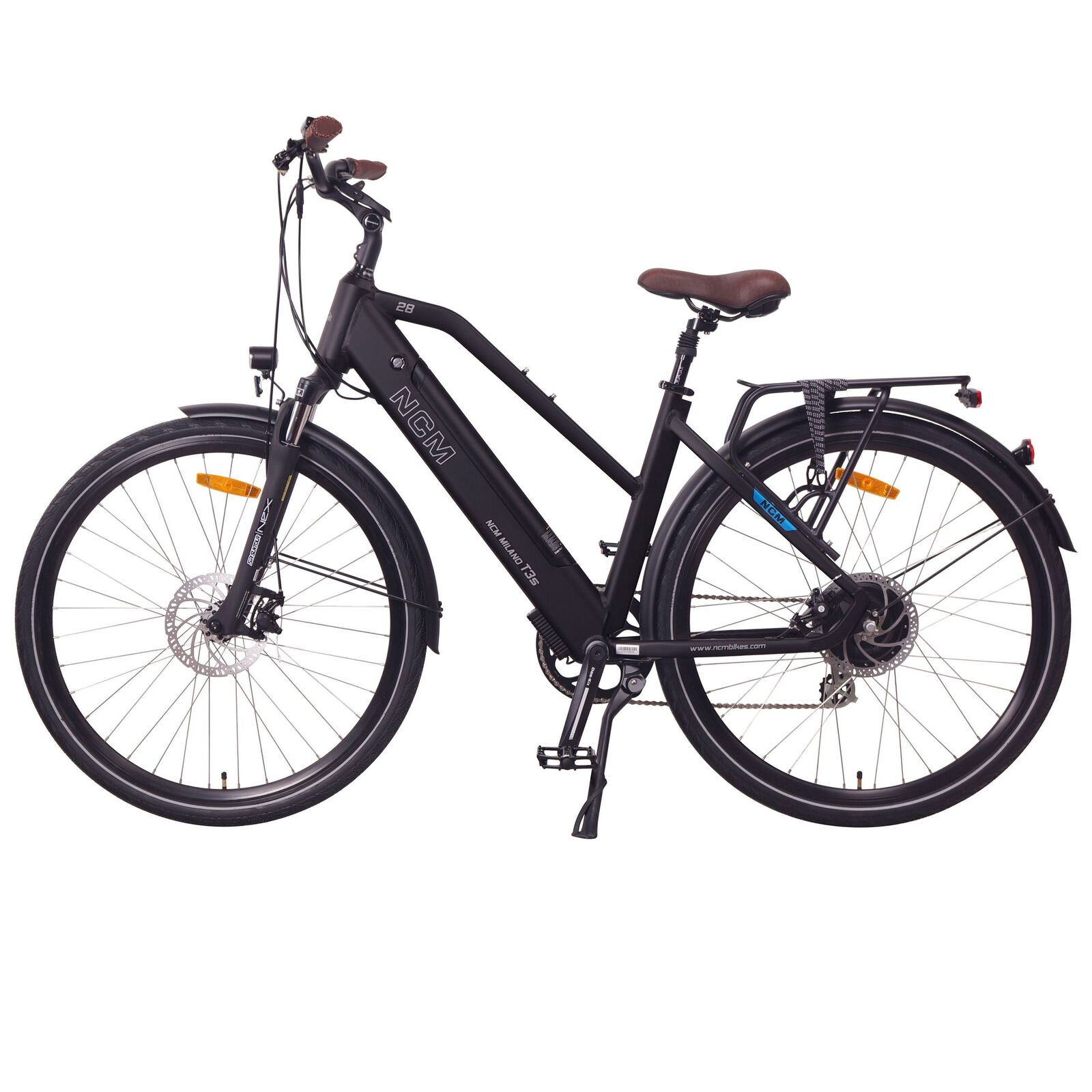

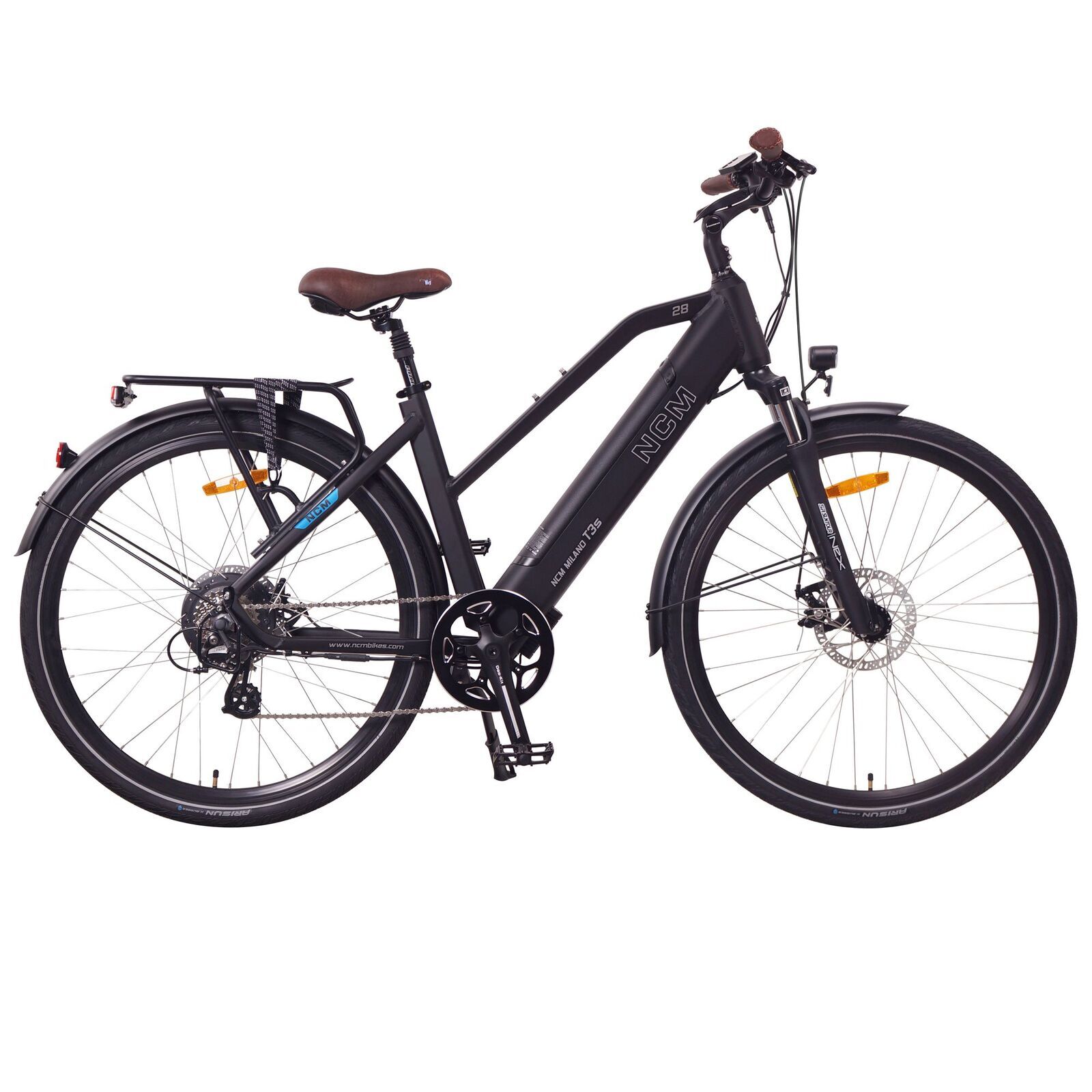

The new NCM T3S is the brand new generation of the NCM brand. Successor to the flagship NCM Milano, it features new reinforced fully integrated and removable battery in the frame, a sleek new design, improved ergonomics and versatility ready to tackle any journey, short or long. The T3S offers more comfort and control than ever before and guarantees a pleasant ride thanks to an upright seating position, a low through frame and optimized ergonomics with adjustable handlebars and a gel-padded saddle.

Key Features

Ergonomic bicycle Grips
Comfortable sitting posture
All important controls easily accessible
Supplied with 48V to deliver a high output power
Up to 500W Peak Motor Power
Over 576Wh capacity for a longer distance
Up to 120 km Battery Range (depending on the conditions)
Easily removable battery so you can charge it anywhere

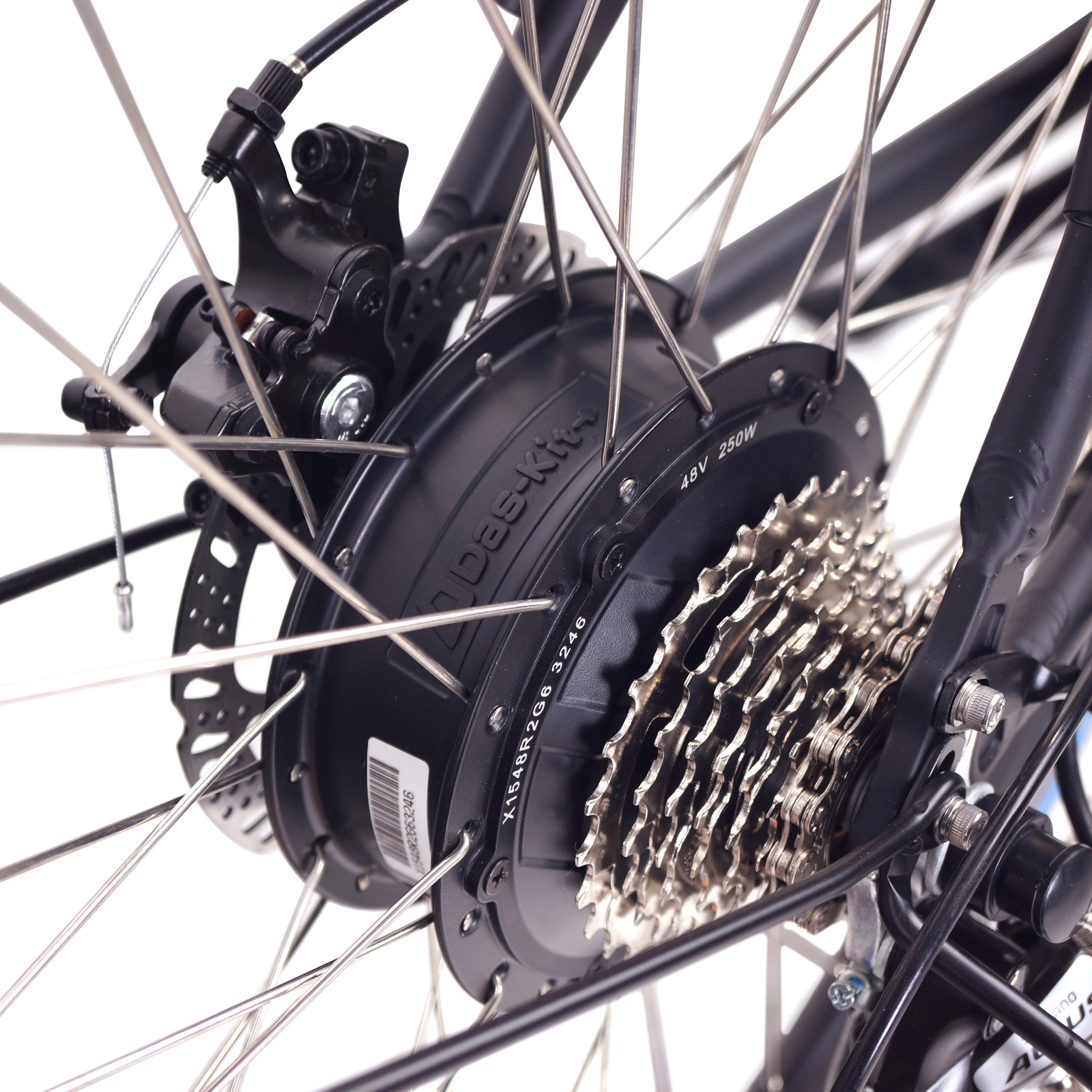

Das-Kit 250W-500W Motor

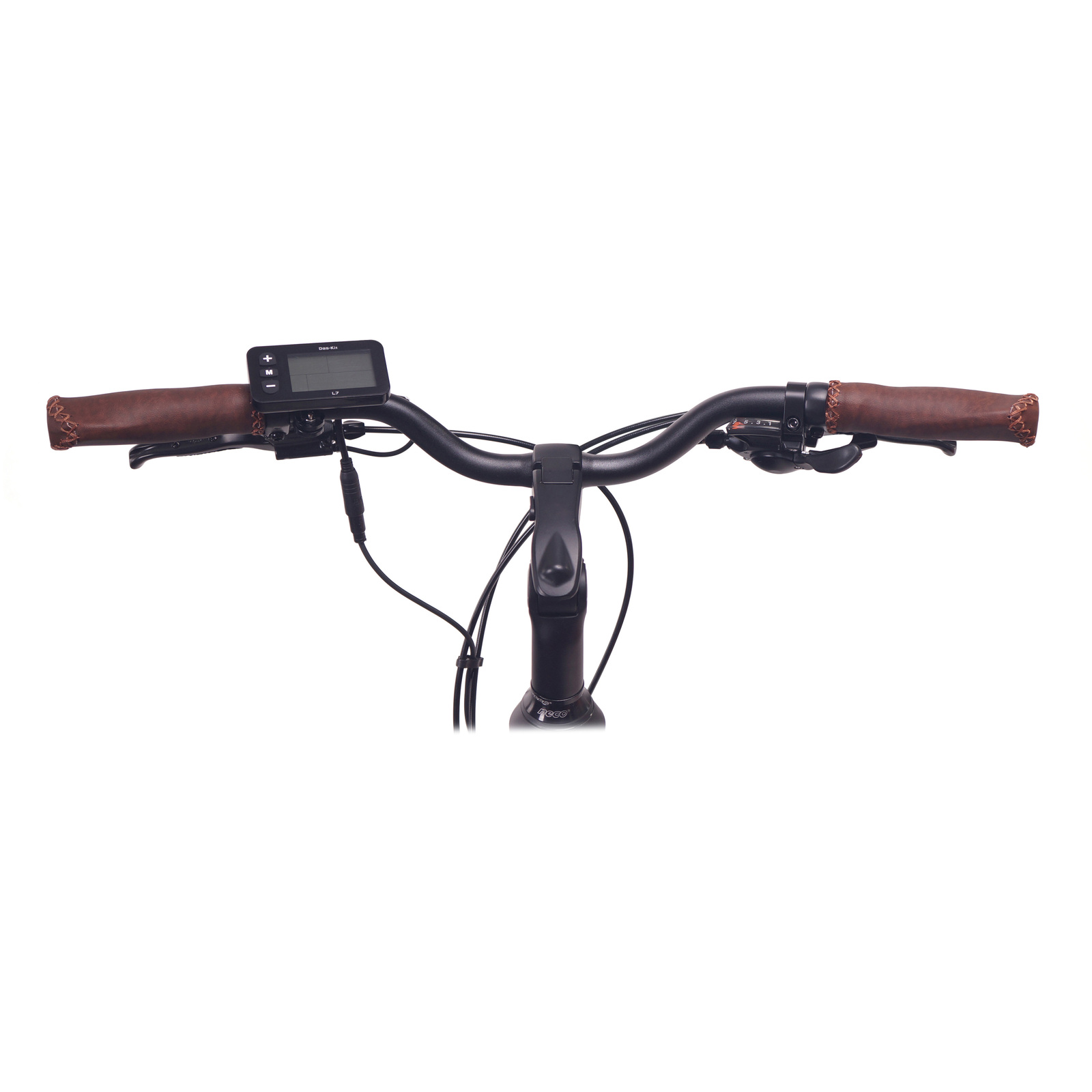

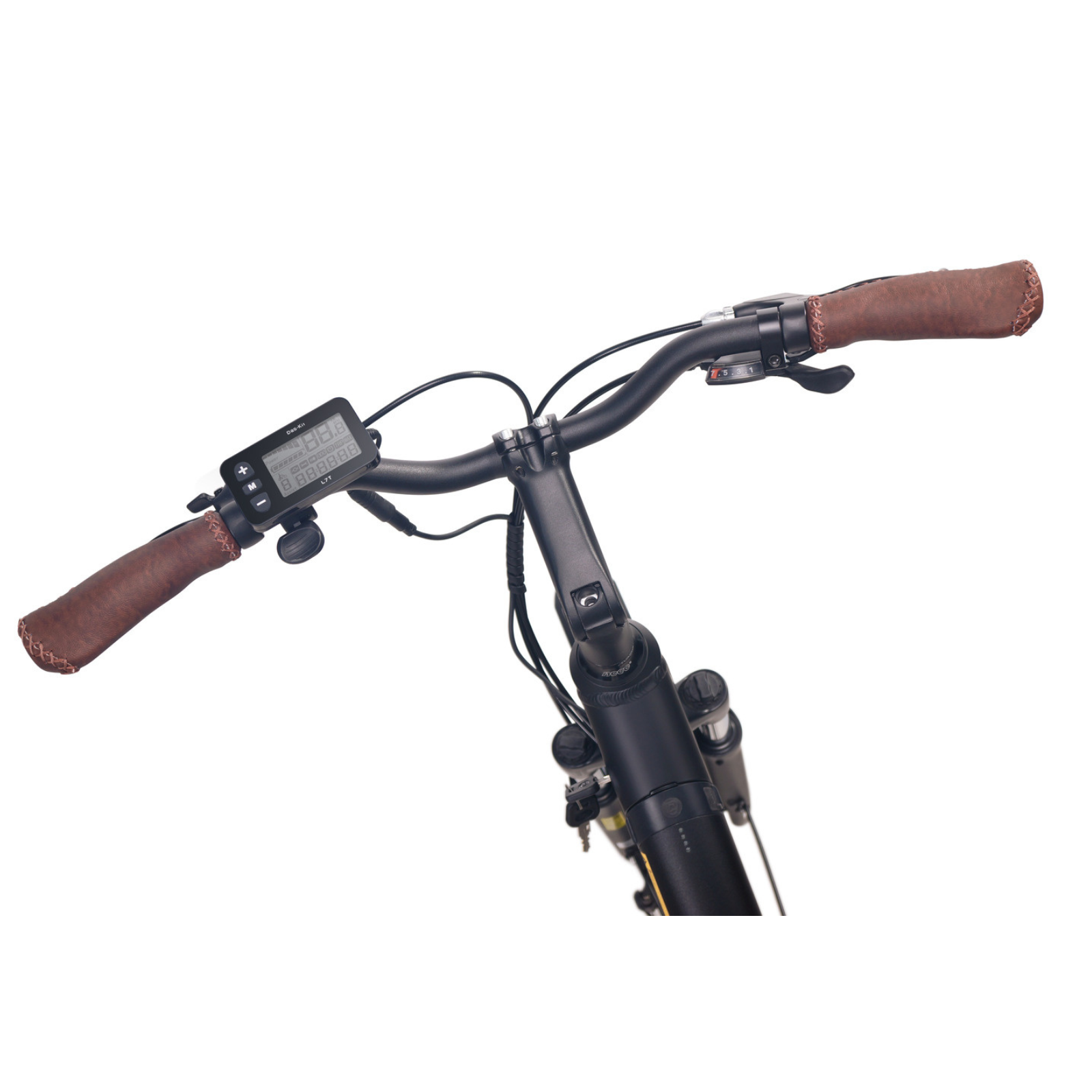

Das-Kit L7 Display

Integrated Battery

Arisun Tyres

Specifications

	NCM T3S	NCM Milano	NCM Milano +
Motor	Das-Kit X15 motor, 48V 250W, 500W Peak Power, max speed 25 km/h	Das-Kit X15 motor, 48V 250W, 500W Peak Power, max speed 25 km/h	Das-Kit X15 motor, 48V 250W, 500W Peak Power, max speed 25 km/h
Battery	Das-Kit i6-4812, 576Wh, 48V 12Ah	DEHAWK i5-4813H, 624Wh, 48v 13Ah, with USB Port	DEHAWK i5-4816P, 768Wh, 48v 16Ah, Panasonic, with USB Port
Display	Das-Kit L7, LCD Display	Das-Kit L7, LCD Display	Das-Kit C7, LCD Display

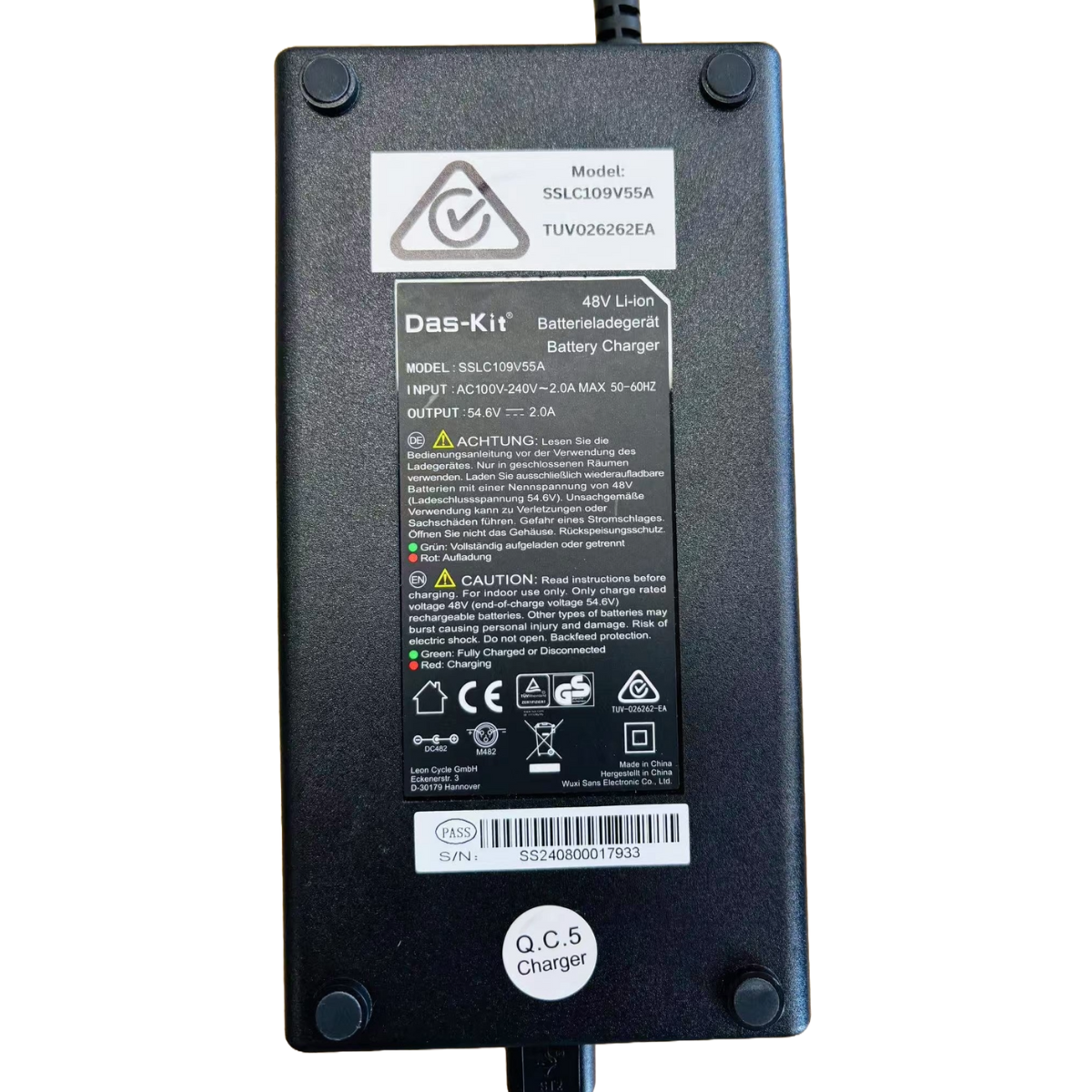

Charger	Das-Kit, 48V 2A	DC483DE 48V 2A	DC483DE 48V 2A
Frame	Alu. 6061, 430MM	Alu. 6061, 457/480MM	Alu. 6061, 457/480MM
Forks	SUNTOUR NEX 26	SUNTOUR NEX 63mm	SUNTOUR NEX 63mm

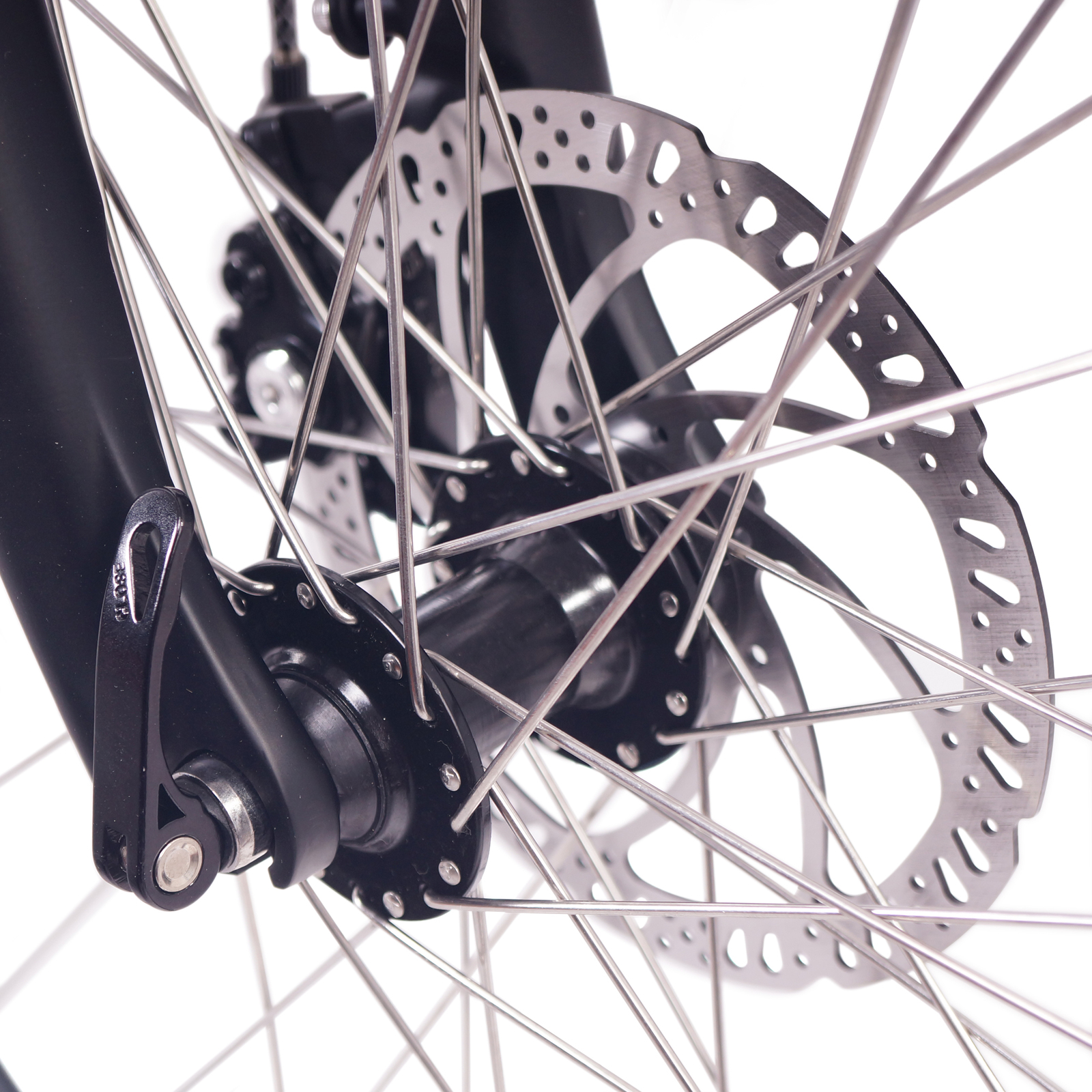

Braking System	Tektro Mechanical Disc	Tektro Mechanical Disc	Tektro Hydraulic Disc

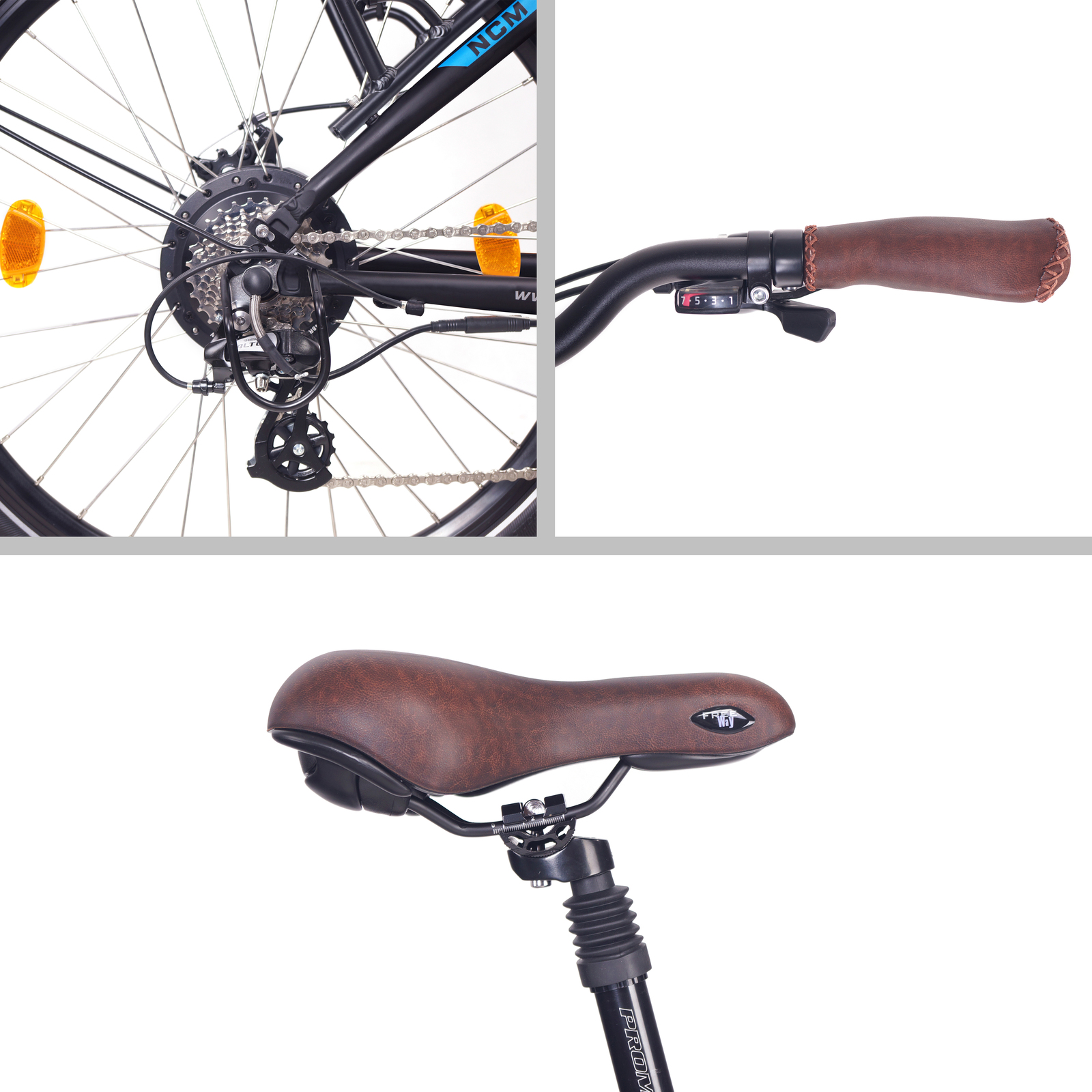

Gear Selector	Shimano Altus M310, 7 speed	Shimano Altus M310, 7 speed	Shimano Acere M360, 8 speed
Front Derailleur	N/A	N/A	N/A
Rear derailleur	Shimano Altus M310, 7 speed	Shimano Altus M310, 7 speed	Shimano Acere M360, 8 speed

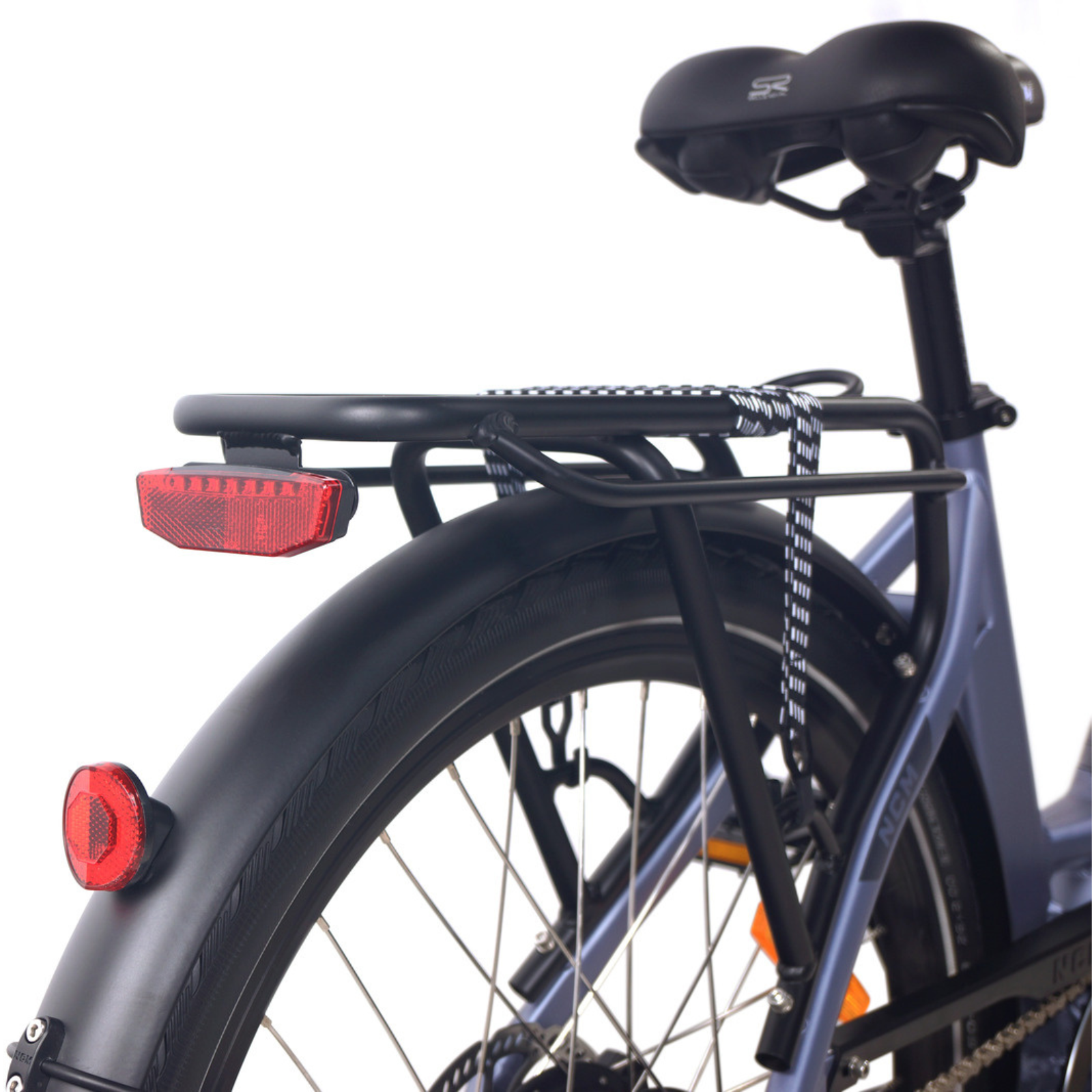

Saddle	Selle Royal, Freeway, Brown	Selle Royal Gel Saddle, Brown	Selle Royal Gel Saddle, Brown
Tyre	CST / Arisun, H-5213E, 26 x 1.95	CST / Shwalbe Marathon, 26×1.75 28×1.5	CST / Shwalbe Marathon, 26×1.75 28×1.5
Handle Grips	Selle Royal, JF510, Brown	Velo, Brown Leather	Velo, Brown Leather
Pedal	Wellgo, B087	Wellgo, B087	Wellgo, B087
Range	Upto 120 km	Upto 120 km	Upto 150 km
Weight	26 kg	27 kg	27 kg

Sizing Chart

cm		A	B	C	D	E	F
		Stand Over Height	Wheel Base	Frame Size	Min / Max Seat Height	Reach	Overall Length
T3S 26"	160-188	78	104	51	88/108	39	174
T3S 28"	170-198	80	105	56	91/112	39	175

Warranty

1-year warranty on all electronic parts (including battery, motor, controller, display, lights)
2-year warranty on the bike frame. For more warranty information visit our FAQS.
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.

About NCM

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.

Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. For more information contact us on 0390695443. Visit our Youtube channel for Assembly and New Arrivals Videos. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

Our E-Bikes meet the following standards:

EPAC EN15194 (limited to 25km/h, 250W motor)
Chargers registered with Australian ERAC as approved for use in AU
Batteries meet international standards IEC 62133-2:2017 (inc battery management)

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

1 x T3S E-bike
1 x DC483DE 48v charger
1 x tool kit

(P-MILANO-T3)

SKU	P-MILANO-T3
Brand	NCM
Shipping Weight	34.0000kg
Shipping Width	0.230m
Shipping Height	0.980m
Shipping Length	1.750m
Shipping Cubic	0.394450000m3
Unit Of Measure	ea
