NCM Hamburg

Introduction

With precision German design the NCM Hamburg is engineered to cope with the cobbled stones and rough weather of the harshest northern European Cities. This E-bike is designed with a tough aluminium frame, and an adjustable handlebar/stem setup with a sprung seat post for improved comfort. The low top tube, makes the bike sturdy and strong yet comfortable and easy to mount.

Key Features

Ergonomic bicycle Grips
Comfortable sitting posture
All important controls easily accessible
Supplied with 36V to deliver a high output power
over 468Wh capacity for a longer distance
reach up to 70 km (depending on the conditions)
easily removable battery so you can charge it anywhere

Bafang 250W Motor

Das-Kit L6 Display

36V battery with USB

Schwalbe Tires

Specifications

	Hamburg
Motor	Bafang 36V 250W, max speed 25 km/h

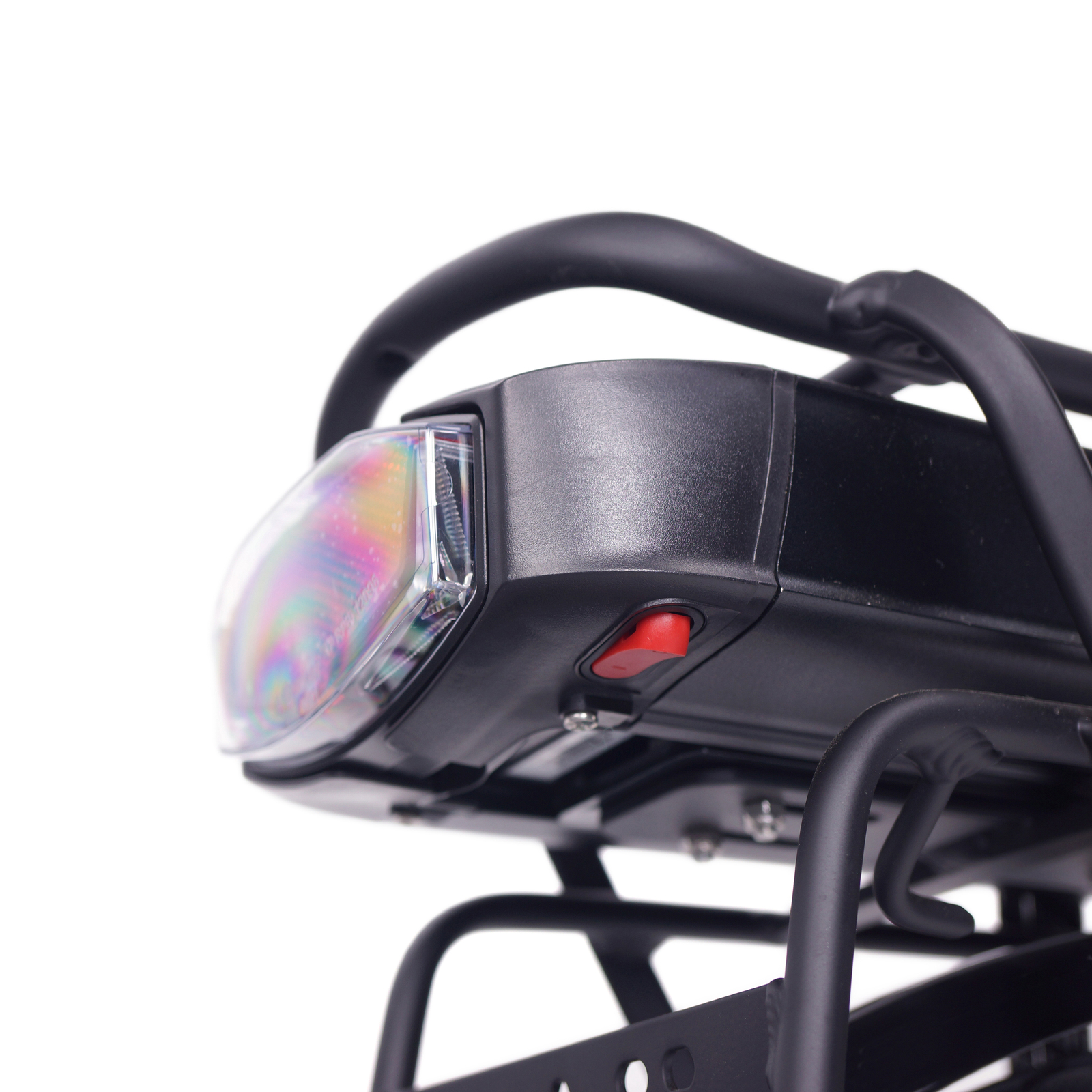

Battery	DEHAWK Carrier mounted, 36V 13Ah, 468Wh with USB Port
Display	Das-Kit L6, LCD Display
Charger	DC362DE 36V 2A
Frame	Alu. 6061, 480MM
Forks	ZOOM 187D
Braking System	Tektro Mechanical Disc
Gear Selector	Shimano Tourney 7 speed
Front Derailleur	N/A
Rear derailleur	Shimano Tourney 7 speed
Saddle	Selle Royal Freeway
Tyre	Shwalbe Marathon, 28×1.5
Handle Grips	Velo, Brown Leather
Pedal	Wellgo, B087
Range	Upto 70 km
Weight	28 kg

Sizing Chart

		A	B	C	D	E	F
		Stand Over Height	Wheel Base	Frame Size	Min / Max Seat Height	Reach	Overall Length
Hamburg	175-190cm	760 mm	1080 mm	480 mm	915/1040 mm	510 mm	180 mm

1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
2 year warranty on the bike frame. For more warranty information visit our FAQS.
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.

About NCM

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.

Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. For more information contact us on 0390695443. Visit our Youtube channel for Assembly and New Arrivals Videos. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

1 x NCM Moscow e-bike
1 x DC483DE 48v charger
1 x tool kit

(P-HAMBURG)

SKU	P-HAMBURG
Brand	NCM
Shipping Weight	36.0000kg
Shipping Width	0.230m
Shipping Height	0.970m
Shipping Length	1.880m
Shipping Cubic	0.419428000m3
