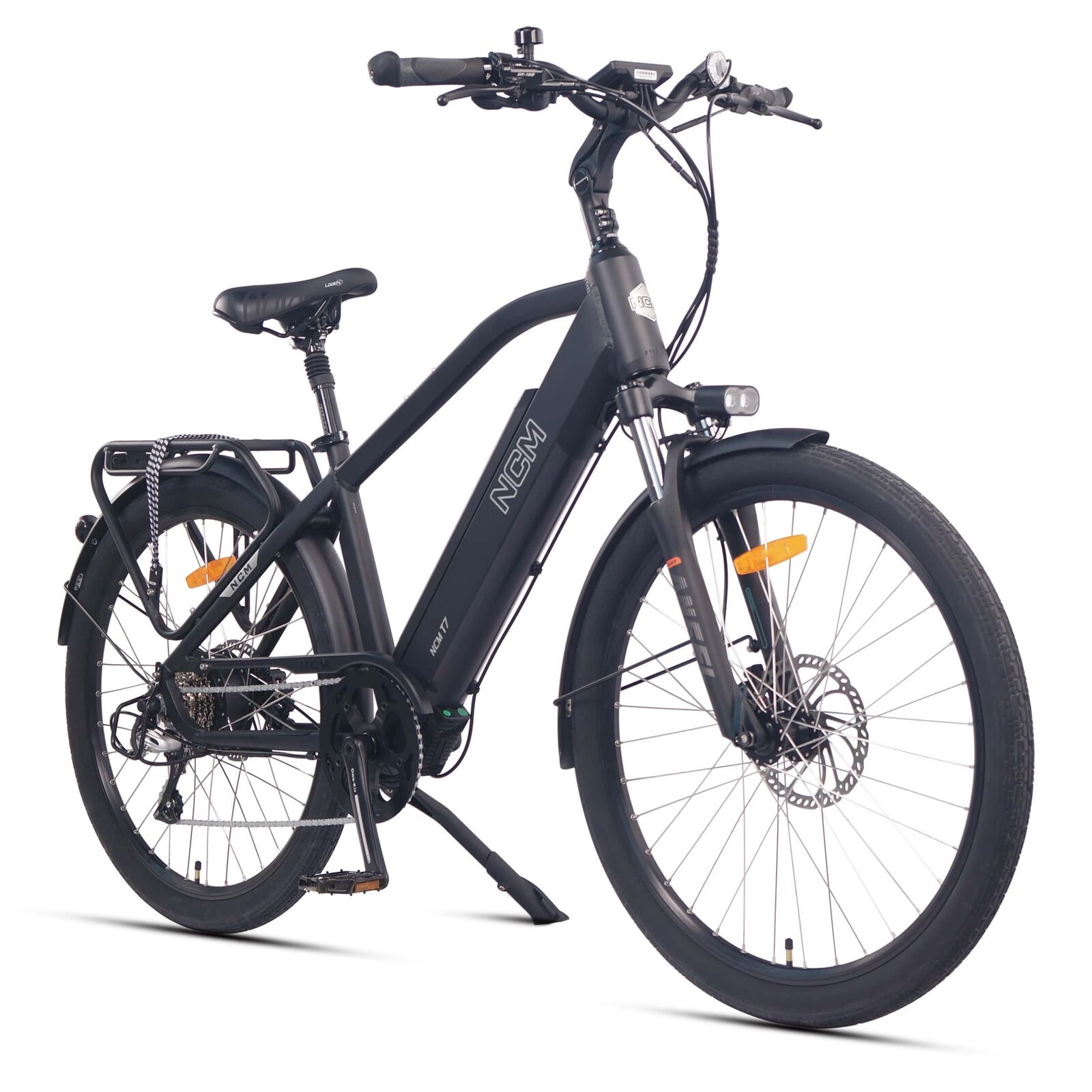

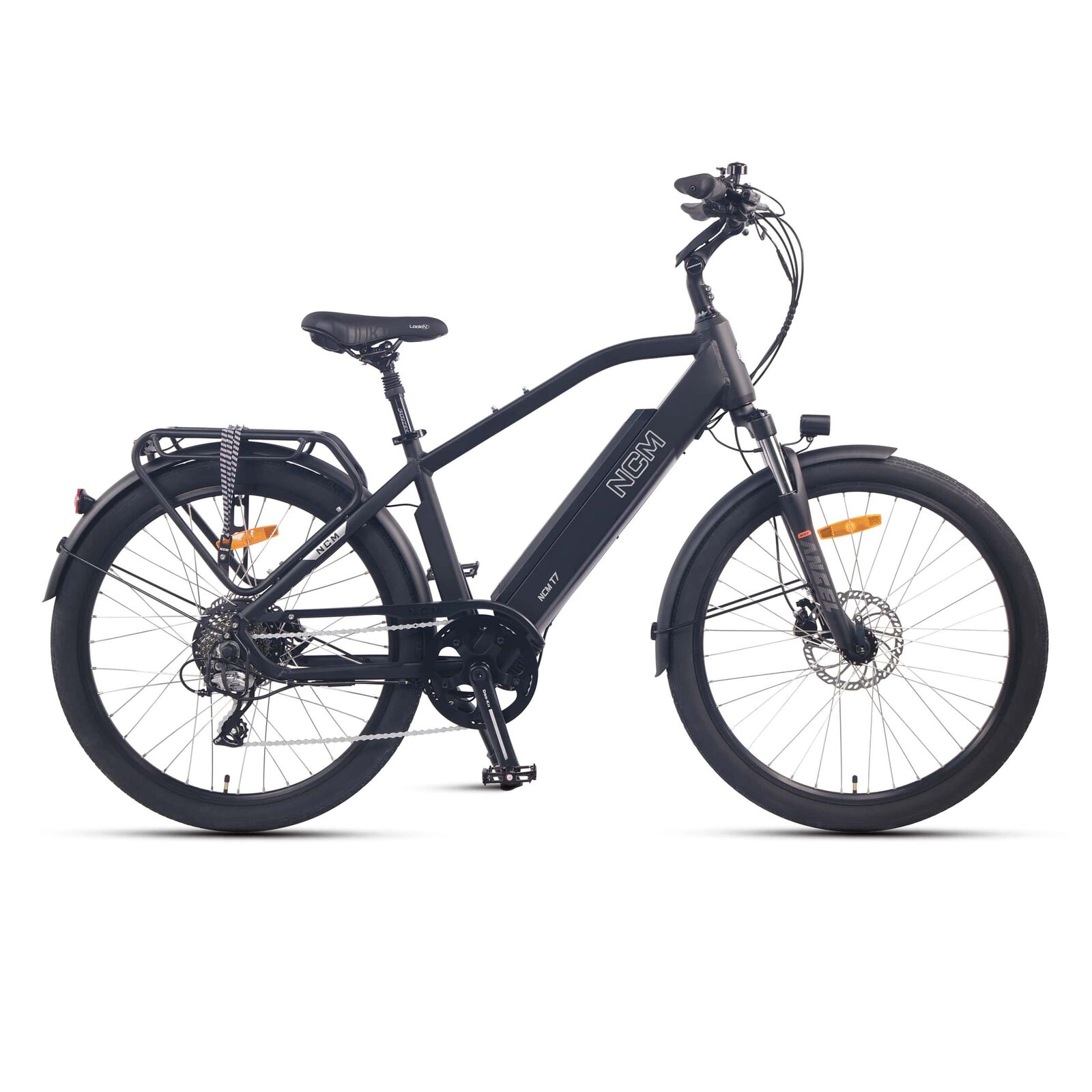

NCM T7


Introduction

Balancing accessibility with superior specifications, the NCM T7 is an e-trekking bike for riders who are eager to tackle longer routes alongside their daily rides and want an e-bike with the range and the integrity to help them do it.

Key Features

  • Ergonomic bicycle Grips
  • Comfortable sitting posture
  • All important controls are easily accessible
  • Supplied with 48V to deliver a high-output power
  • Up to 500W Peak Motor Power
  • Over 912Wh capacity for a longer distance

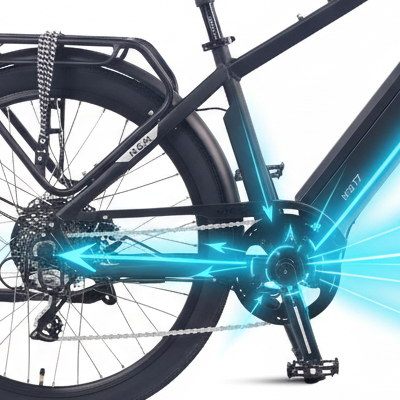

  • Equipped with an Intelligent Torque sensor
  • Built-in GPS (Battery Tag Technology)
  • Up to 180 km Battery Range(depending on the conditions)
  • Easily removable battery so you can charge it anywhere
  • A built-in USB port with 5V to charge mobile phones

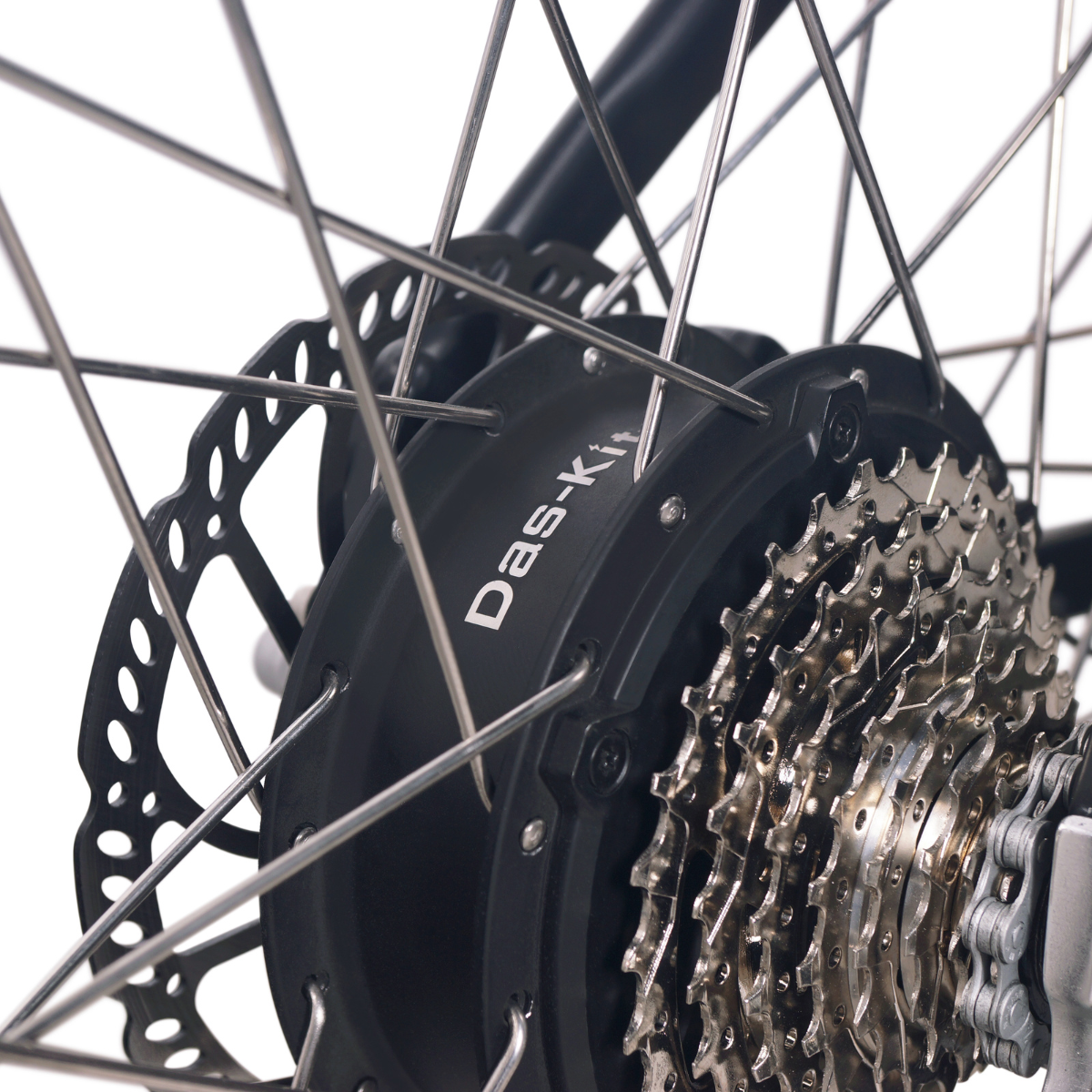

Das-Kit 250W-500W Motor

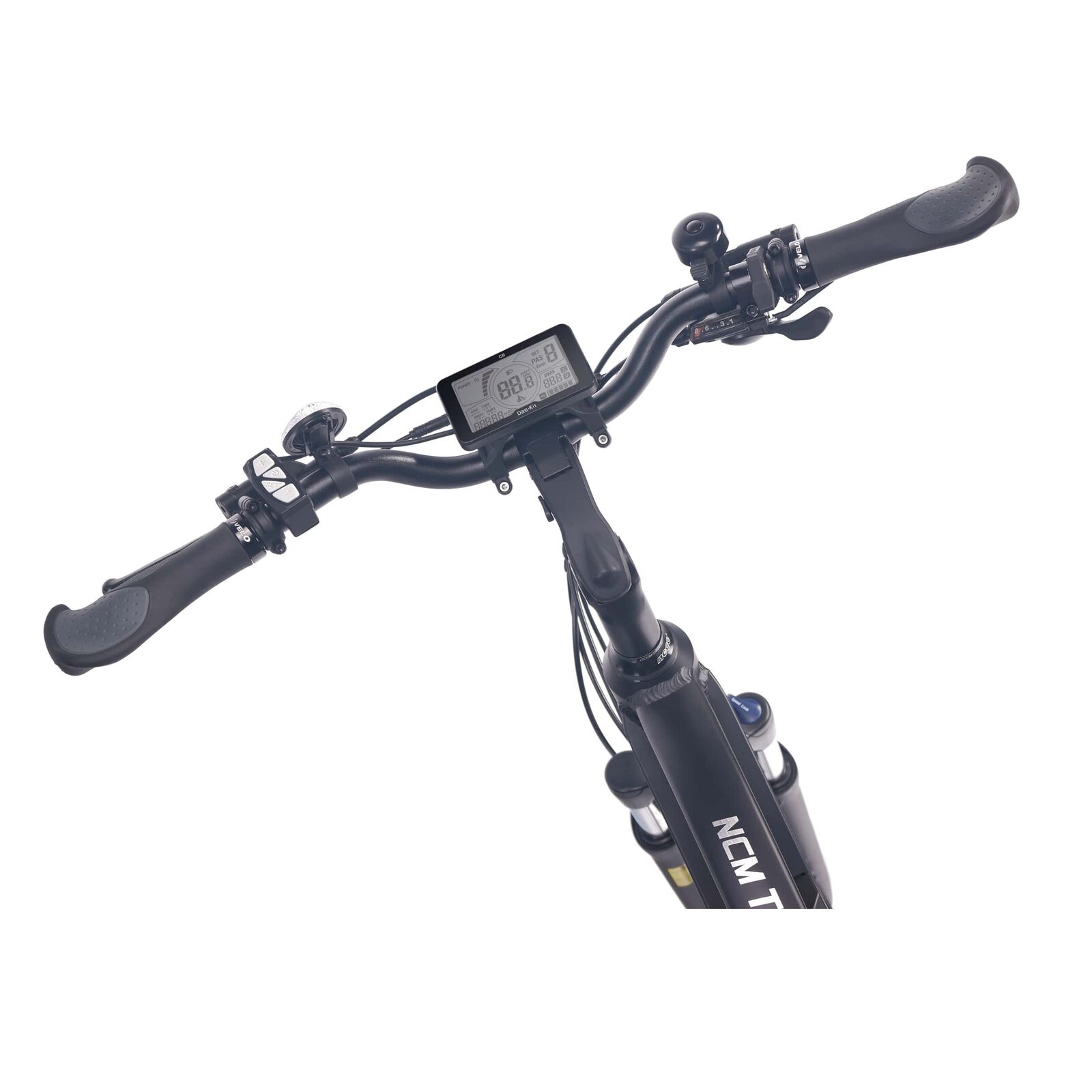

Das-Kit C8 Display

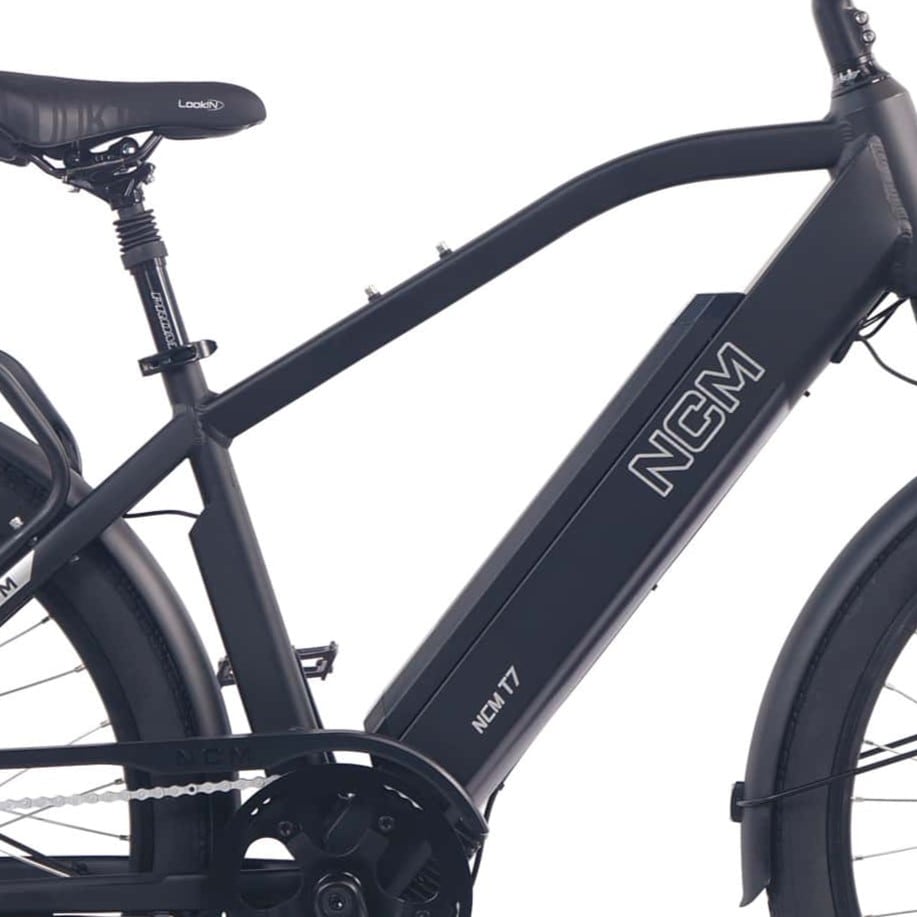

48V Battery with GPS

Schwalbe Tires

Specifications

  NCM T7 NCM T3
Motor Das-Kit X15 motor, 48V 250W,
500W Peak Power, max speed 25 km/h		 Das-Kit X15 motor, 48V 250W,
500W Peak Power, max speed 25 km/h
Battery DEHAWK, I7, 48V 19Ah, 912Wh
with TAG Technology & USB Port
(Approvals: NSW REAS #CCS-250307-EA)		 Das-Kit, I6, 48V 12Ah, 576Wh
(Approvals: NSW REAS #CCS-250305-EA)
Display Das-Kit C8 Advanced, LCD Display Das-Kit L7T with T6 Throttle

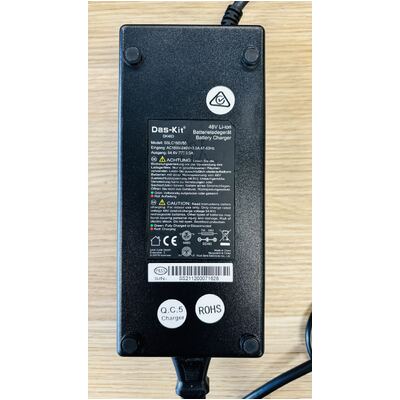

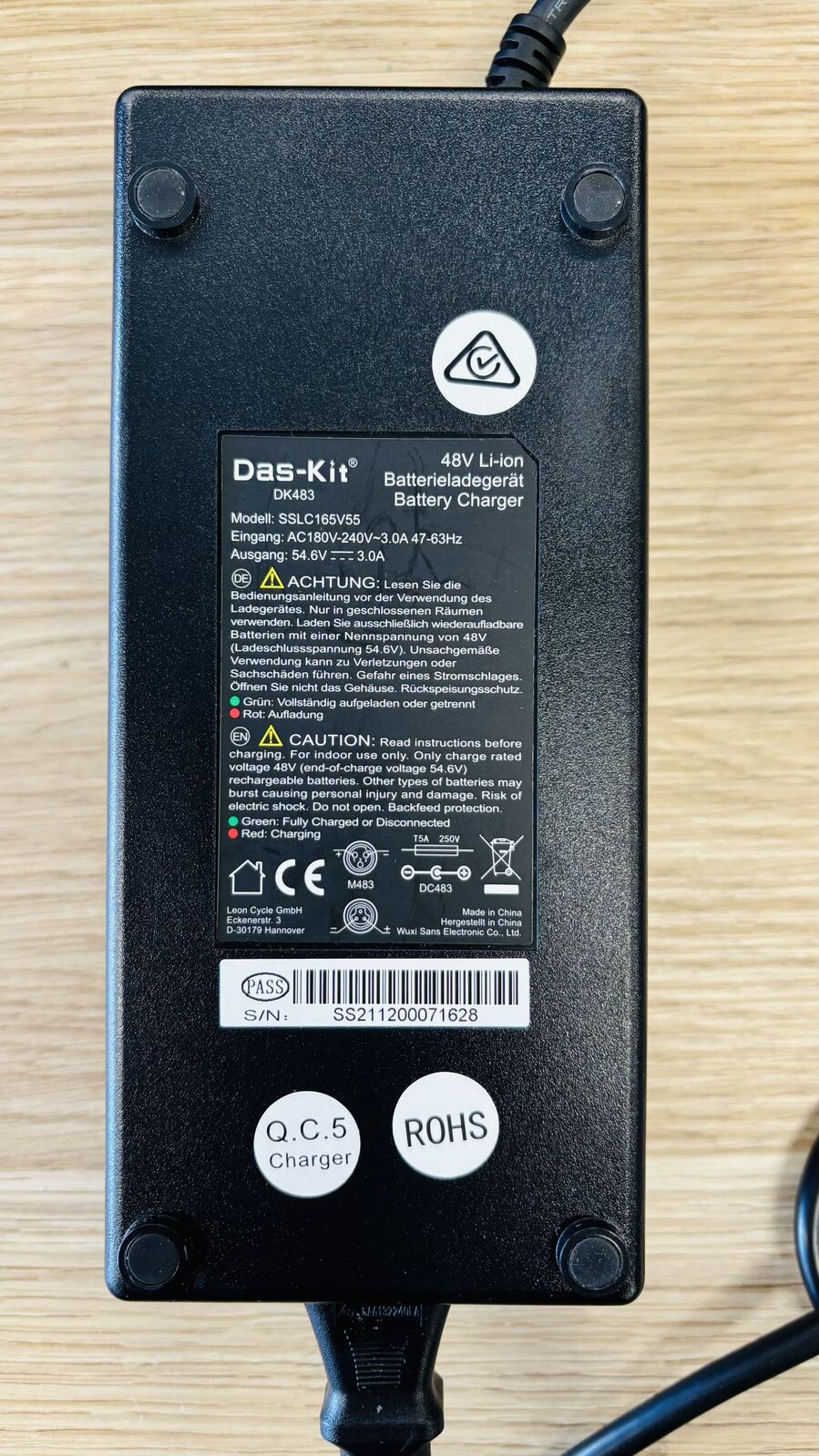

Charger Das-Kit, DK483, 48V 3A Fast Charger
(Approvals: ERAC, NSW REAS #GMA-514660-EA)		 Das-Kit, 48V 2A
(Approvals: ERAC, NSW REAS #TUV026262EA)
Frame Alu. 6061, 26*430MM
Alu.6061, 28*460MM		 Alu. 6061, 26"x380MM

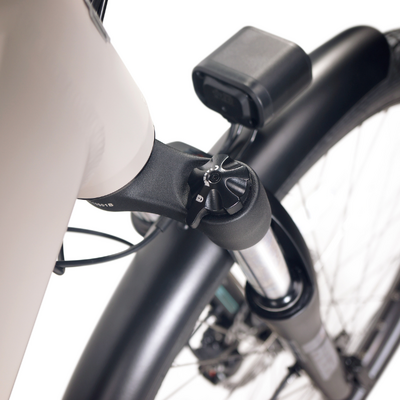

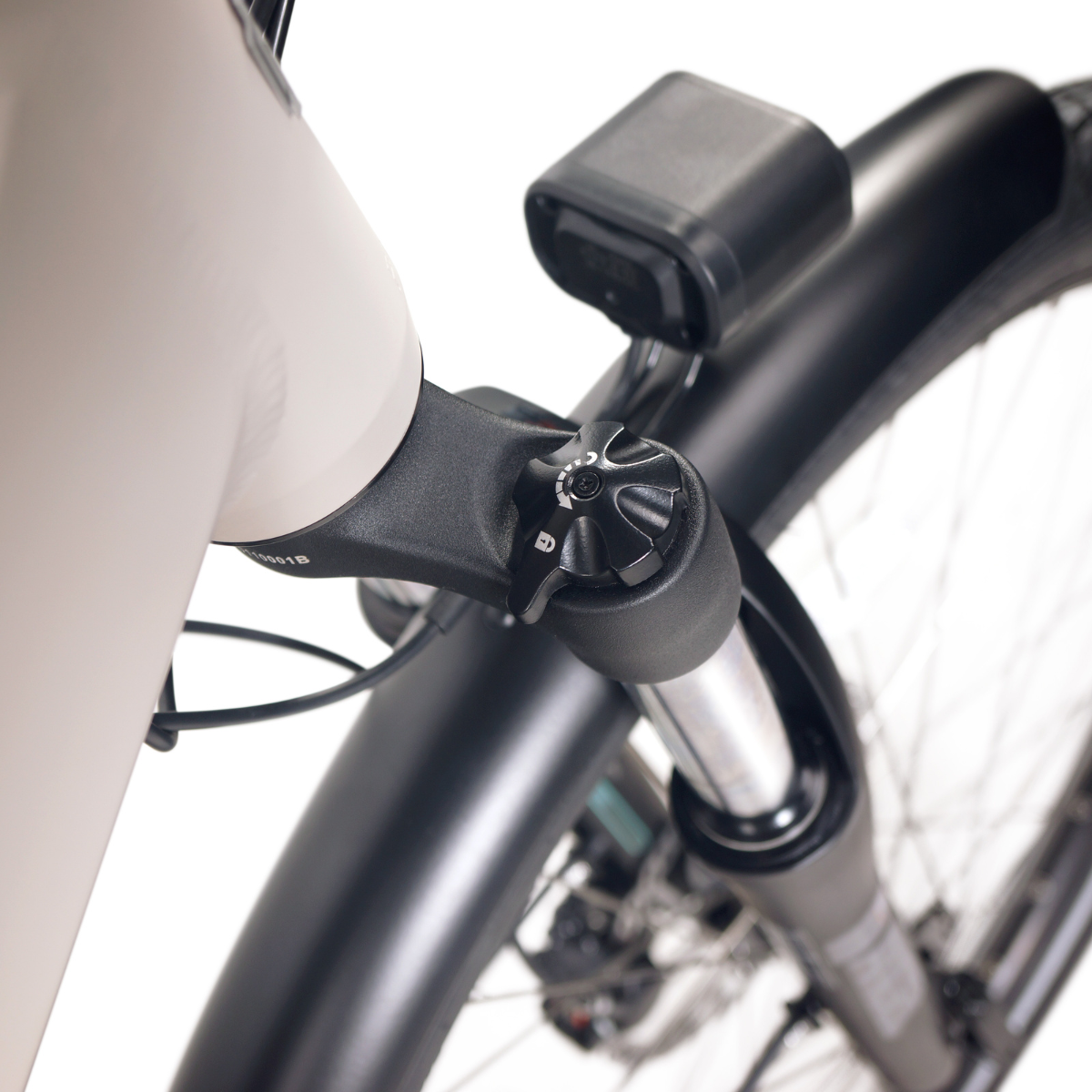

Forks RST, ANGEL-TNL-26,
with Hydraulic Lock System		 SUNTOUR NEX 26
Braking System Das-Kit Hydraulic Disc Brakes Das-Kit Hydraulic Mechanical Disc
Gear Selector Shimano Altus 8 speed Shimano Altus M315-7R, 7 speed
Front Derailleur N/A N/A
Rear Derailleur Shimano, Acera, RD-M360 Shimano Altus M310, 7 speed

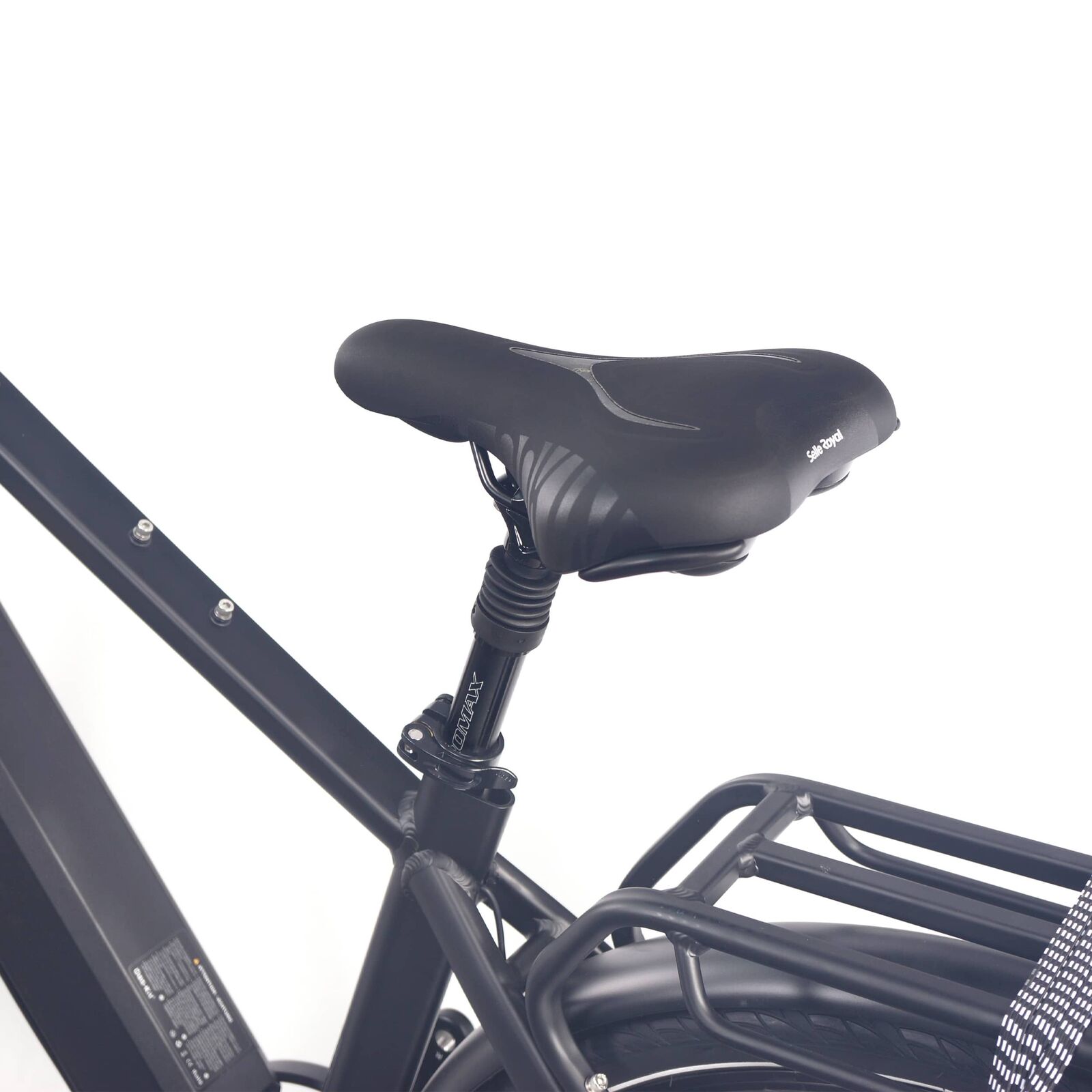

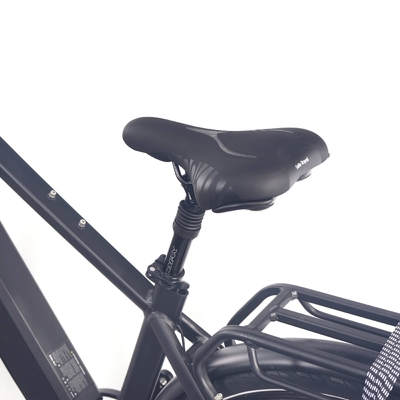

Saddle Selle Royal, Lookin, Black Selle Royal, FREEWAY
Tyre CST/Arisun, H-5213E,
26*2.0 | 28*2.0		 CST/Arisun, H-5213E,
26*1.95
Handle Grips Promax Selle Royal, JF510
Pedal Wellgo, B087, Black Wellgo, B087
Range Up to 180 km
(depending on road conditions and power setting)		 Upto 120 km
Weight E-Bike: 28.8 kg
Weight Capacity: 140 kg (driver+bike)		 E-Bike: 26 kg
Weight Capacity: 140 kg (driver+bike)

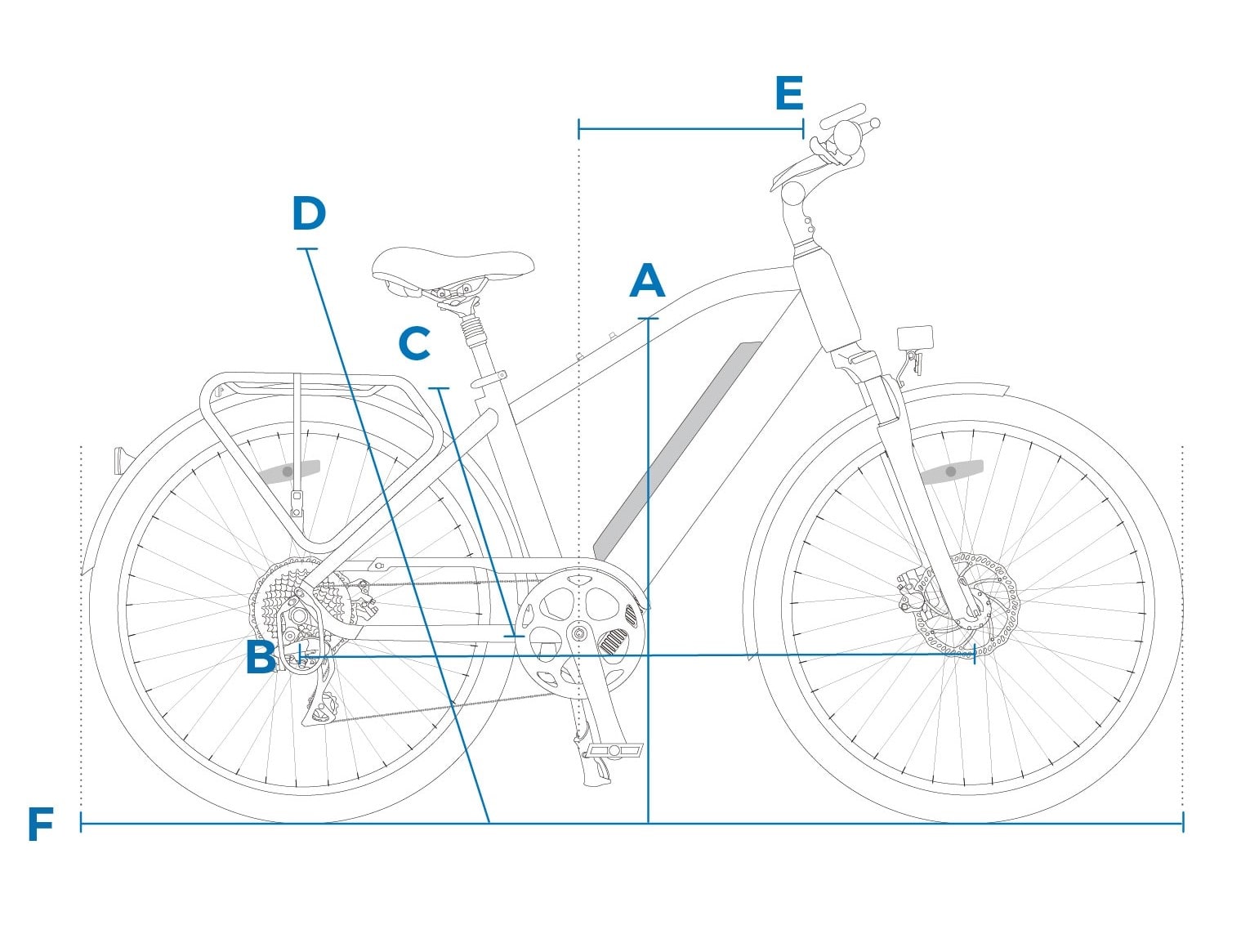

Sizing Chart

cm   A B C D E F
  Stand Over Height Wheel Base Frame Size Min / Max Seat Height Reach Overall Length
NCM T7 26" 160-188 80 107.4 42 86.3-99.8 40.4 174.5
NCM T7 28" 160-188 85 110 46 90-108 45.5 184


Warranty

  • Leon Cycle provides 1-year warranty on all electronic parts (including battery, motor, controller, display, lights)
  • Leon Cycle provides 2-year warranty on the bike frame. For more warranty information visit our FAQS.
  • Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
  • Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.


About NCM

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.


Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. For more information contact us on 0390695443. Visit our Youtube channel for Assembly and New Arrivals Videos. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

Our E-Bikes meet the following standards:

EPAC EN15194 (limited to 25km/h, 250W motor)
Chargers registered with Australian ERAC as approved for use in AU
Batteries meet international standards IEC 62133-2:2017 (inc battery management)

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

  • 1 x NCM T7 E-bike
  • 1 x DC483DE 48v charger
  • 1 x tool kit


(P-VENICE-T7)

SKU P-VENICE-T7
Brand NCM
Shipping Weight 35.0000kg
Shipping Width 0.250m
Shipping Height 0.780m
Shipping Length 1.410m
Shipping Cubic 0.274950000m3
