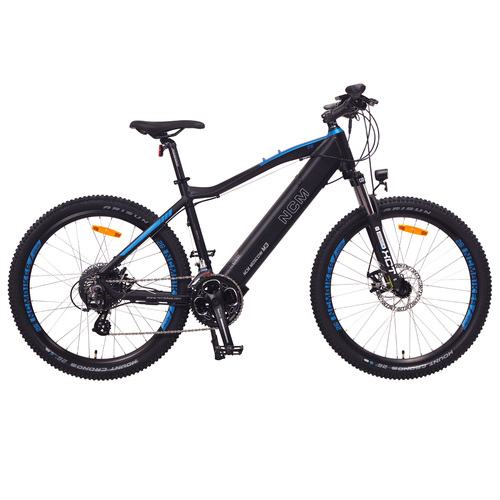

NCM M3

Introduction

Compared to old Moscow, NCM M3 is built with a reinforced integrated battery and lightweight black battery cover to save weight and to make it easier to carry. Additionally, this model finally comes with the custom front light to enhance visibility and is easier to spot in traffic. Rugged and capable, M3 still keeps all the features of a high-performance electric mountain bike.

Key Features

Reinforced integrated battery
Custom front light to enhance visibility
Easily removable battery to charge it anywhere
Up to 110km Battery Range (depending on the conditions)
Up to 500W Peak Motor Power
Ergonomic bicycle grips
Comfortable sitting posture
All the important controls are easily accessible

Das-Kit 250W-500W Motor

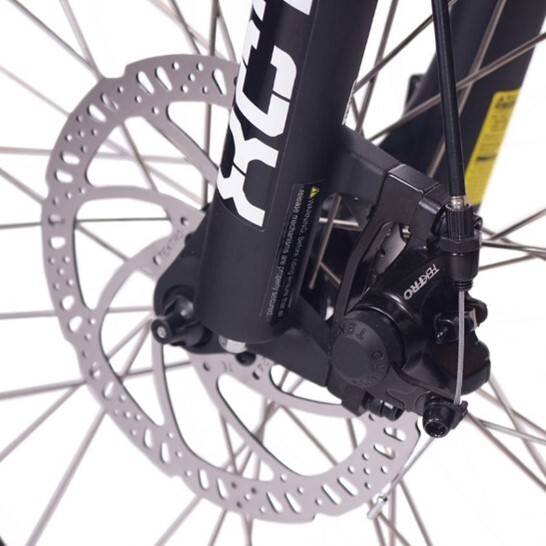

Tektro Disc Brakes

48V Integrated and Removable Battery

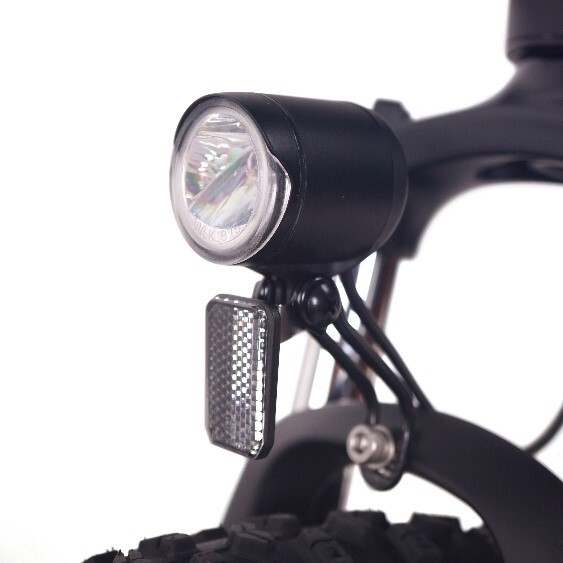

Custom Front Light

Specifications

	NCM M3	NCM Moscow Plus	NCM Moscow
Motor	Das-Kit X15 motor, 48V 250W, 500W Peak Power, max speed 25 km/h	Das-Kit X15 motor, 48V 250W, 500W Peak Power, max speed 25 km/h	Das-Kit X15 motor, 48V 250W, 500W Peak Power, max speed 25 km/h
Battery	Das-Kit, I6, 48V 12Ah, 576Wh	DEHAWK, I5, 48V 16Ah, 768Wh with USB Port	DEHAWK, I5, 48V 13Ah, 624Wh with USB Port

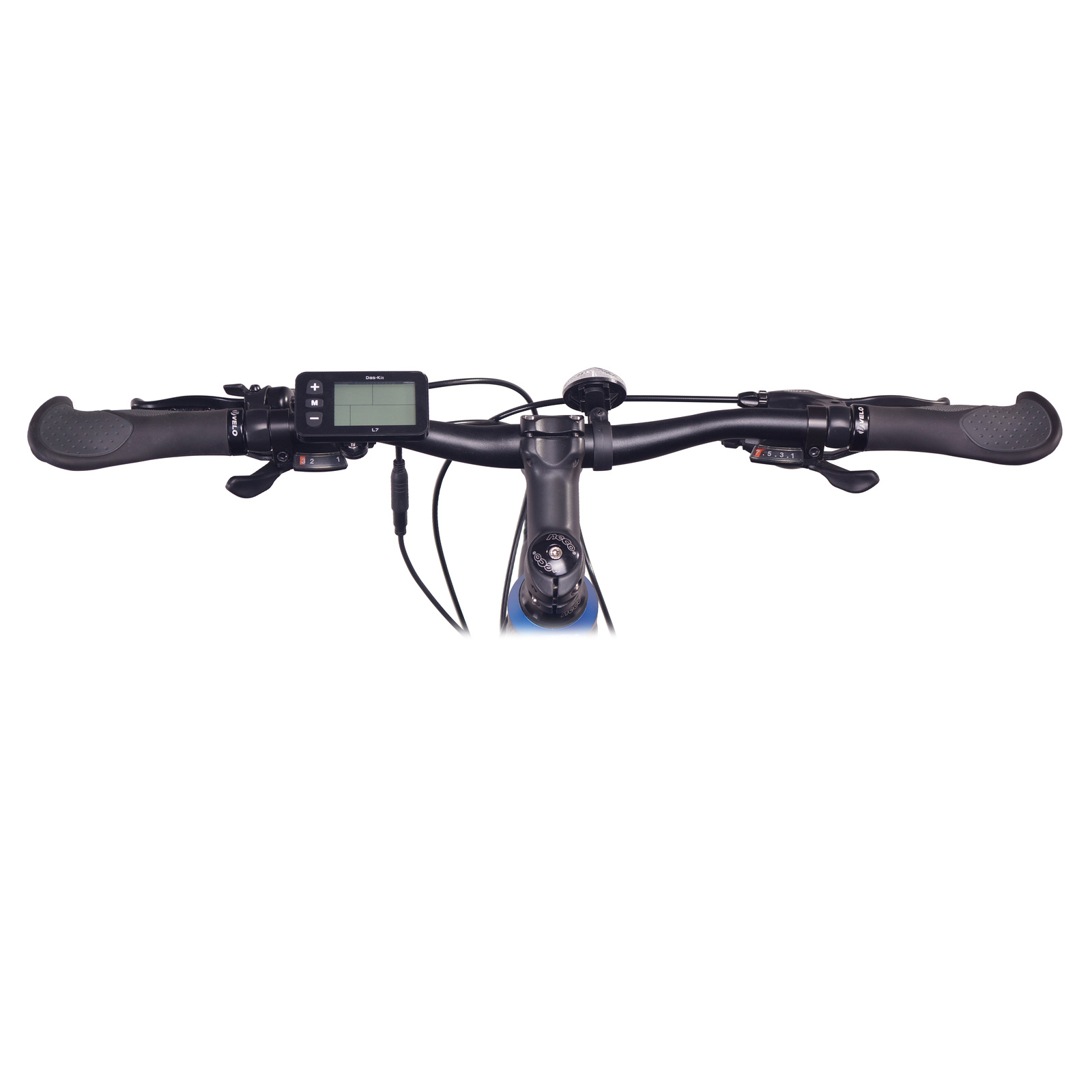

Display	Das-Kit L7, LCD Display	Das-Kit C7 Advanced, LCD Display	Das-Kit L7, LCD Display
Charger	Das-Kit, 48V 2A	DC483DE 48V 2A	DC483DE 48V 2A
Frame	Alu. 6061 26"460MM \| 27.5"480MM \| 29"*520MM	Alu. 6061, 19/20*480/510MM	Alu. 6061, 19/20*480/510MM
Forks	SUNTOUR XCT	SUNTOUR XCM	SUNTOUR XCT
Braking System	Tektro Disc	Tektro Hydraulic Disc	Tektro Mechanical Disc
Gear Selector	Shimano Altus 7 speed	Shimano Acera 8 speed	Shimano Altus 7 speed
Front Derailleur	Shimano Altus Triple	Shimano Acera Triple	Shimano Altus Triple
Rear derailleur	Shimano Altus, 7 speed	Shimano Acera, 8 speed	Shimano Altus, 7 speed
Saddle	NCM Velo, VL-3410	Selle Royal, Lookin-A200UR, Black	NCM Velo, VL-3410
Tyre	CST / Arisun Mount Cronos	CST / Schwalbe, Smart Sam 27.5×2.25 29×2.25	CST / Schwalbe, Smart Sam 27.5×2.25 29×2.25
Handle Grips	Velo, VLG-1189D3	Velo, VLG-1189D3 139mm	Velo, VLG-1189D3 139mm
Pedal	Wellgo, B087	Wellgo, B087	Wellgo, B087
Range	Up to 110 km	Up to 150 km	Up to 120 km
Weight	25 kg	28/29 kg	28/29 kg

Sizing Chart

CM		A	B	C	D	E	F
		Stand Over Height	Wheel Base	Frame Size	Min / Max Seat Height	Reach	Overall Length
NCM M3 26"	160-185	70	103	47	84/103	60	178
NCM M3 27.5"	162-187	76.2	108	48.2	86.8 / 103	60	180
NCM M3 29"	175-193	82.5	110	50.8	88.9 / 106	60	185

Warranty

Leon Cycle provides 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
Leon Cycle provides 2 year warranty on the bike frame. For more warranty information visit our FAQS.
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months. For more information contact Leon Cycle on 0390695443.
Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.

About NCM

NCM Electric Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.

Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. For more information contact us on 0390695443. Visit our Youtube channel for Assembly and New Arrivals Videos. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

Our E-Bikes meet the following standards:

EPAC EN15194 (limited to 25km/h, 250W motor)
Chargers registered with Australian ERAC as approved for use in AU
Batteries meet international standards IEC 62133-2:2017 (inc battery management)

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

Certain bike components such as tyres may change based on supplier availability, but all replacements will be of the same quality.

In the box

1 x NCM M3 E-bike
1 x DC483DE 48v charger
1 x tool kit

(P-MOSCOW-M3)

SKU	P-MOSCOW-M3
Brand	NCM
Shipping Weight	33.0000kg
Shipping Width	0.260m
Shipping Height	0.800m
Shipping Length	1.520m
Shipping Cubic	0.316160000m3
Unit Of Measure	ea
