NCM CG7

Introduction

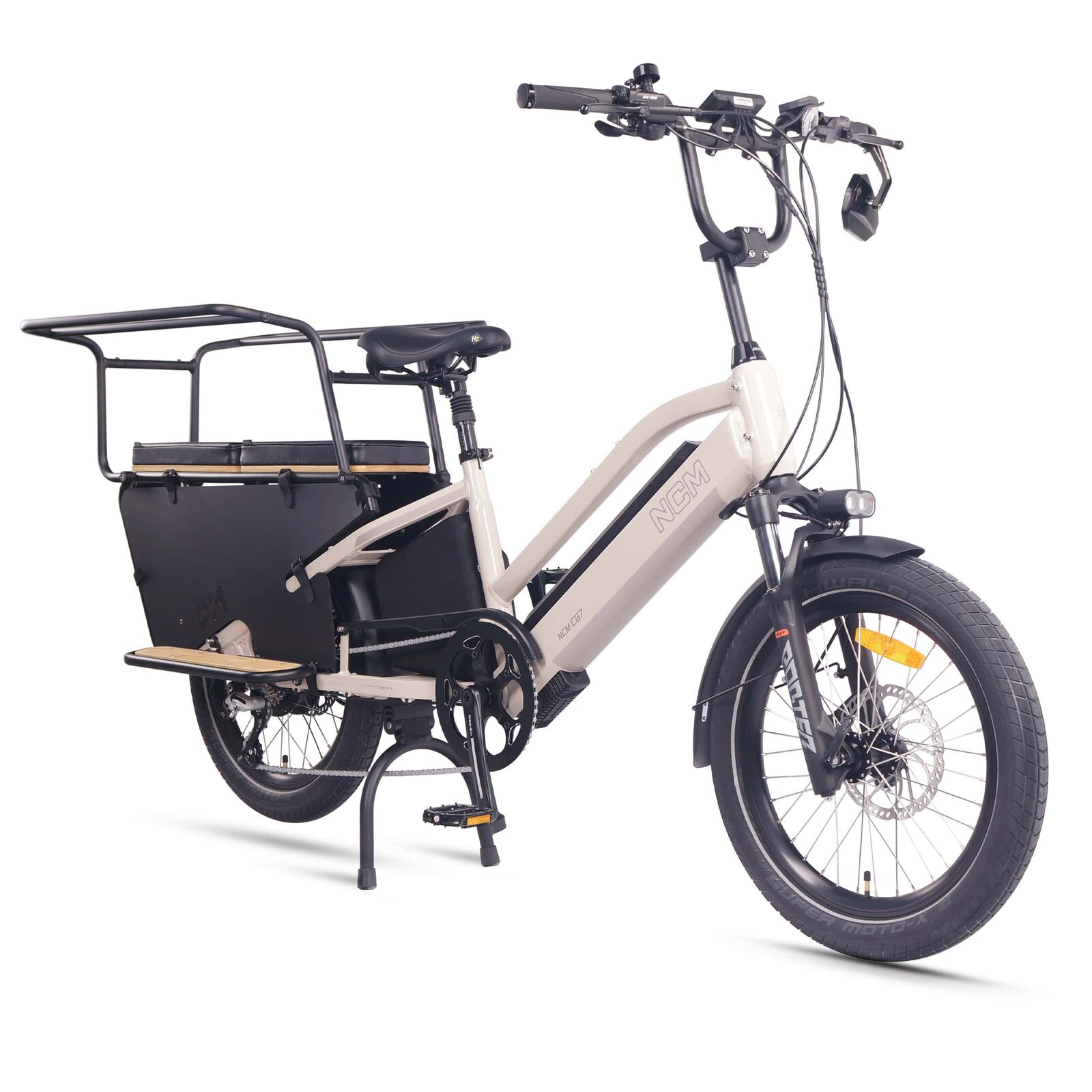

Balancing accessibility with superior specifications, the NCM CG7 Step-Through E-Cargo Bike is designed to make every ride effortless. Whether you’re running errands, making deliveries, or taking the kids on an adventure, this e-cargo bike combines practicality, comfort, and performance in one versatile package.

Key Features

Step-Through Frame – Easy mounting and dismounting, ideal for riders of all ages.
High-Capacity Cargo Space – Carry groceries, packages, or passengers with confidence.
48V High-Output Power – Provides strong performance for both city commuting and cargo loads.
Up to 500W Peak Motor Power – Extra boost when tackling hills or carrying heavy items.
912Wh Battery Capacity – Up to 180 km Battery Range on a single charge. (range depends on road conditions).
Intelligent Torque Sensor – Delivers responsive pedal assistance based on your riding effort.

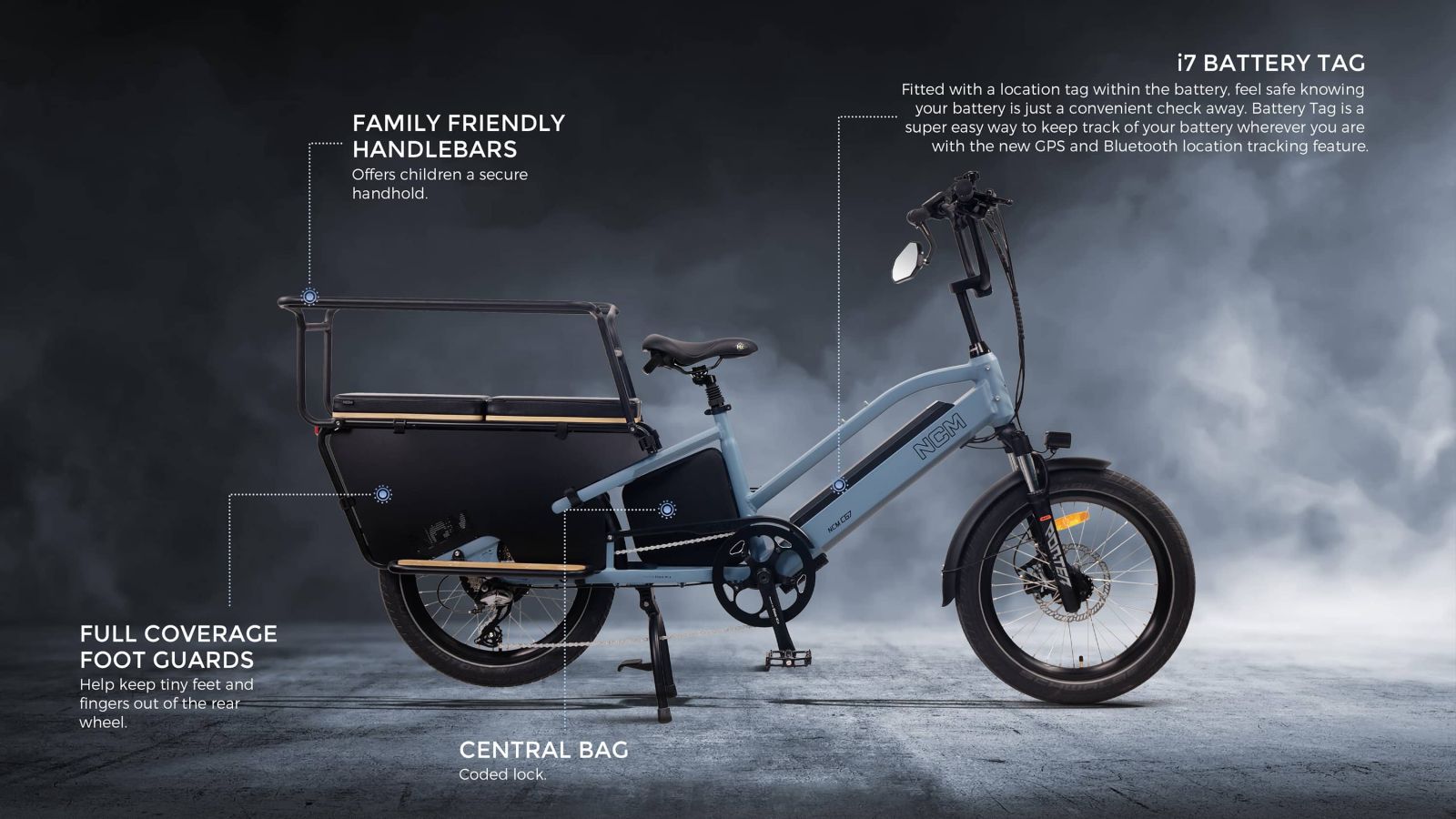

Built-in GPS with Location Tag Technology – Added security and tracking capability.
Easily Removable Battery – Convenient charging at home, office, or on the go.
USB Charging Port (5V) – Charge your mobile devices directly from your bike.
Ergonomic Bicycle Grips – Designed for comfort and reduced hand fatigue on long rides.
Comfortable Riding Posture – Optimized frame geometry ensures a relaxed, upright position.
Accessible Controls – All key functions are within easy reach for a smooth riding experience.

Das-Kit 250W-500W Motor

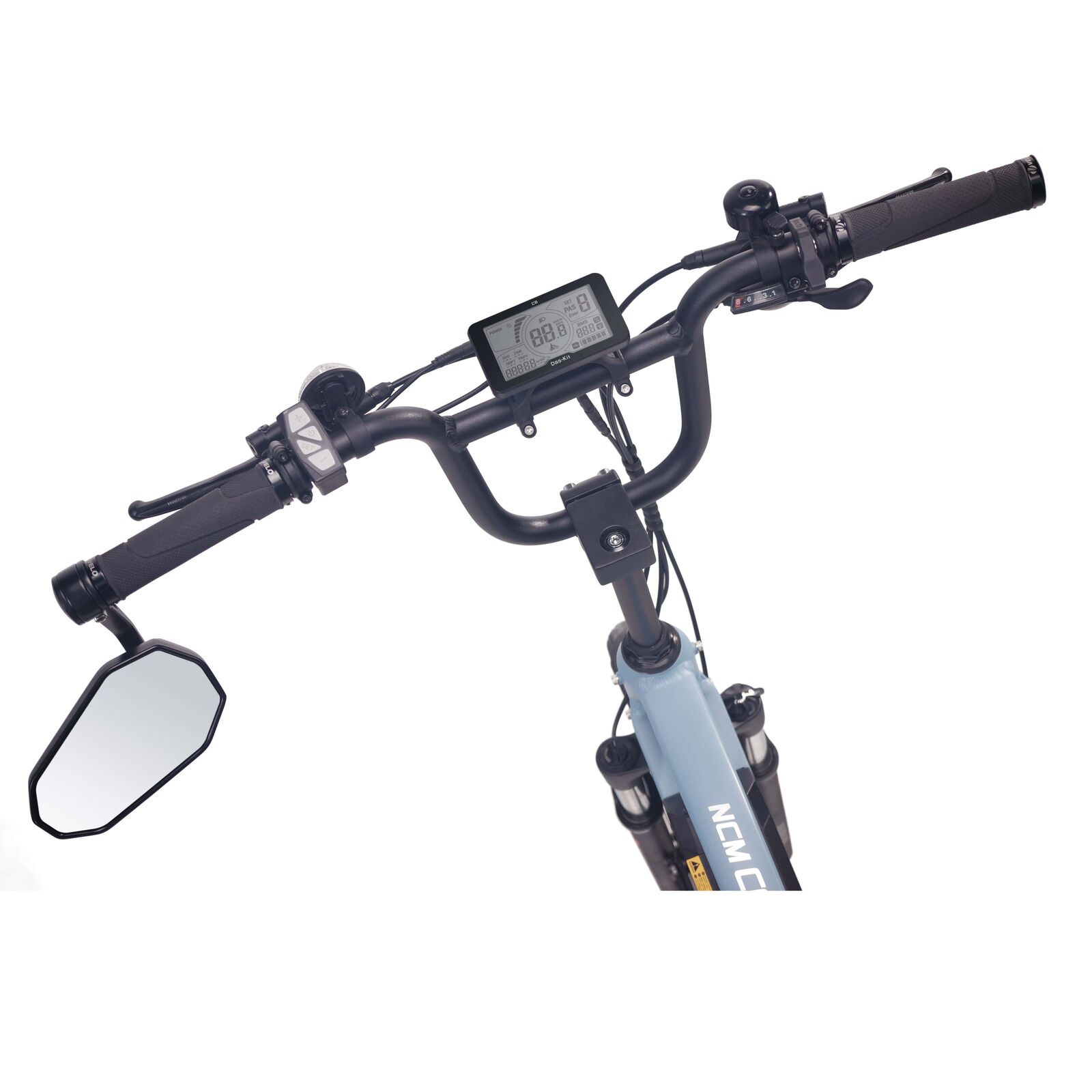

Das-Kit C8 Display

48V battery with USB

Schwalbe Tires

Specifications

	NCM CG7
Motor	Das-Kit X21 motor, 48V 250W, 500W Peak Power, max speed 25 km/h
Battery	DEHAWK, I7, 48V 19Ah, 912Wh with TAG Technology & USB Port
Display	Das-Kit C8 Advanced, LCD Display with USB
Charger	Das-Kit, 48V 3A Fast Charger
Frame	Alu. 6061, 20"*380MM
Forks	RST, PORTER-TNL-20"
Braking System	Das-Kit Hydraulic Disc Brakes with brake sensor
Gear Selector	Shimano, Altus, R:SL-M315-7R, 7 Speed
Light	Front: LED, 48V, 70 Lux, Rear: LED, 48V, with brake light
Rear Derailleur	Shimano, Acera, RD-M360
Saddle	Selle Royal, Herz City, Black
Tyre	CST / Schwalbe, super Motor X, 20*2.4,Black
Handle Grips	Promax
Pedal	Wellgo, B087, Black
Range	Up to 180 km (depending on road conditions and power setting)
Kickstand	Double Stand with brake sensor
Weight	E-Bike: 37 kg Load Capacity: 180 kg (driver+bike)

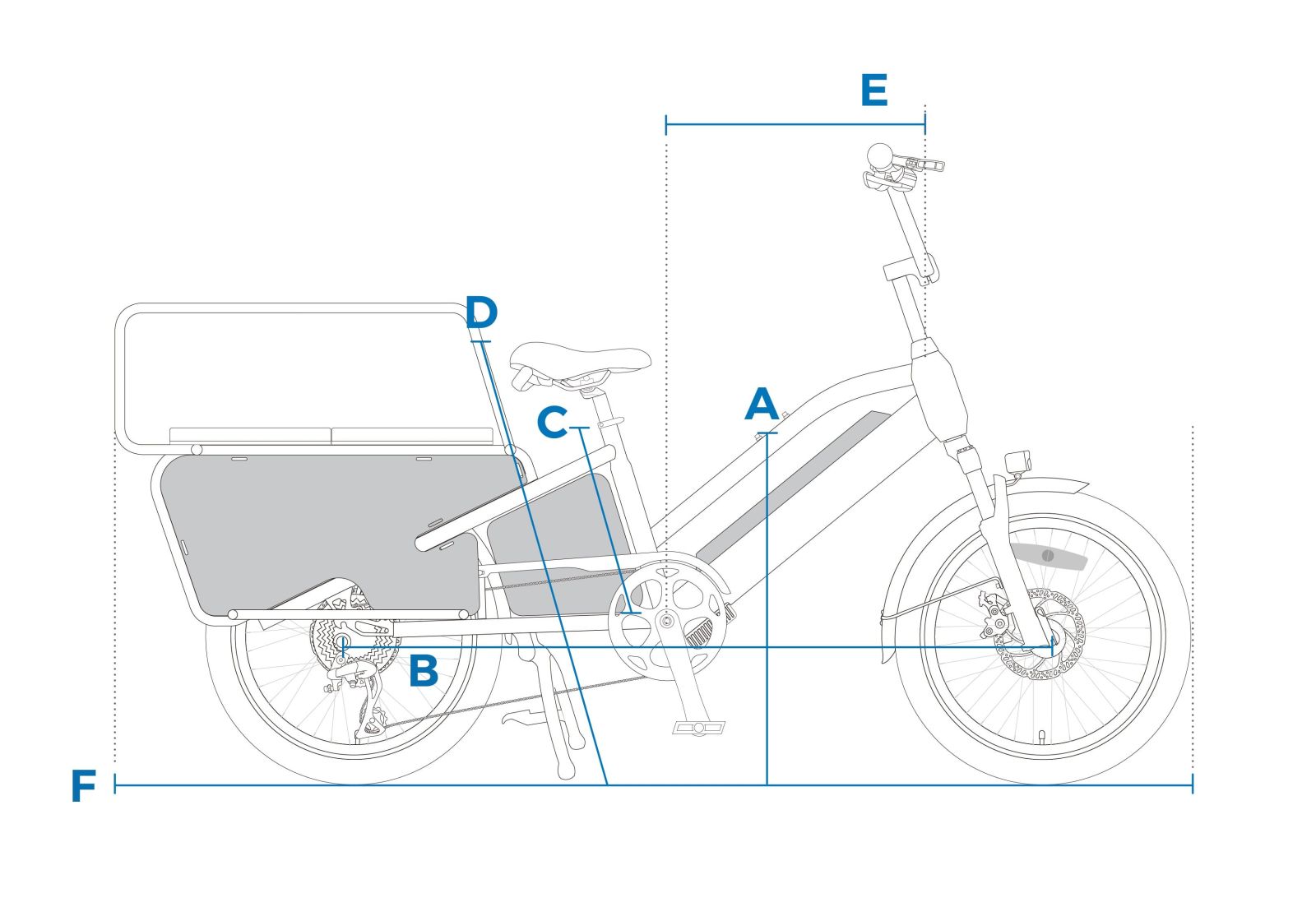

Sizing Chart

cm		A	B	C	D	E	F
		Stand Over Height	Wheel Base	Frame Size	Min / Max Seat Height	Reach	Overall Length
NCM CG7	155-190	65	128.2	38	84-96	47.7	195

Warranty

Leon Cycle provides 1-year warranty on all electronic parts (including battery, motor, controller, display, lights)
Leon Cycle provides 2-year warranty on the bike frame. For more warranty information visit our FAQS.
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.

About NCM

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.

Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. For more information contact us on 0390695443. Visit our Youtube channel for Assembly and New Arrivals Videos. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

Our E-Bikes meet the following standards:

EPAC EN15194 (limited to 25km/h, 250W motor)
Chargers registered with Australian ERAC as approved for use in AU
Batteries meet international standards IEC 62133-2:2017 (inc battery management)

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

1 x NCM CG7 E-bike
1 x DC483DE 48v charger
1 x tool kit

(P-CARGO-CG7)

SKU	P-CARGO-CG7
Brand	NCM
Shipping Weight	34.0000kg
Shipping Width	0.230m
Shipping Height	1.010m
Shipping Length	1.840m
Shipping Cubic	0.427432000m3
Unit Of Measure	ea
