NCM Paris +

Introduction

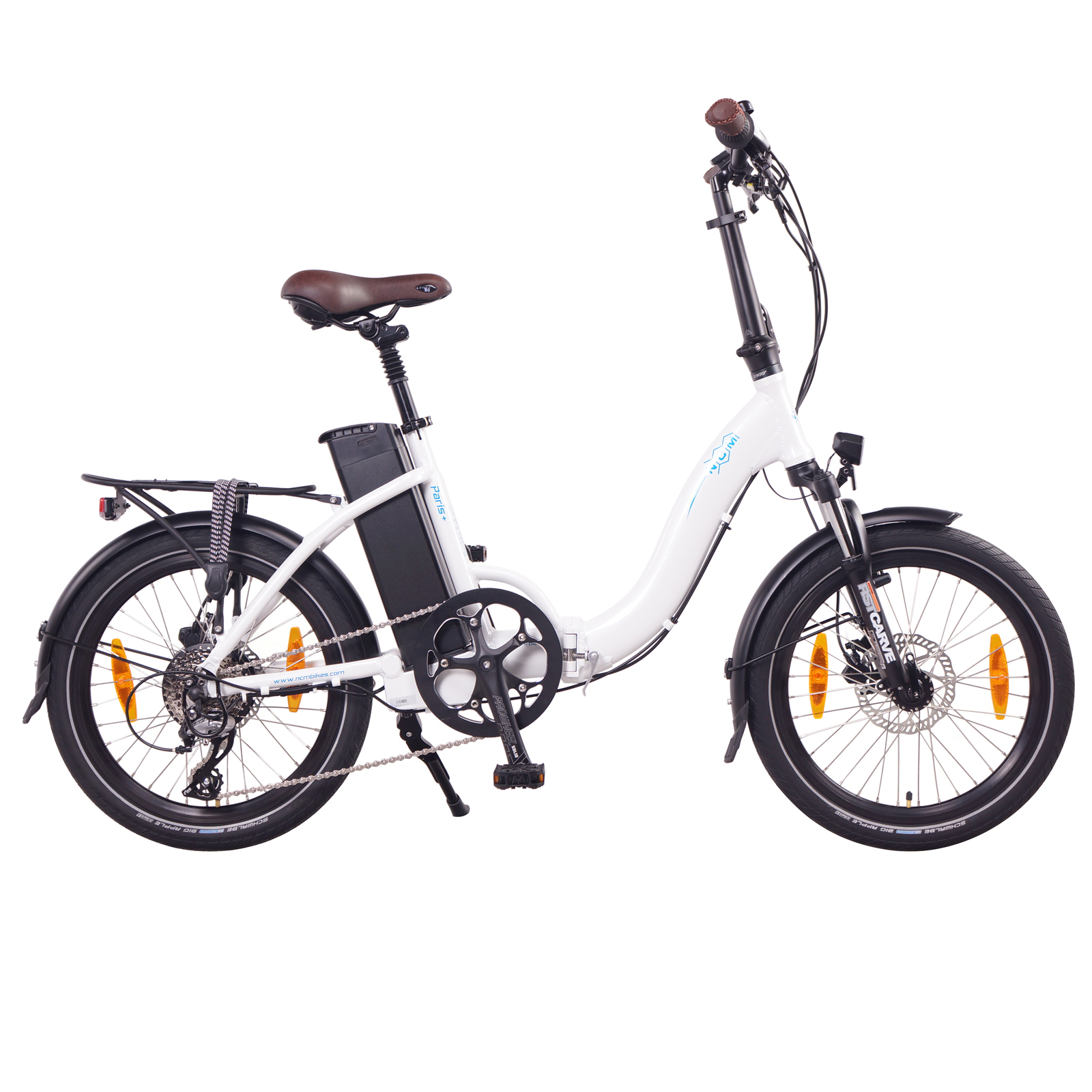

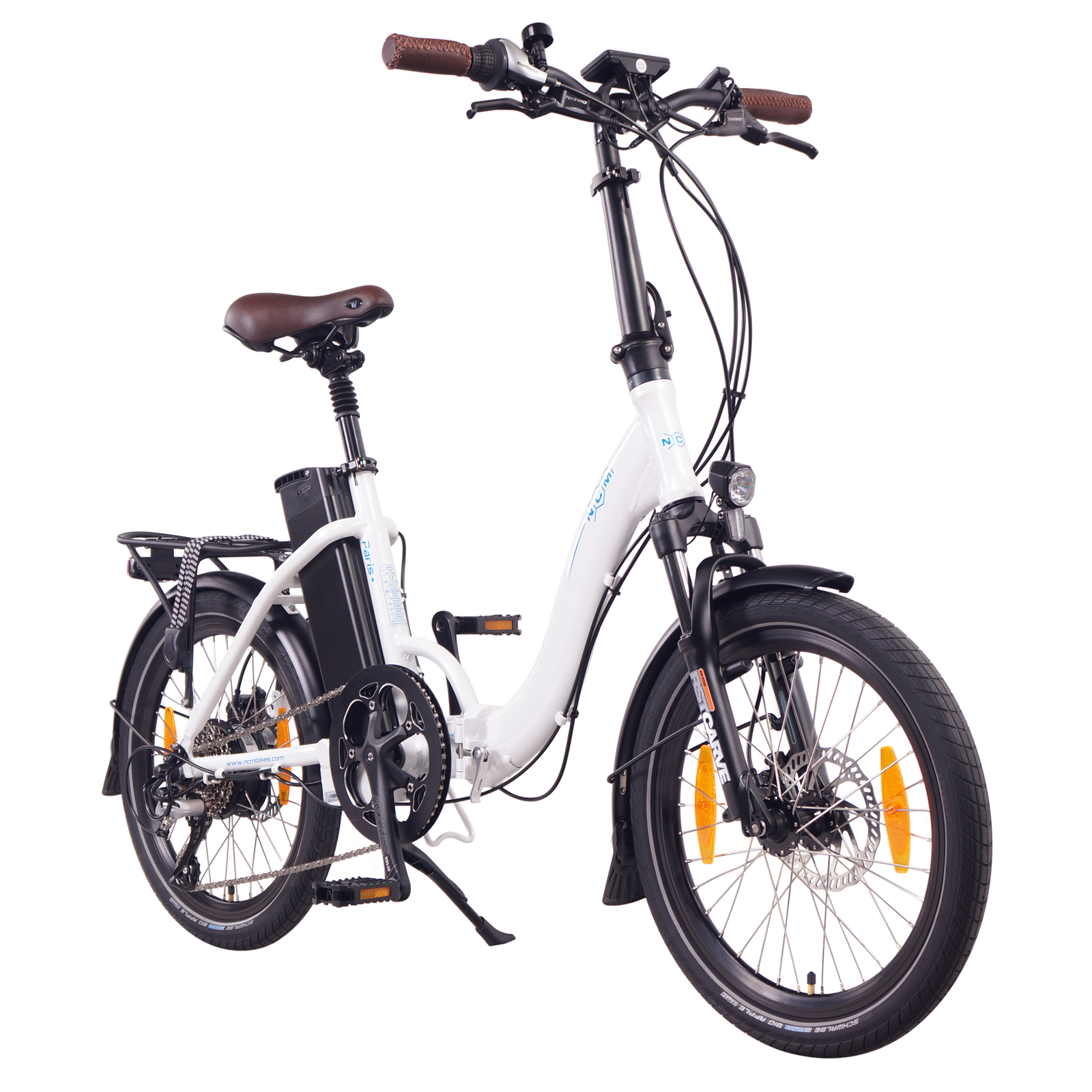

The NCM Paris + is NCMs, curvy foldable ebike series. With a lower tube design and a large rear mounted battery for extra range. NCM foldable electric bikes are designed to be compact and light weight, whilst also providing high quality strength and reliability.

Key Features

Ergonomic bicycle Grips
Comfortable sitting posture
All important controls easily accessible
Supplied with 36V to deliver a high output power
over 684Wh capacity for a longer distance
reach up to 130 km (depending on the conditions)
easily removable battery so you can charge it anywhere
A built-in USB port with 5V to charge mobile phones

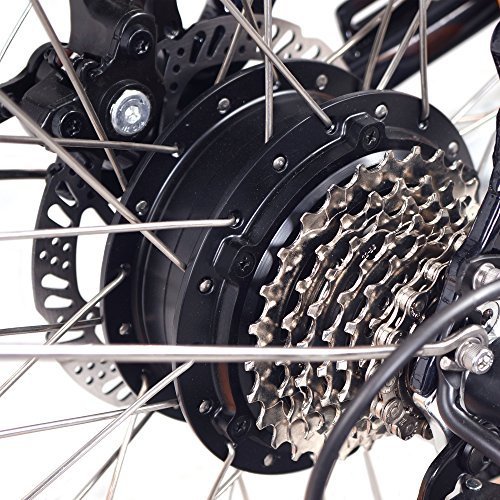

Das kit 250W Motor

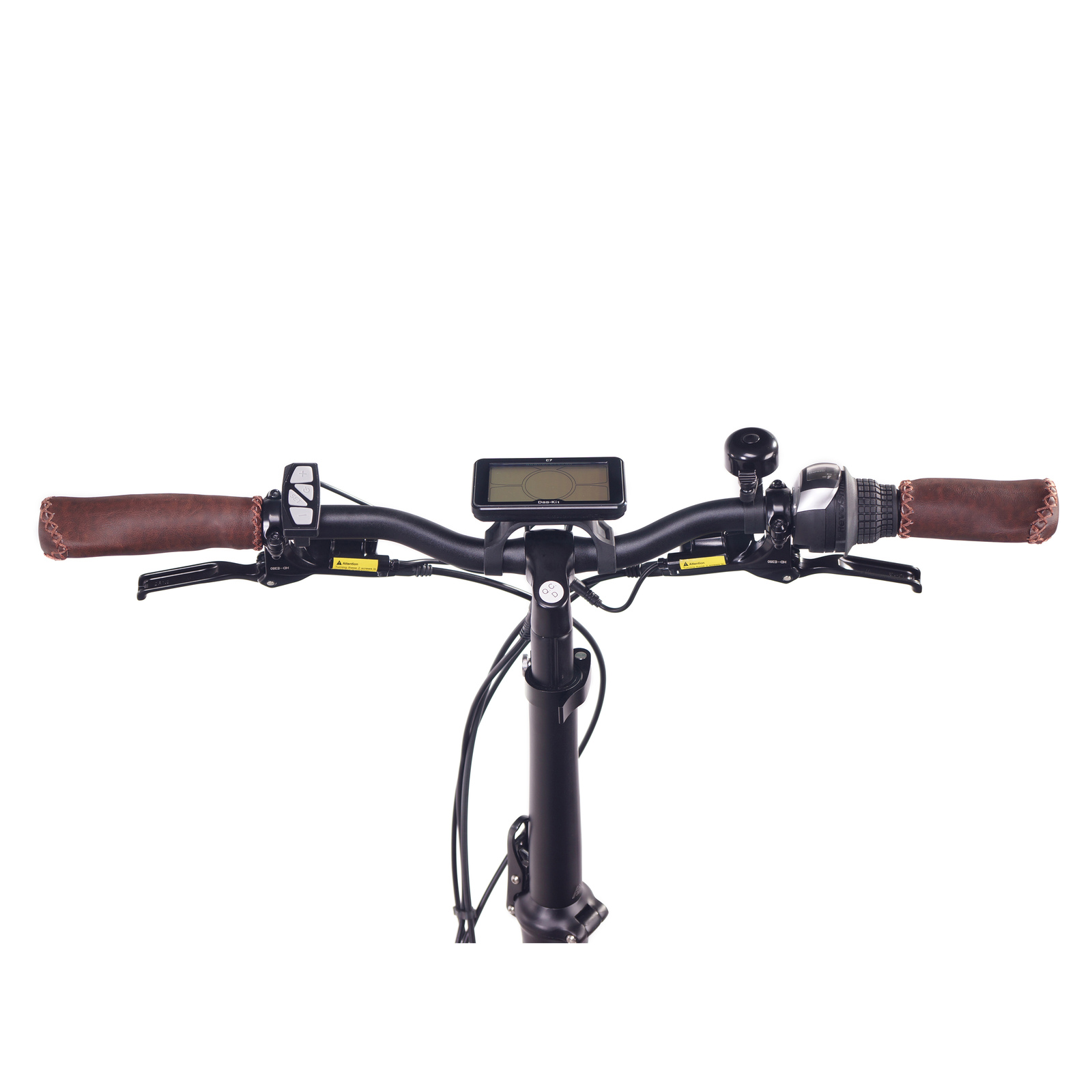

Das Kit C7 Display

36V battery with USB

Schwalbe Tyres

Specifications

	NCM Paris	NCM Paris +	NCM Paris Max
Motor	Das-Kit R2S motor, 36V 250W, max speed 25 km/h	Das-Kit R2S motor, 36V 250W, max speed 25 km/h	Bafang motor, 36V 250W, max speed 25 km/h
Battery	DEHAWK B1u-3615H, 540Wh, 36V 15Ah	DEHAWK B1u-3619P, 684Wh, 36V 19Ah	DEHAWK R4Y-3614P, 504Wh, 36V 14Ah
Display	Das-Kit L6, LCD Display	Das-Kit C7, LCD Display	Bafang MAX, C966 LCD Display

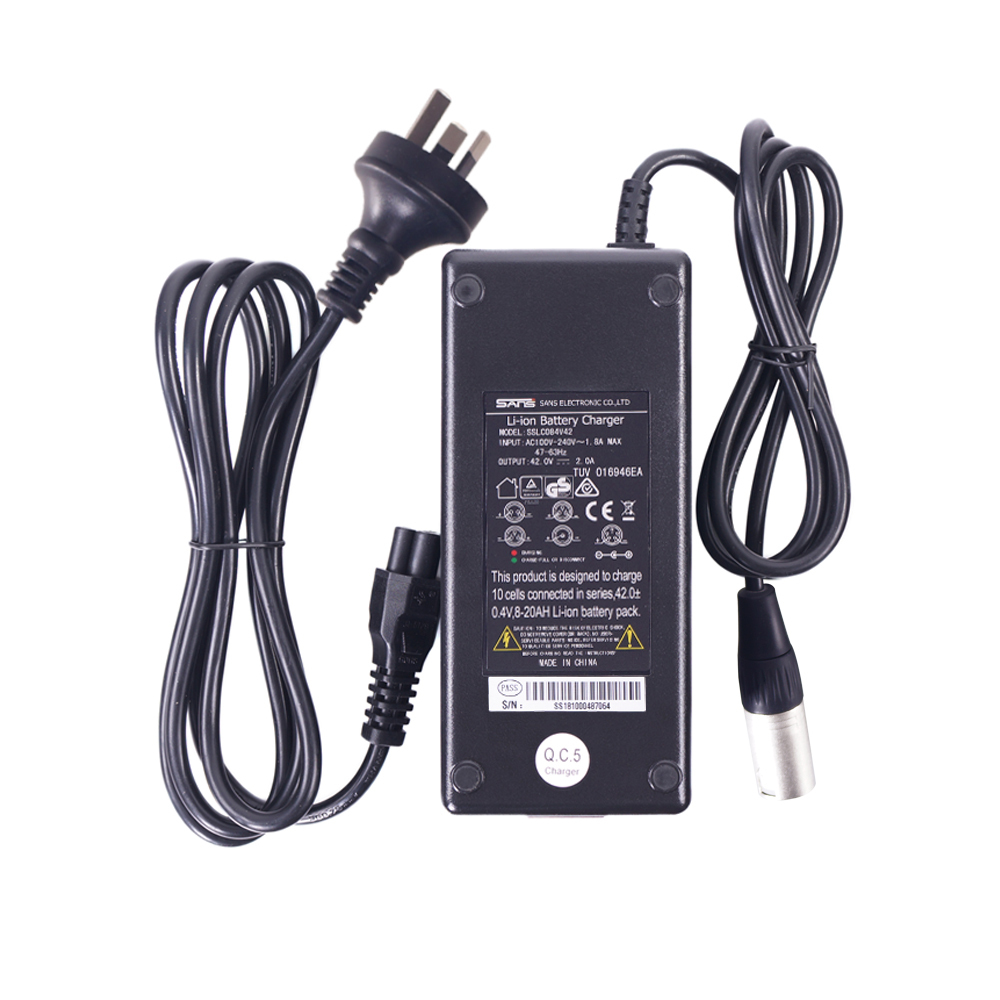

Charger	SANS 36V 2A	SANS 36V 2A	SANS 36V 2A
Frame	Alu. 6061, 380mm	Alu. 6061, 380mm	Alu. 6061, 395mm
Forks	Zoom CH-190 30mm	RST Carve 60mm	RST SS A2
Braking System	Tektro Mechanical Disc	Tektro Hydraulic Disc	Front: Tektro Mechanical Disc Rear: Shimano Coaster
Gear Selector	Shimano Tourney, 7 speed	Shimano Acera, 8 speed	Shimano Nexus, 8 speed
Front Derailleur	N/A	N/A	N/A
Rear derailleur	Shimano Tourney, 7 speed	Shimano Acera, 8 speed	Shimano Nexus, 8 speed internal
Saddle	Selle Royal, Freeway, Brown	Selle Royal, Freeway, Brown	Selle Royal, New Ariel
Tyre	CST / Schwalbe Big Apple. 20×2.0	CST / Schwalbe Big Apple. 20×2.0	CST / Schwalbe Big Apple. 20×2.0
Handle Grips	Velo, Brown	Velo, Brown	Velo, Black
Pedal	Wellgo, Foldable	Wellgo, Foldable	Wellgo, Foldable
Range	Upto 90 km	Upto 130 km	Upto 100 km
Weight	24 kg	25 kg	25 kg

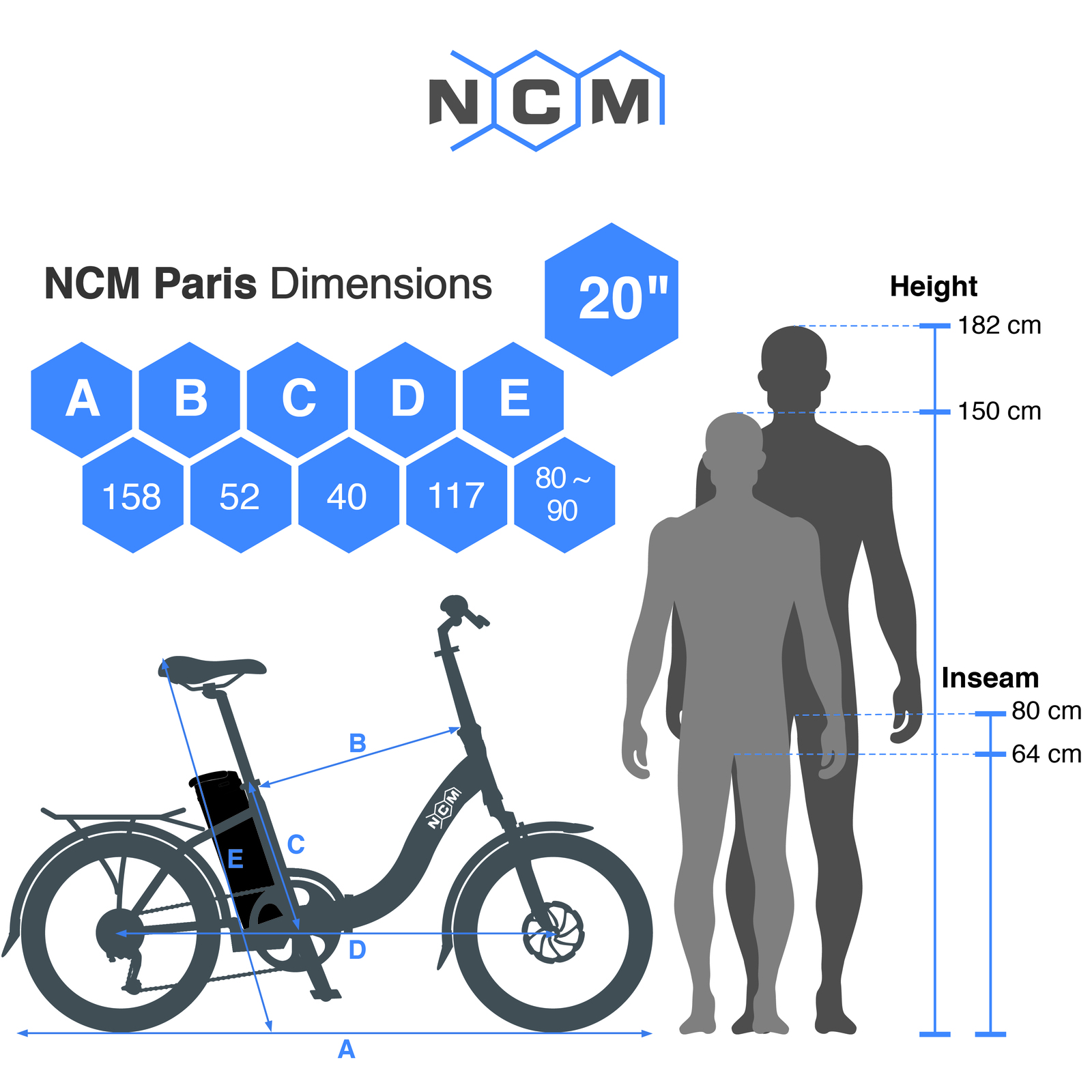

Sizing Chart

cm		A	B	C	D	E
		Overall Length	Reach	Min/Max Seat Height	Wheel Base	Stand over height
Paris Plus	150-182	158	52	80/98	117	50

Warranty

1-year warranty on all electronic parts (including battery, motor, controller, display, lights)
2-year warranty on the bike frame. For more warranty information visit our FAQS.
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
Our ebikes are water resistant but not waterproof. Water damage is not covered under warranty.

About NCM

NCM E-Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.

Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our ebikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. For more information contact us on 0390695443. Visit our Youtube channel for Assembly and New Arrivals Videos. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

Our E-Bikes meet the following standards:

EPAC EN15194 (limited to 25km/h, 250W motor)
Chargers registered with Australian ERAC as approved for use in AU
Batteries meet international standards IEC 62133-2:2017 (inc battery management)

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

1 x Paris Plus E-bike
1 x DC483DE 48v charger
1 x tool kit

(P-PARIS-PLUS)

SKU	P-PARIS-PLUS
Brand	NCM
Shipping Weight	29.0000kg
Shipping Width	0.400m
Shipping Height	0.680m
Shipping Length	0.880m
Shipping Cubic	0.230400000m3
Unit Of Measure	ea
