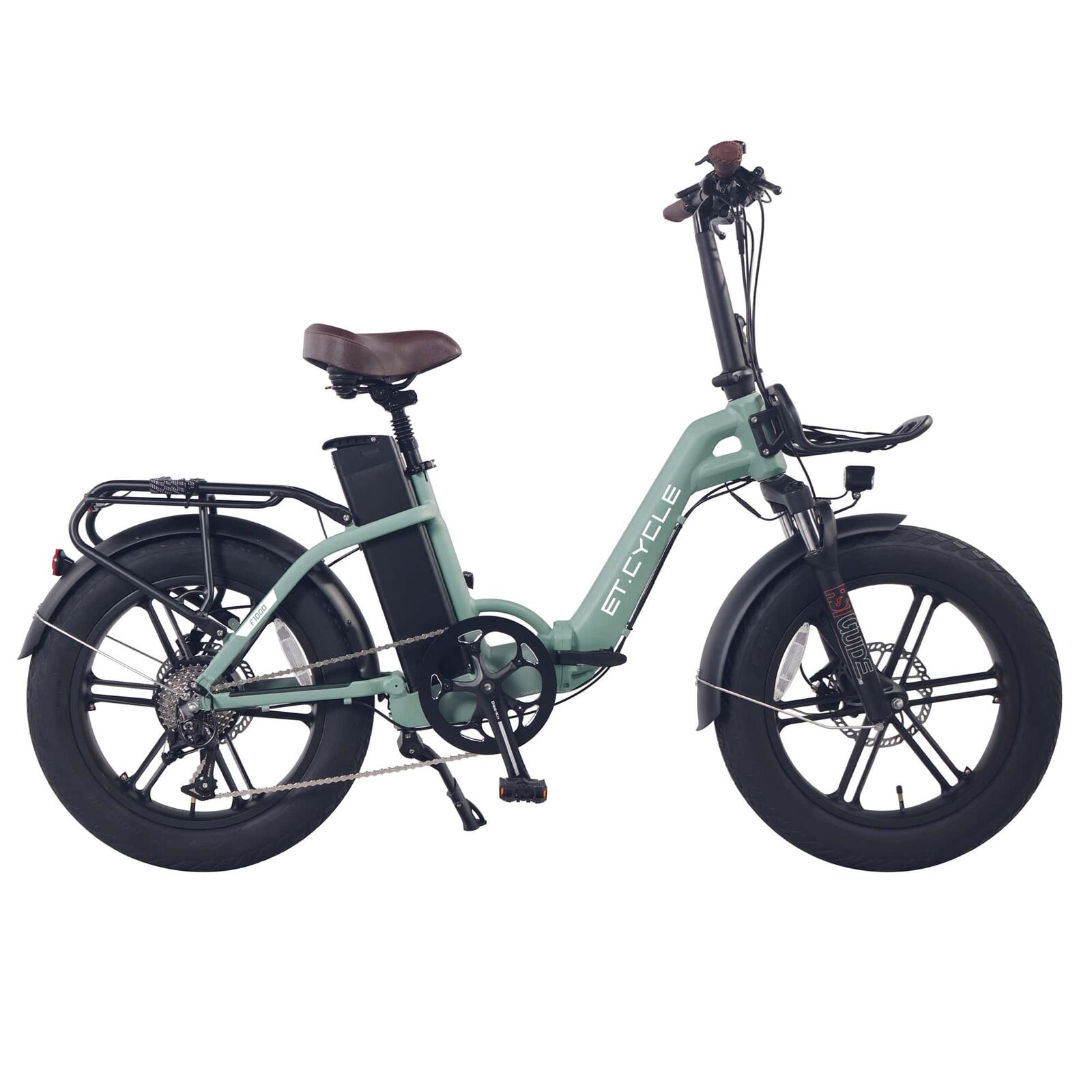

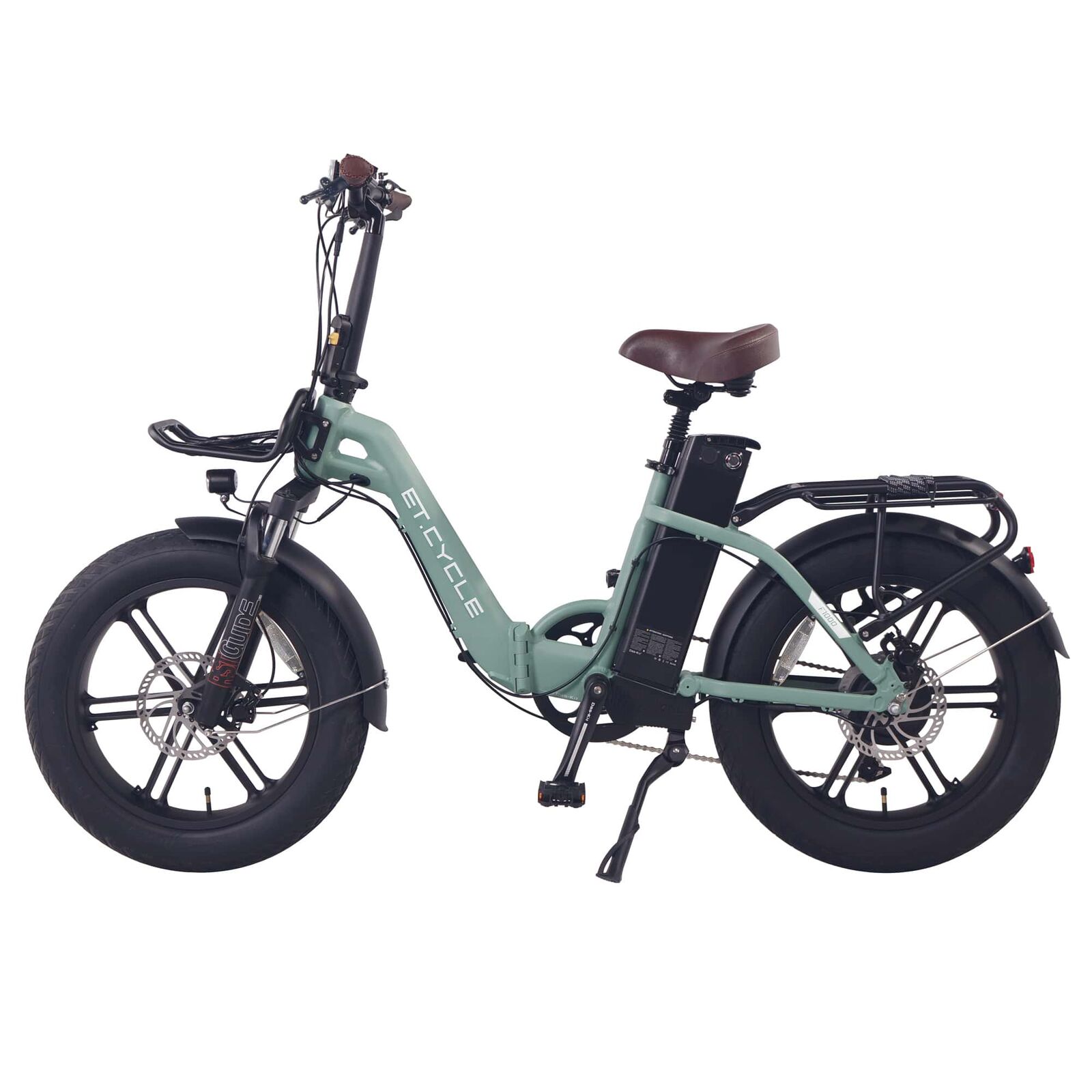

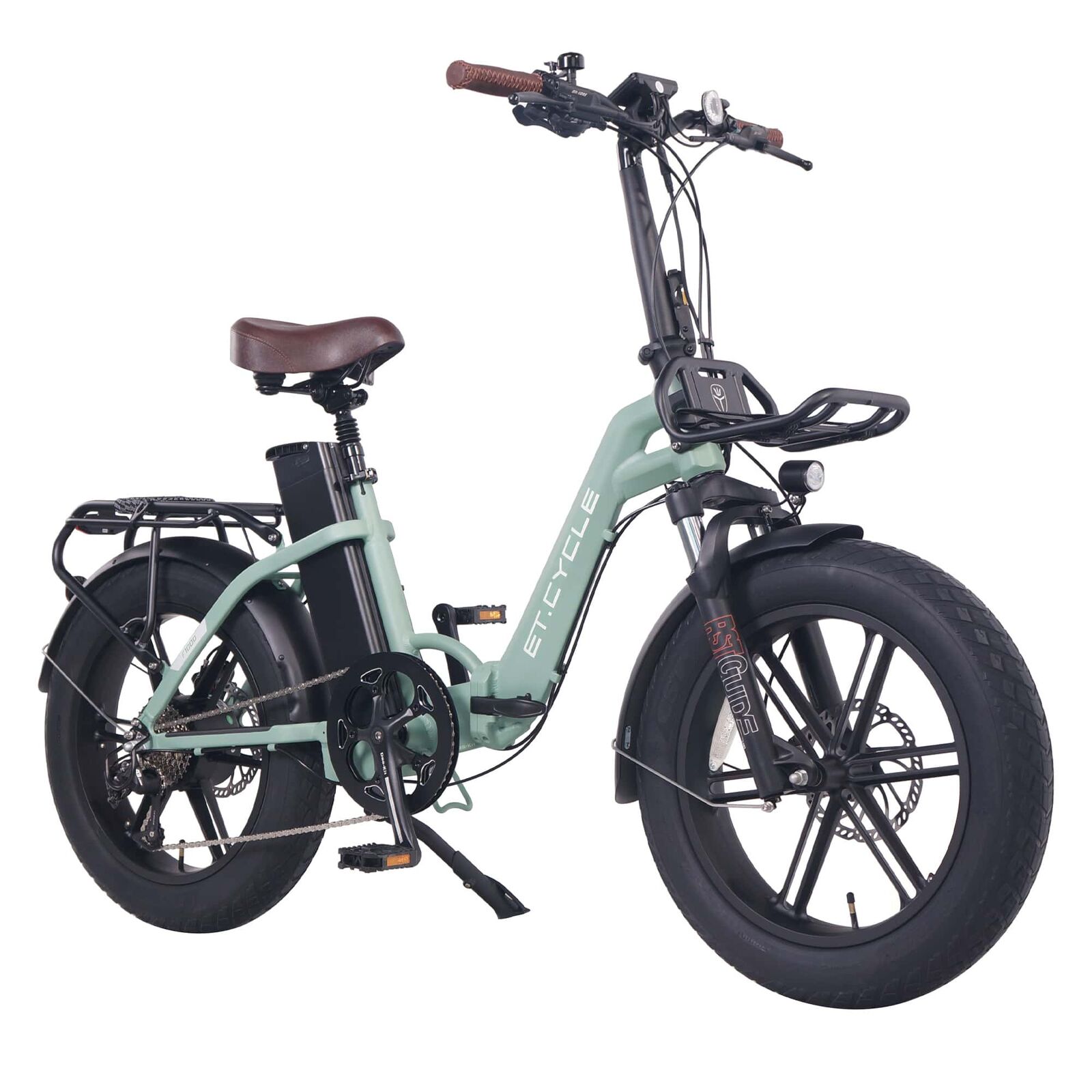

ET.Cycle F1000

Introduction

The 250W continuous Das-Kit motor and 20” x 4.0 inch fat tires from CST are perfect for rolling through the city, racing through deserts, or riding on trails, across beaches, or through mountain powder. The F-Series’ foldable mechanism allows for easy transport and convenient storage. Take anywhere. Store anywhere. The next-gen electric bike for next-gen riders. Your road is up to you!

Key Features

Ergonomic bicycle Grips
Extra comfort with Promax seat suspension and extra wide Selle Royal saddle
All important controls are easily accessible
Supplied with 48V to deliver a high-output power
Up to 750W Peak motor power
Removable and lockable 48V 1008Wh extra large battery capacity
Up to 150 km Battery Range (depending on the conditions)
A built-in USB port with 5V to charge mobile phones
Front and rear carriers with elastic straps
CST 20" x 4.0 inch all-terrain fat tires

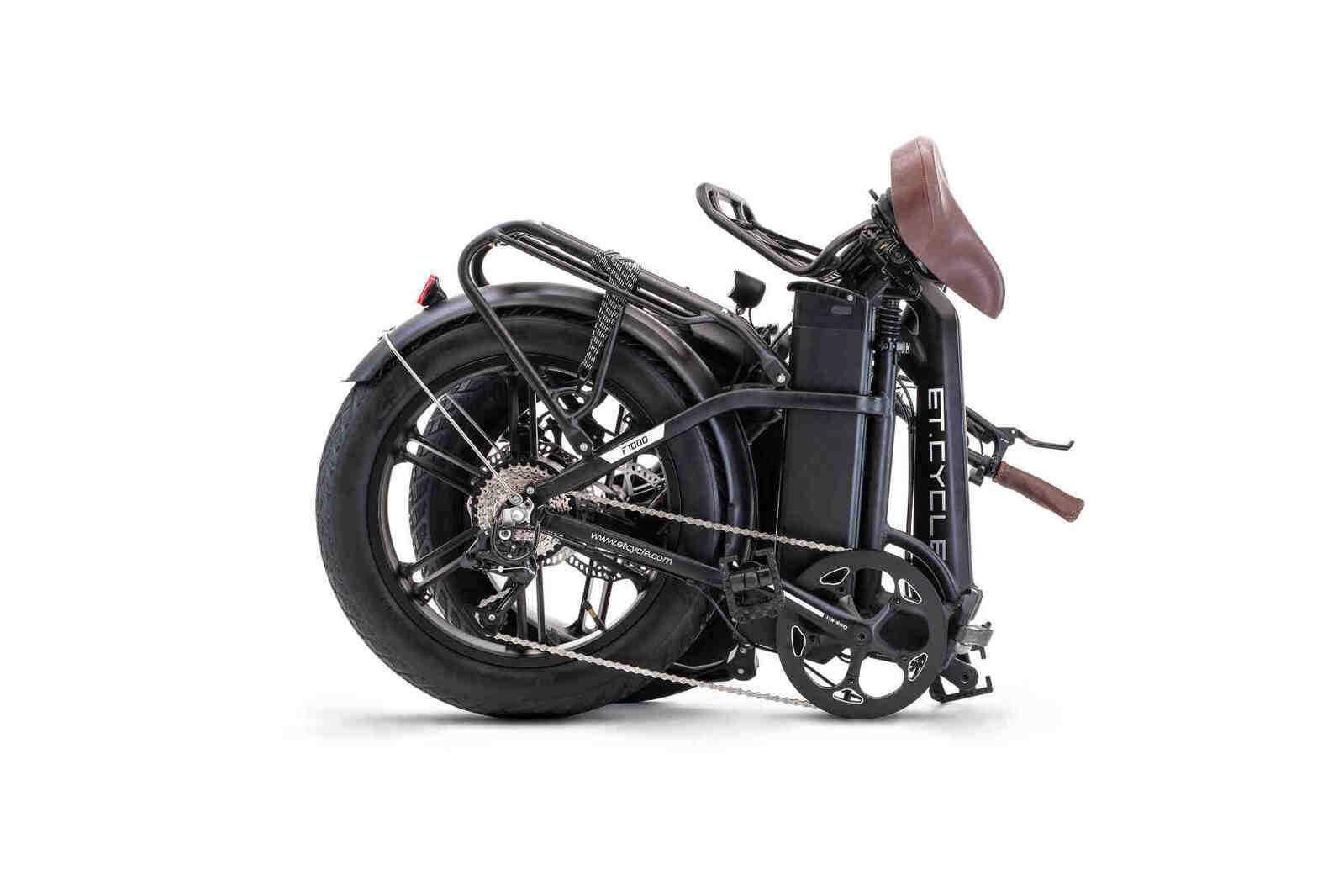

Easy folding mechanism

Das kit 250W-750W Motor

Foldable Frame

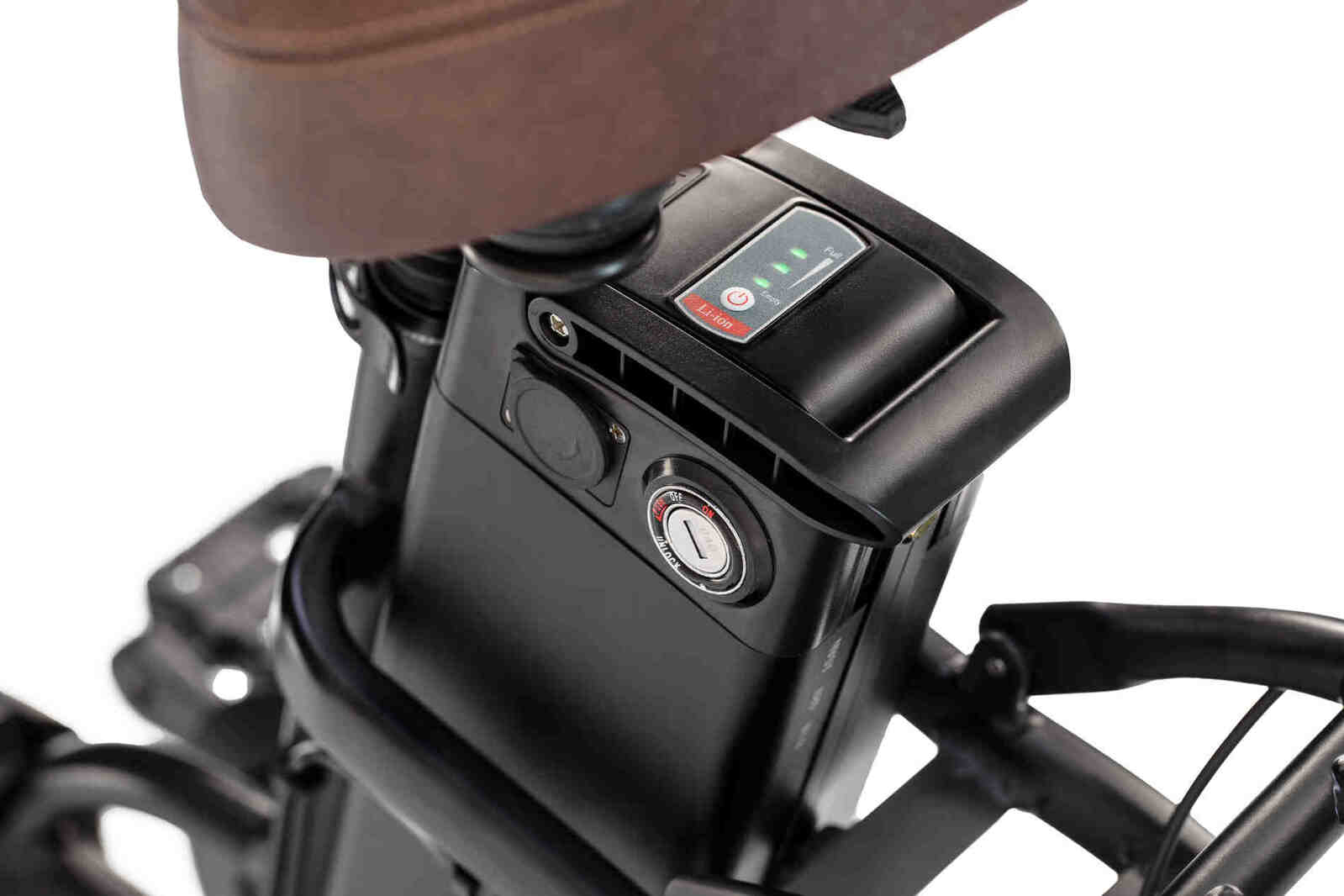

48V battery with USB

Front Rack

Specifications

	ET-Cycle F720	ET-Cycle F1000
Motor	Das-Kit, 48V 250W, 750W Peak Power, max speed 25 km/h	Das-Kit, 48V 250W, 750W Peak Power, max speed 25 km/h
Battery	Das-Kit, B1M-4815H, 720WH, with USB Port	Das-Kit, B1M-4821H, 1008 Wh, with USB Port

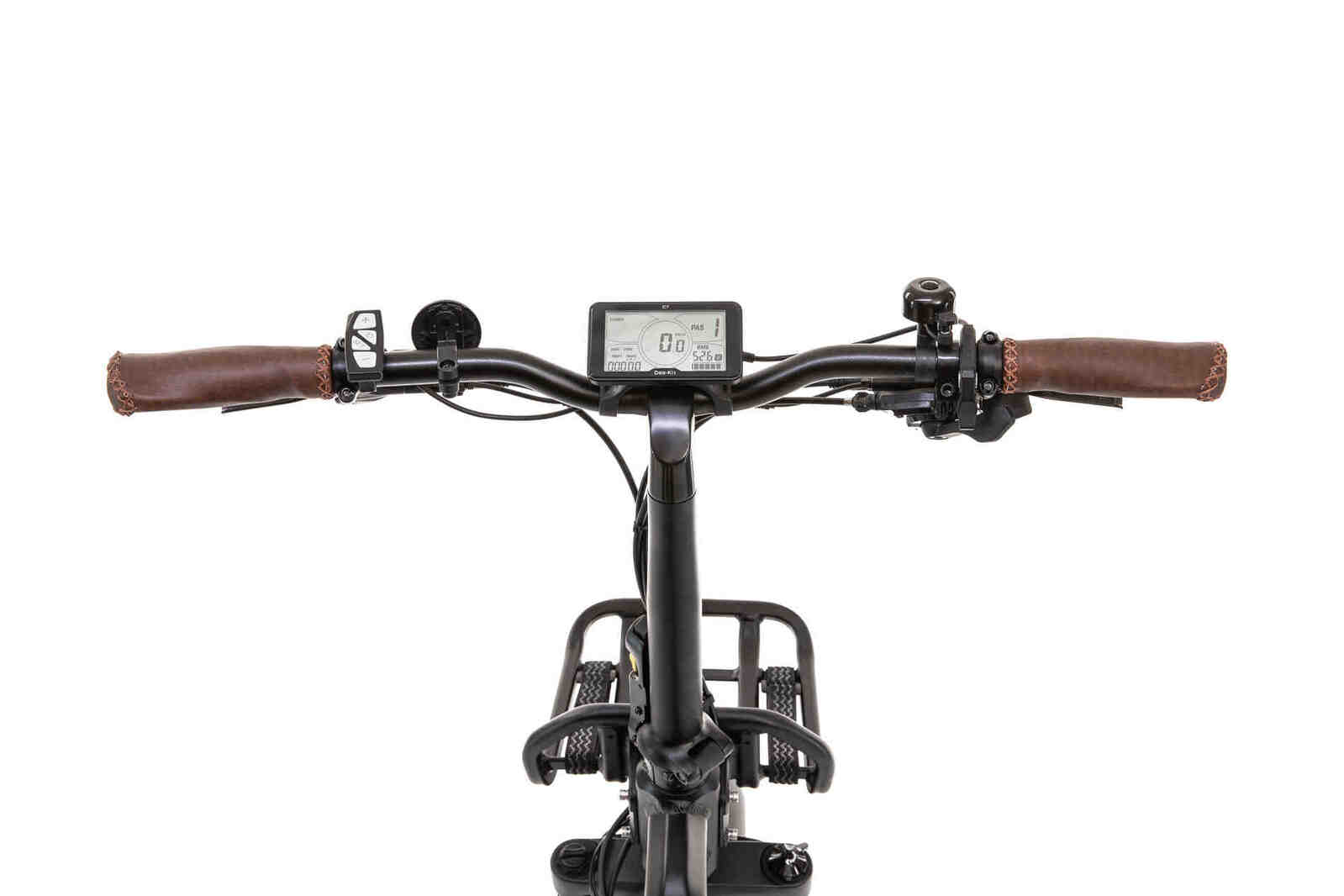

Display	Das-Kit C7 Advanced, LCD Display	Das-Kit C7 Advanced, LCD Display
Charger	Das-Kit, 48V 3A	Das-Kit, 48V 3A
Frame	Alu. 6061, 20" x 415MM, fat bike	Alu. 6061, 20" x 415MM, fat bike

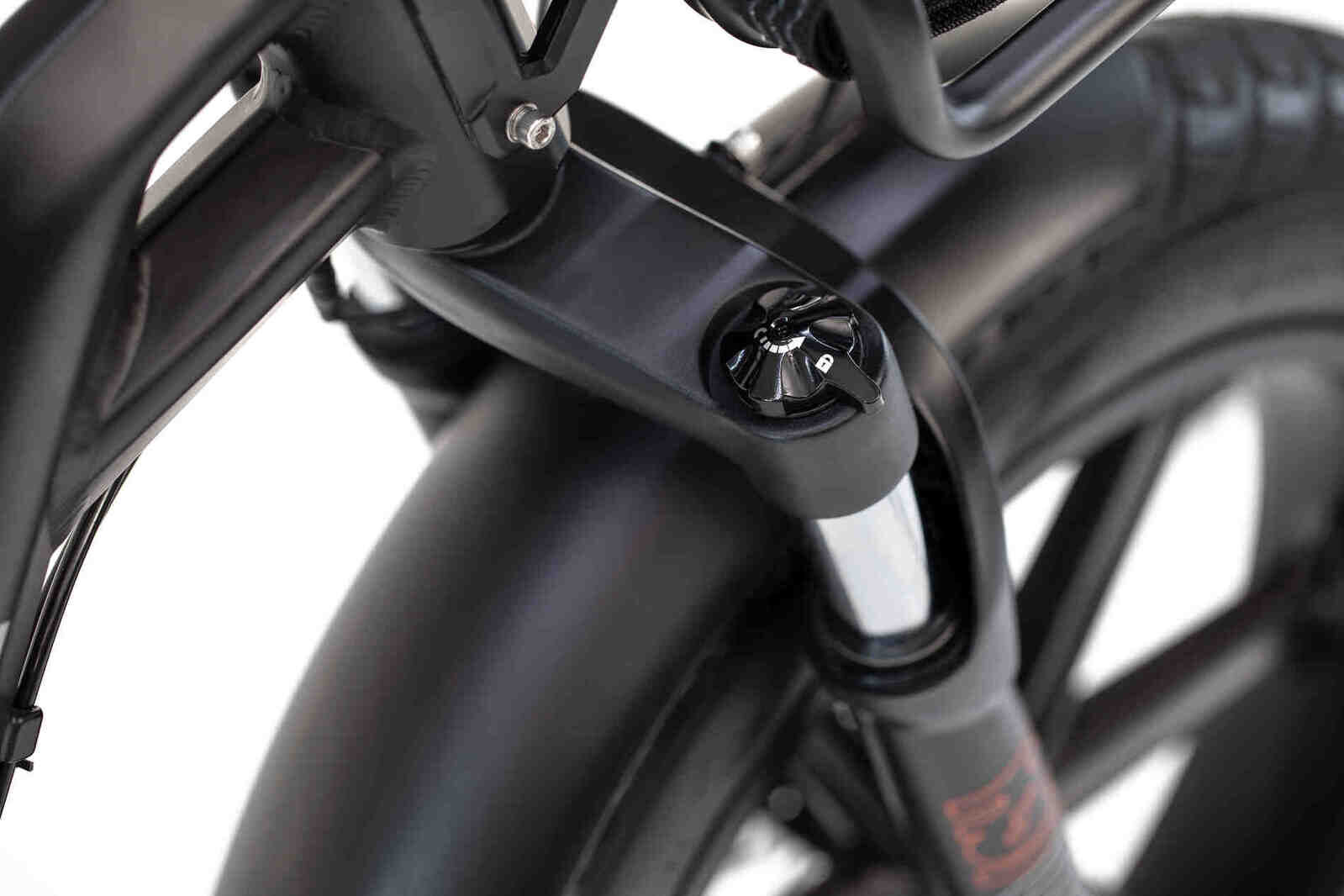

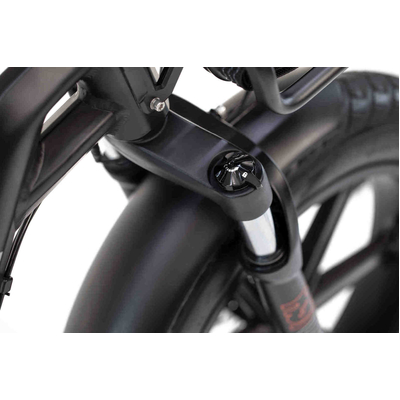

Forks	RST, Guide-T-20	RST, Guide-TNL-20

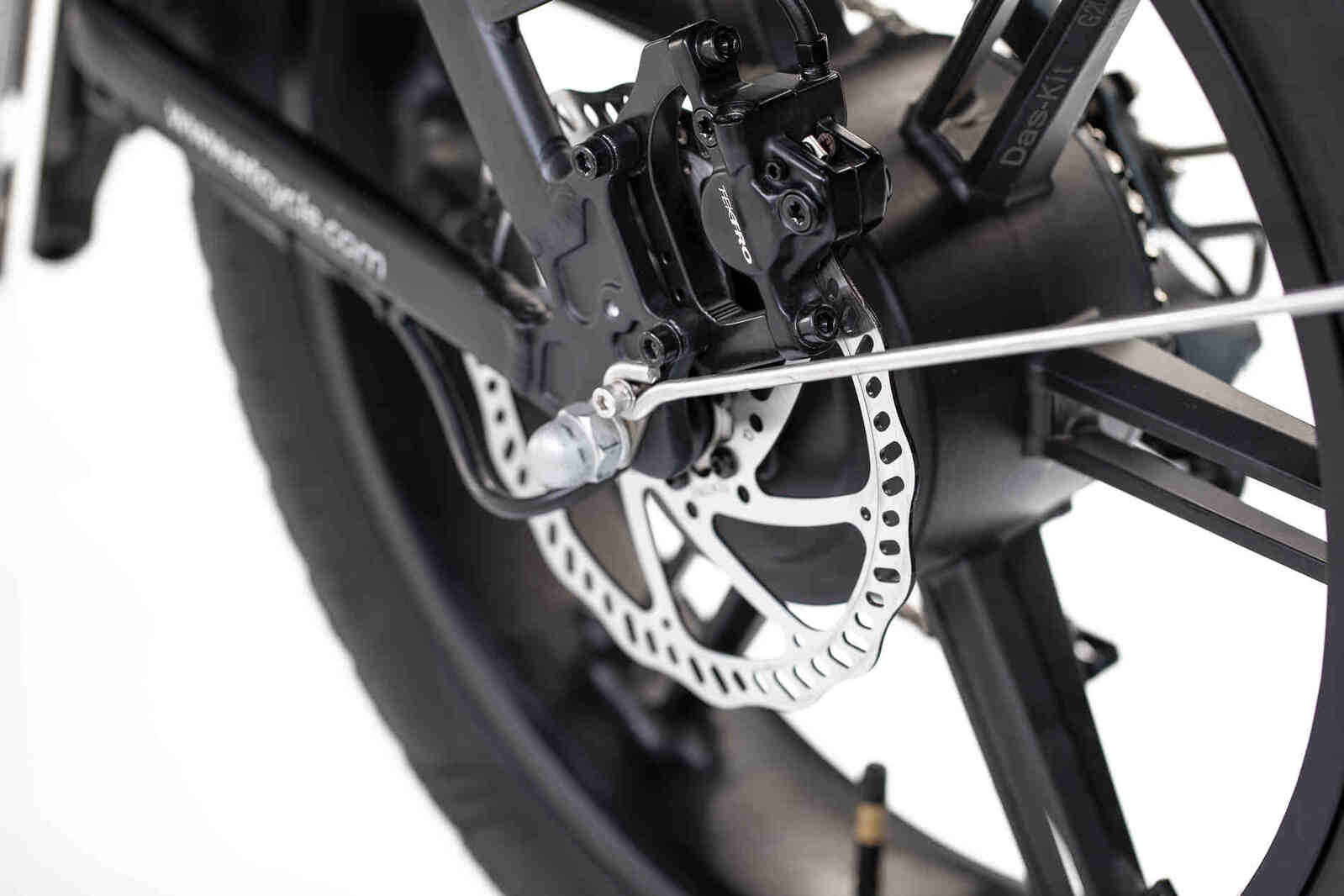

Braking System	Tektro Mechanical Disc	Tektro Hydraulic Disc
Gear Selector	8 speed	8 speed
Front Derailleur	Daskit Single	Daskit Single
Rear Derailleur	8-speed, 11-32T, Silver	8-speed, 11-32T, Silver
Saddle	Selle Royal, JUSTEK, Brown - Extra Large	Selle Royal, JUSTEK, Brown - Extra Large
Tyre	CST, CTC06, 20" x 4.0"	CST, CTC06, 20" x 4.0"
Handle Grips	Selle Royal, Brown	Selle Royal, Brown
Pedal	Wellgo, foldable pedal	Wellgo, foldable pedal
Range	Up to 110 km (depending on terrain conditions & power level settings)	Up to 150km (depending on terrain conditions & power level settings)
Weight	34 kg	34 kg

ET.Cycle F1000 Electric Folding Bike on Beach

Sizing Chart

cm			A	B	C	D	E
		Folded Dimension	Overall Length	Reach	Frame Size	Wheel Base	Min/Max Seat Height
F1000	160-185	90cm x 50cm x 70cm	170	65	41.5	114	84/103

Warranty

1-year warranty on all electronic parts (including battery, motor, controller, display, lights)
2-year warranty on the bike frame. For more warranty information visit our FAQS.
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.

About ET.Cycle

At ET.CYCLE, we’ve taken the spirit of American motorcycles and put it into the heart of our fat-tire electric bikes. Our goal is freedom across all terrains—city, sand, trail, snow. We’ve engineered strong frames, powerful drive systems, and motors to open up the city and the country to your imagination. Give your attitude an extra charge.

Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. For more information contact us on 0390695443. Visit our Youtube channel for Assembly and New Arrivals Videos. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

Our E-Bikes meet the following standards:

EPAC EN15194 (limited to 25km/h, 250W motor)
Chargers registered with Australian ERAC as approved for use in AU
Batteries meet international standards IEC 62133-2:2017 (inc battery management)

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

1 x ET.Cycle F1000 (Folded Dimension: 90cm x 50cm x 70cm)
1 x 48V charger
1 x tool kit

(P-ET-F1000-F720)

SKU	P-ET-F1000-F720
Brand	ET.Cycle
Shipping Weight	40.0000kg
Shipping Width	0.500m
Shipping Height	0.690m
Shipping Length	1.010m
Shipping Cubic	0.348450000m3
