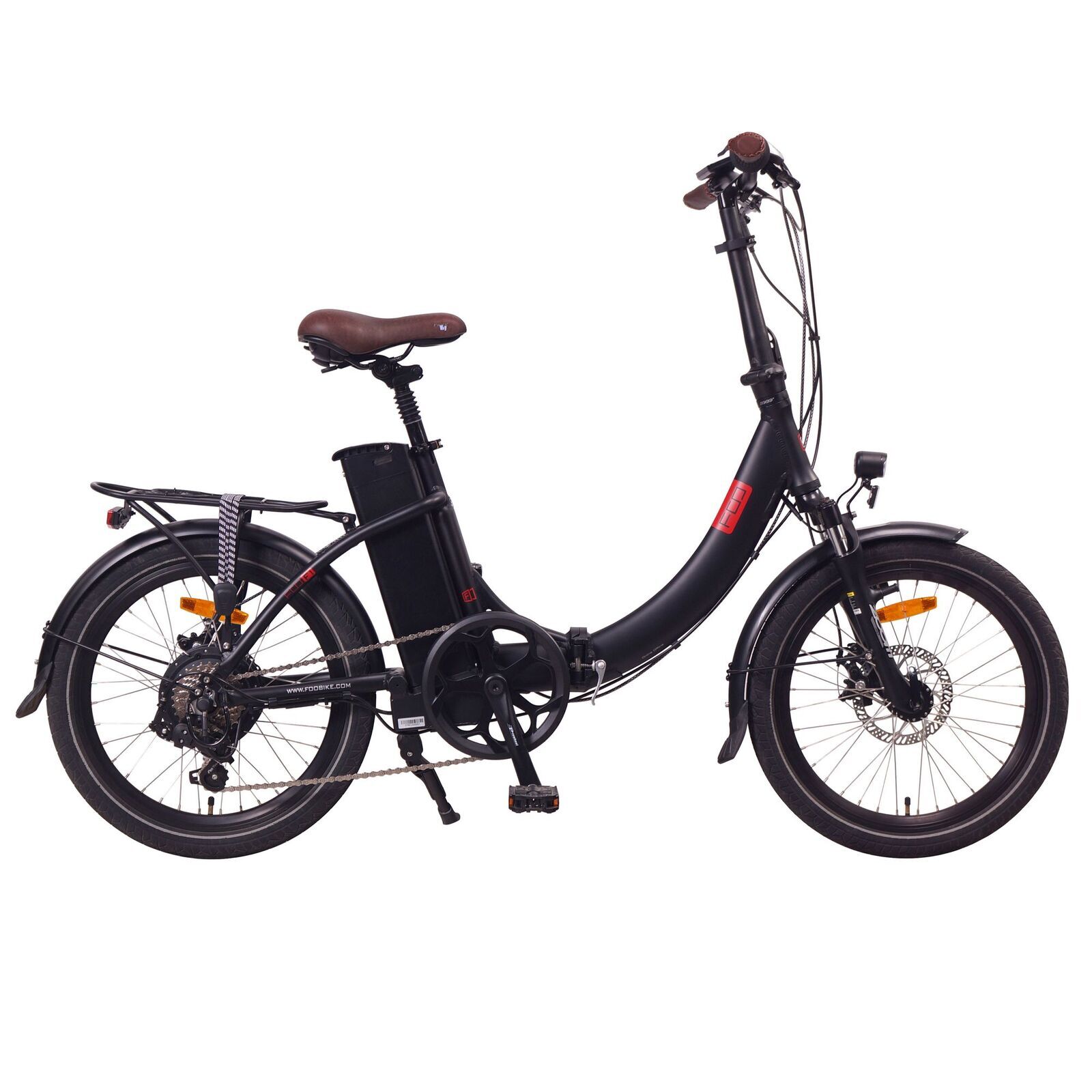

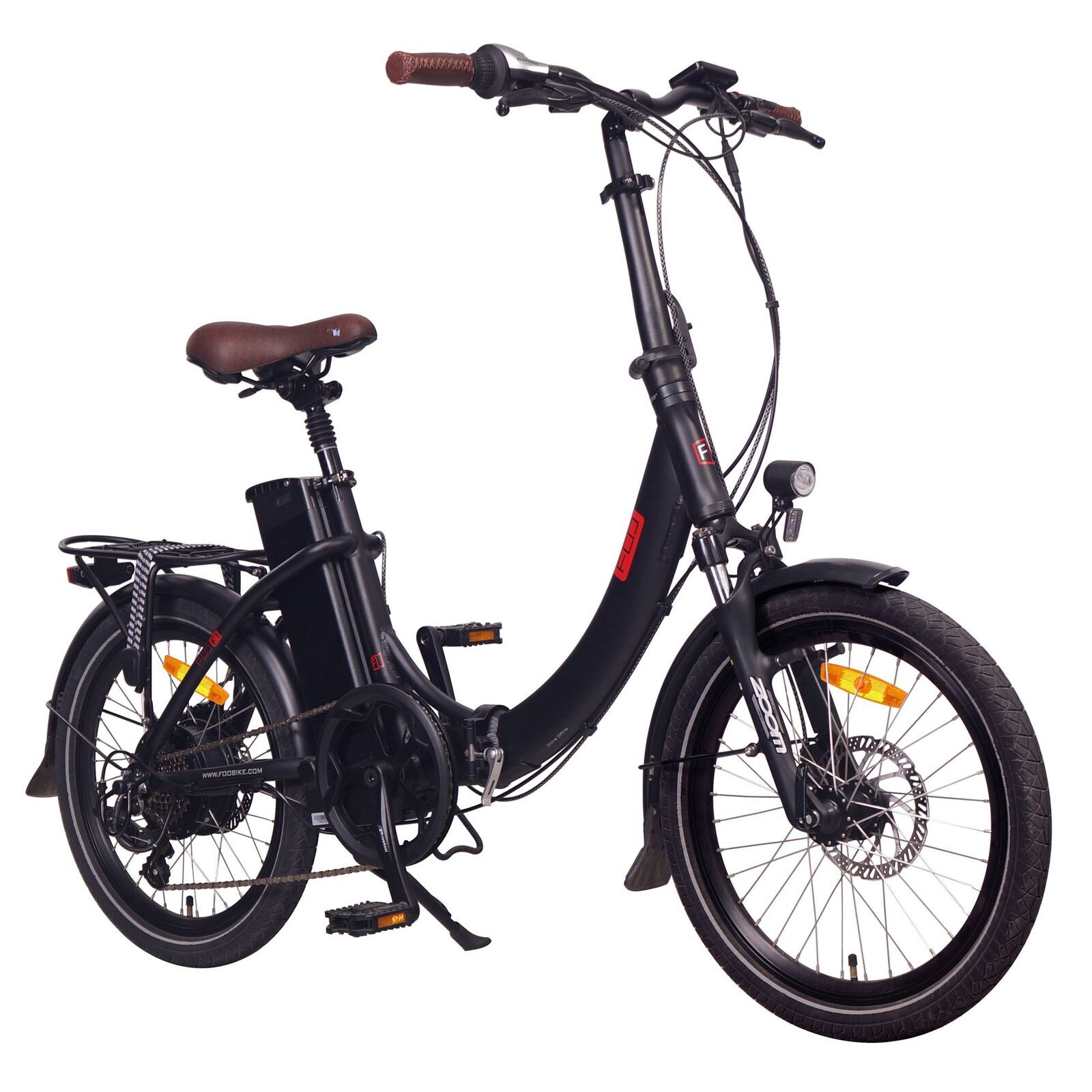

FOO F1

Introduction

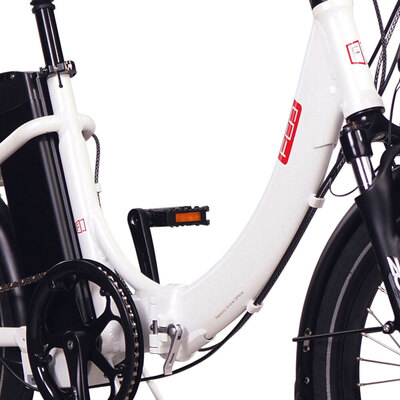

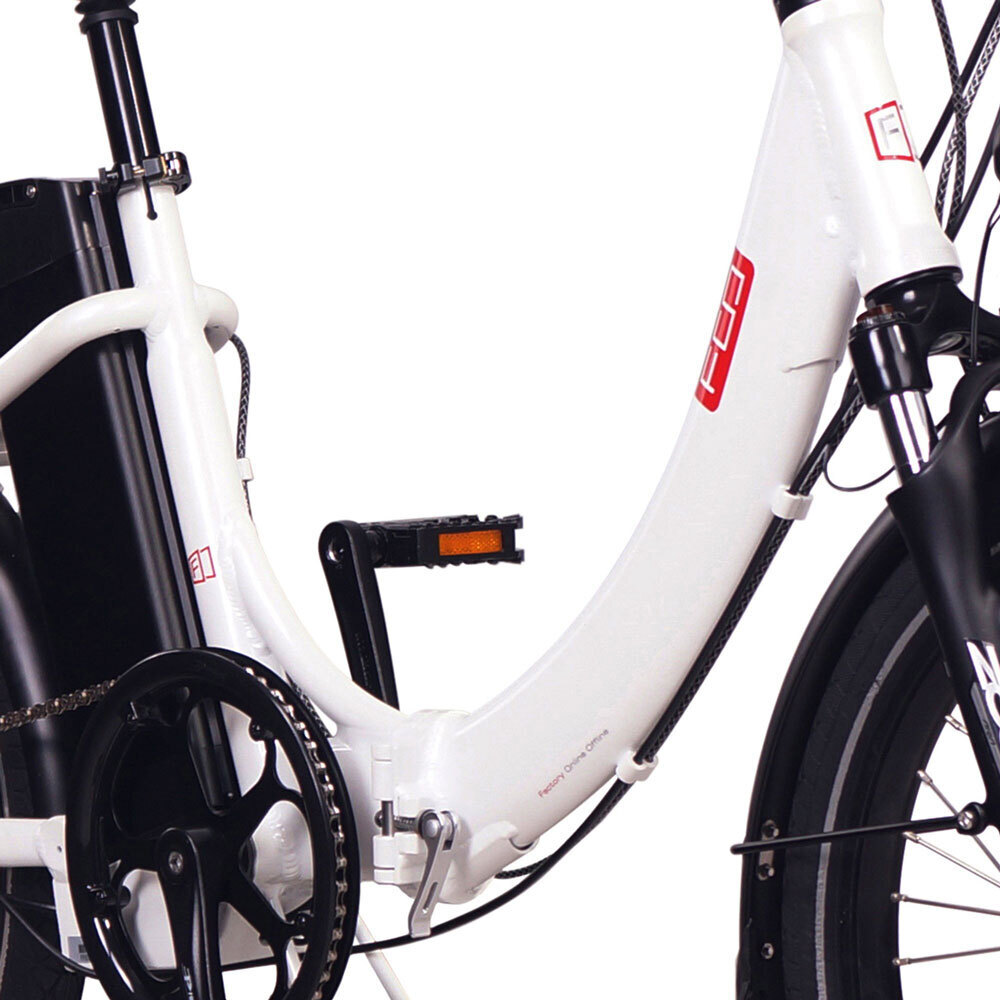

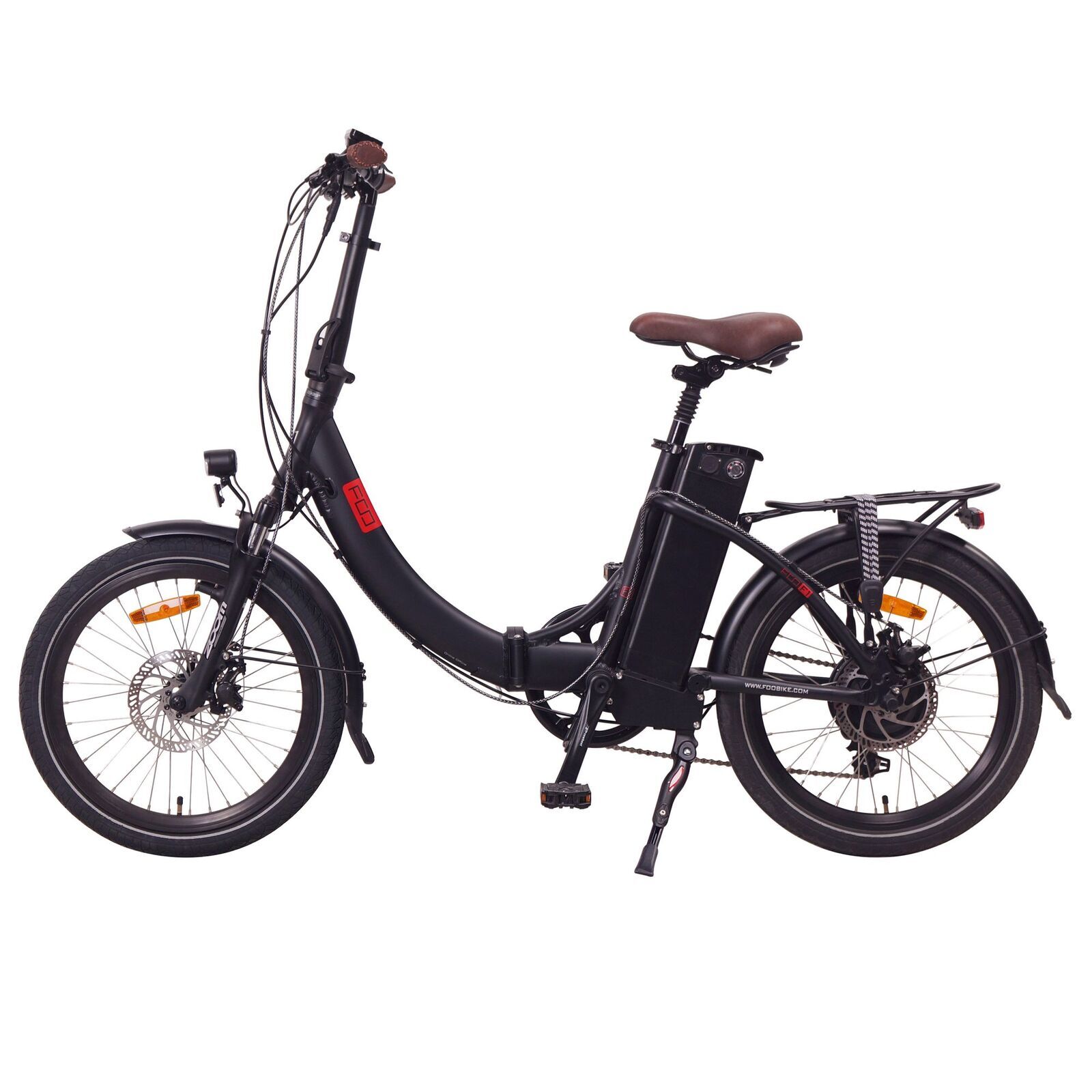

Easy to fold with a unique, low and stable frame: The Foo F1 frame combines the upper and lower tubes to form a stable, centrally placed tube, with a strong frame and a relatively low entry. It is designed so that it can be folded without tools for quick storage and transportation. Frame, stem, pedals and saddle are all foldable for exceptional flexibility.

Key Features

Ergonomic bicycle Grips
Extra comfort with Promax seat suspension and extra wide Selle Royal saddle

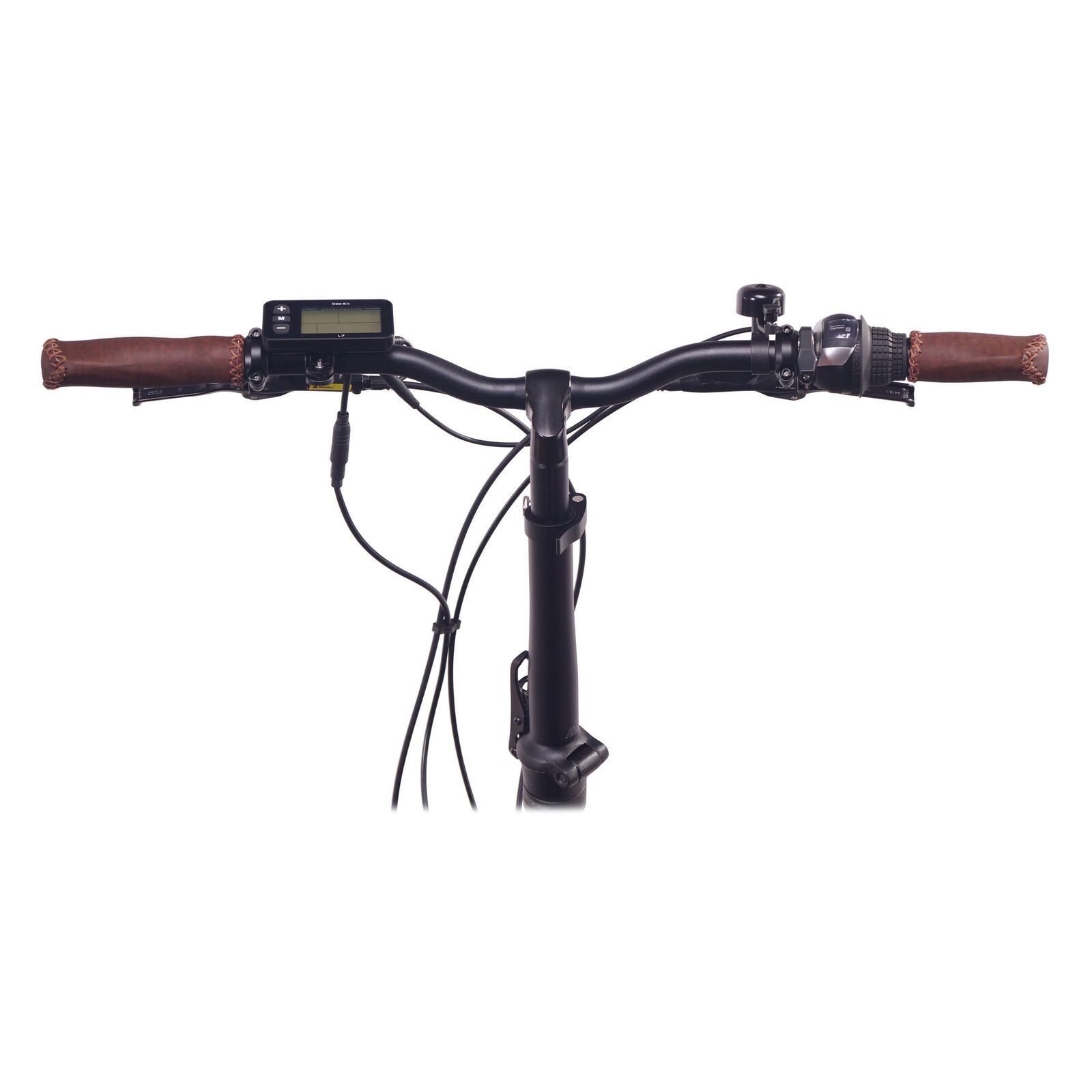

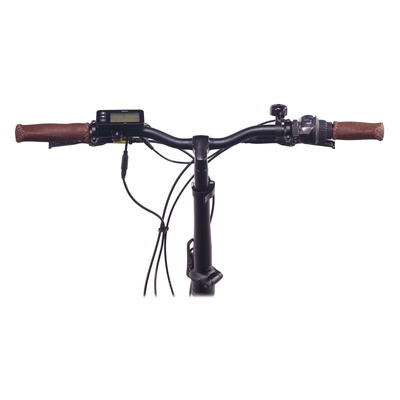

All important controls are easily accessible
Supplied with 36V to deliver a high-output power
Up to 350W Peak Motor Power
Removable and lockable 36V 468Wh extra large battery capacity
Up to 70 km Battery Range (depending on terrain conditions & power level settings)

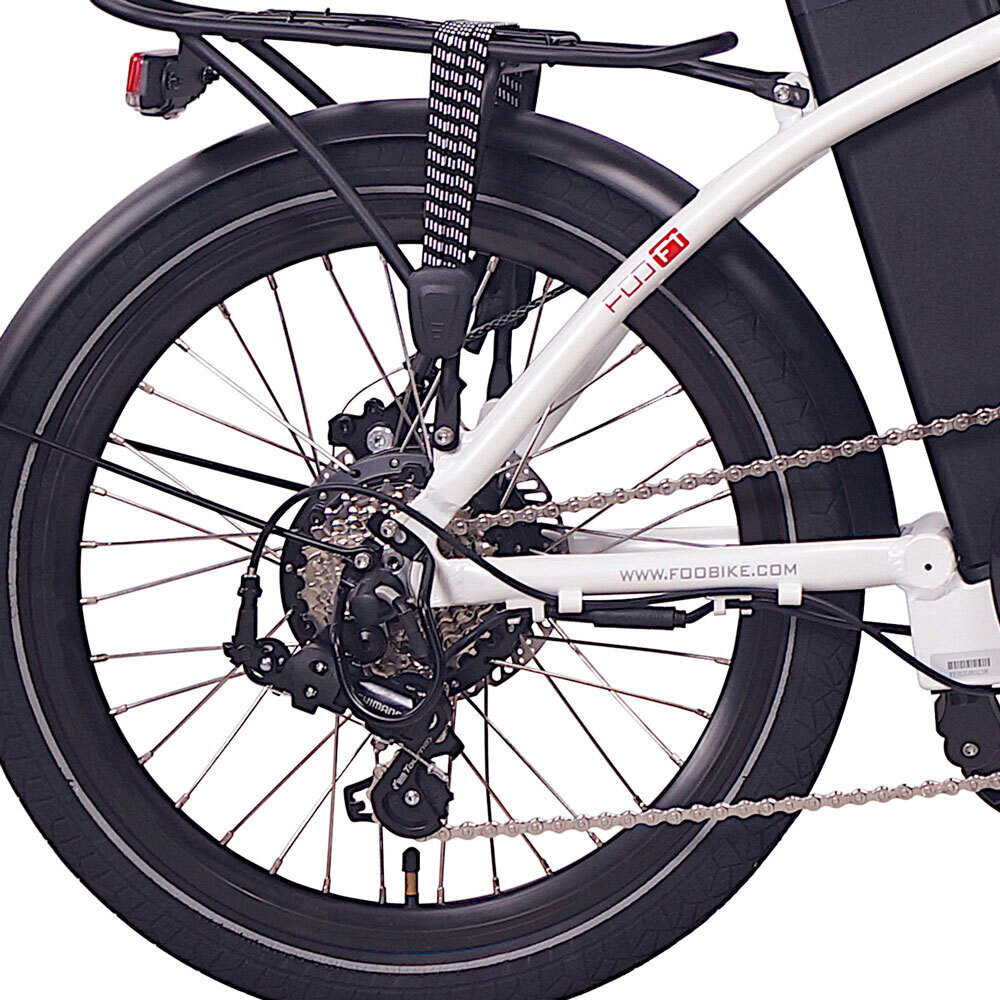

Rear carriers with elastic straps

Das-Kit Motor

Das-Kit L7 Display

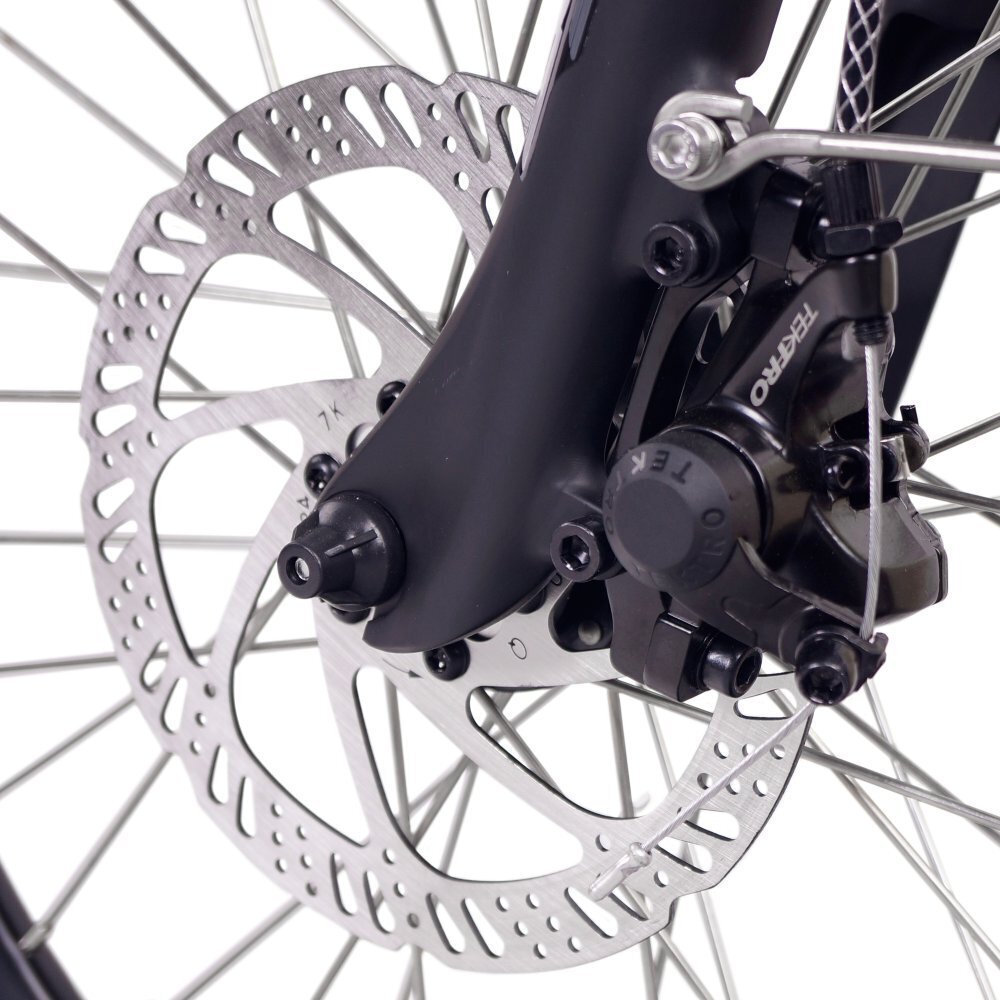

Tektro Disc Brakes

Folding Mechanism

Specifications

	FOO F1
Motor	Das-Kit, 36V, 250W, 350W Peak Power, max speed 25 km/h
Battery	Das-Kit, B1U-3613H, 36V 13 AH, 468WH
Display	Das-Kit L7 Advanced, LCD Display
Charger	Das-Kit, 36V 2A
Frame	Alu.6061, 20"
Forks	CH190-20
Braking System	Tektro, MD-M280, Mechanical Disc
Gear Selector	7 speed
Front Derailleur	/
Rear derailleur	Shimano, Tourney, RD-FT35, 7-speed, 14-28T
Saddle	Selle Royal, JUSTEK, Black
Tyre	CST, C1381, 20 x 1.95"
Handle Grips	Selle Royal, Black
Pedal	Wellgo, Black
Range	Up to 70 km (depending on terrain conditions & power level settings)
Weight	23 kg

Sizing Chart

Cm		A	B	C	D	E
		Overall Length	Reach	Frame Height	Wheel Base	Min/Max Seat Height
FOO F1	165-188	188	43	46	114	90/111

Warranty

1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
2 year warranty on the bike frame
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.

About FOO

At FOO, we’ve taken the spirit of American motorcycles and put it into the heart of our fat tire electric bikes. Our goal is freedom across all terrains—city, sand, trail, snow. We’ve engineered strong frames and powerful drive systems and motors to open up the city and the country to your imagination. Give your attitude an extra charge.

Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

Our E-Bikes meet the following standards:

EPAC EN15194 (limited to 25km/h, 250W motor)
Chargers registered with Australian ERAC as approved for use in AU
Batteries meet international standards IEC 62133-2:2017 (inc battery management)

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

1 x FOO F1
1 x 36V charger
1 x tool kit

(P-F1)

SKU	P-F1
Brand	FOO
Shipping Weight	29.0000kg
Shipping Width	0.400m
Shipping Height	0.680m
Shipping Length	0.880m
Shipping Cubic	0.239360000m3
