NCM Venice +


Introduction

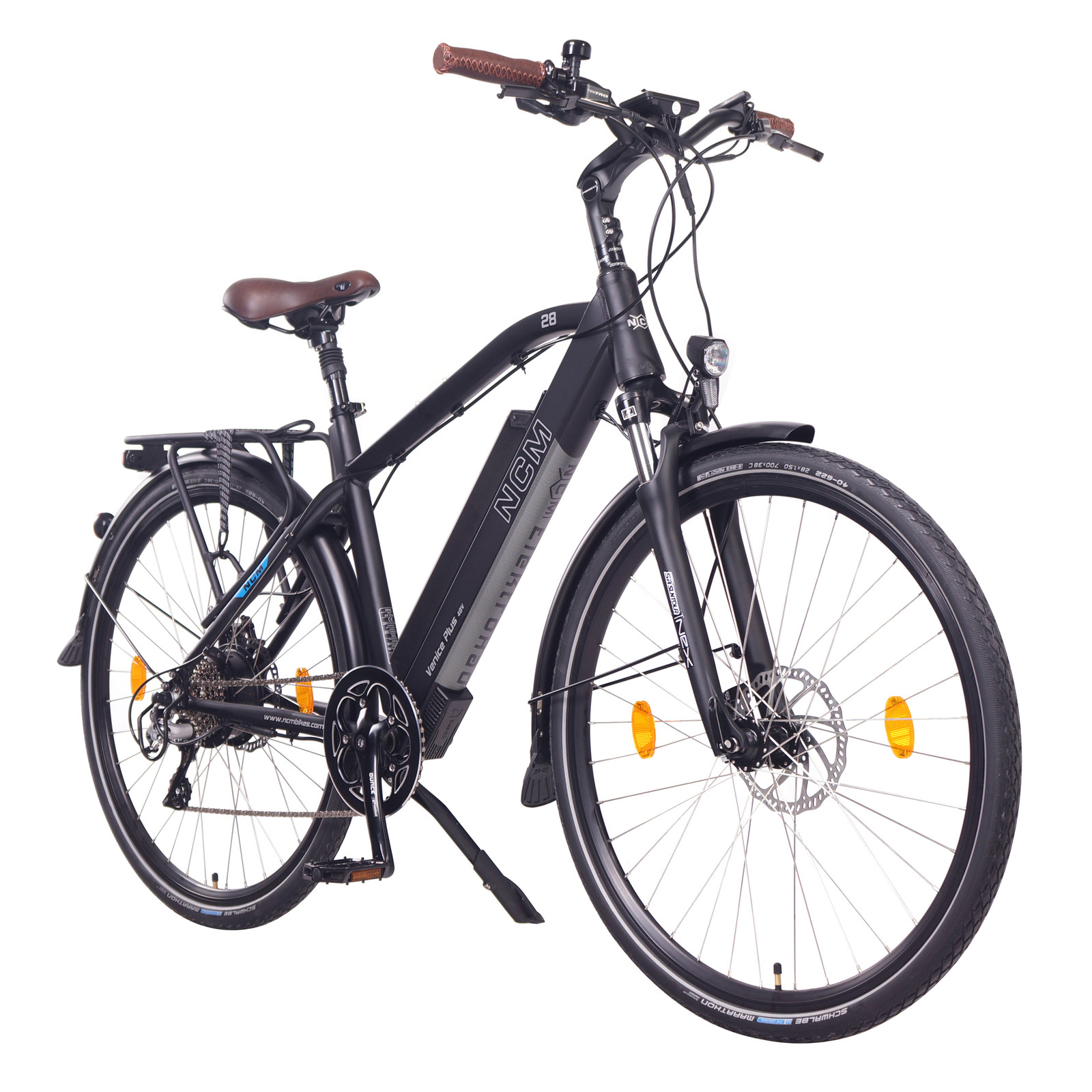

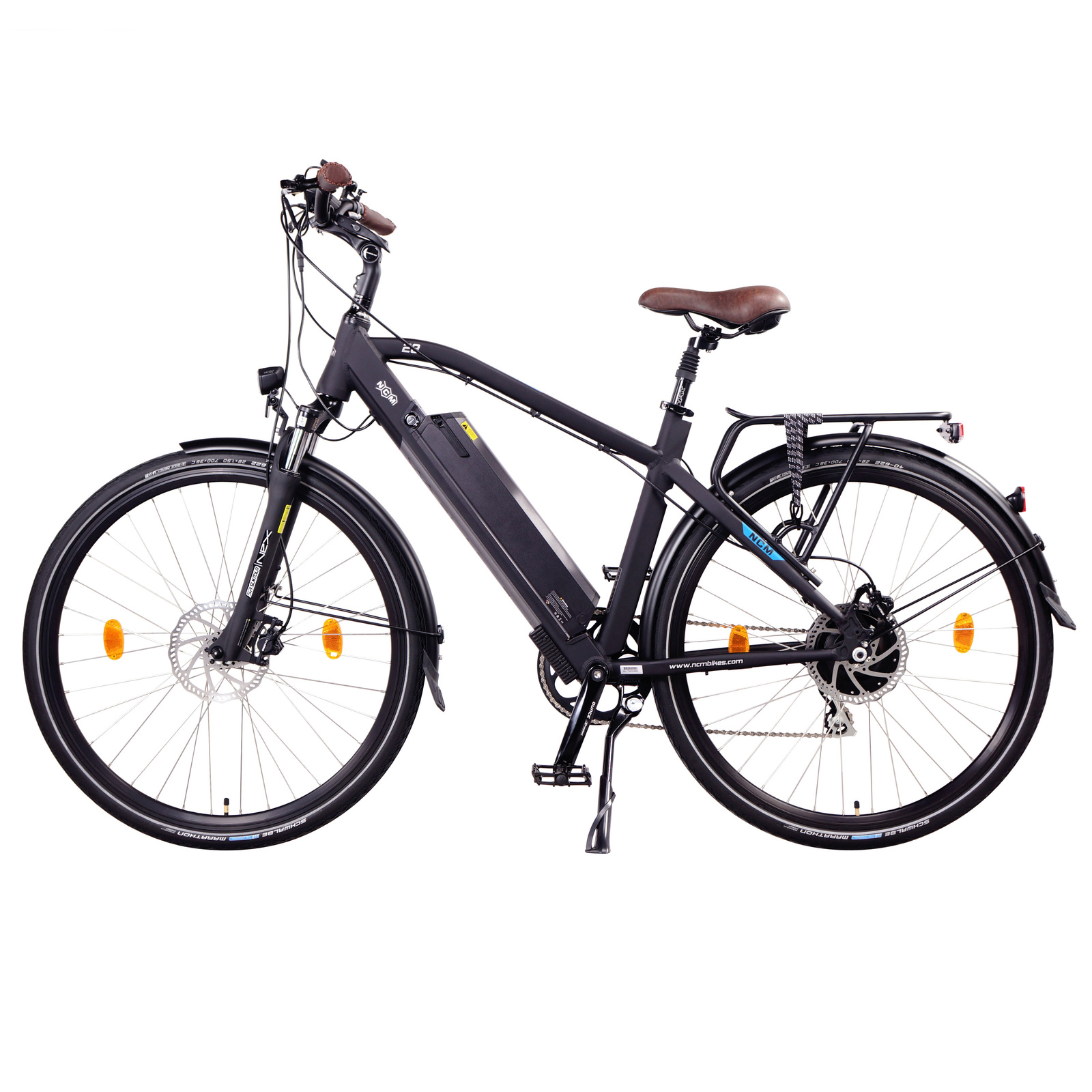

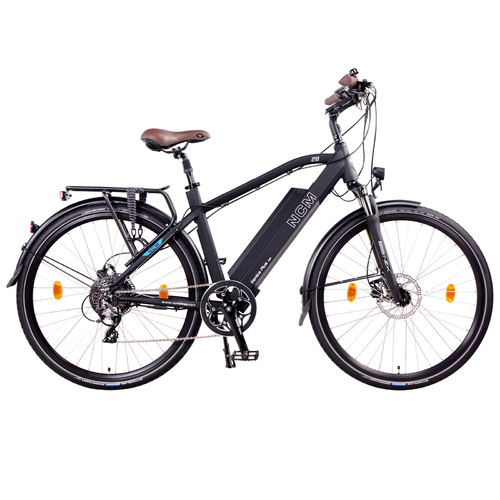

Inspired by the Romance on The great Italian City, The NCM Venice + is both stylish and very practical. Perfect for running around the city, with a useful rack to the rear for extra storage. This E-bike is designed with a tough aluminium frame, and an adjustable handlebar/stem setup, with a sprung seat for improved comfort.

Key Features

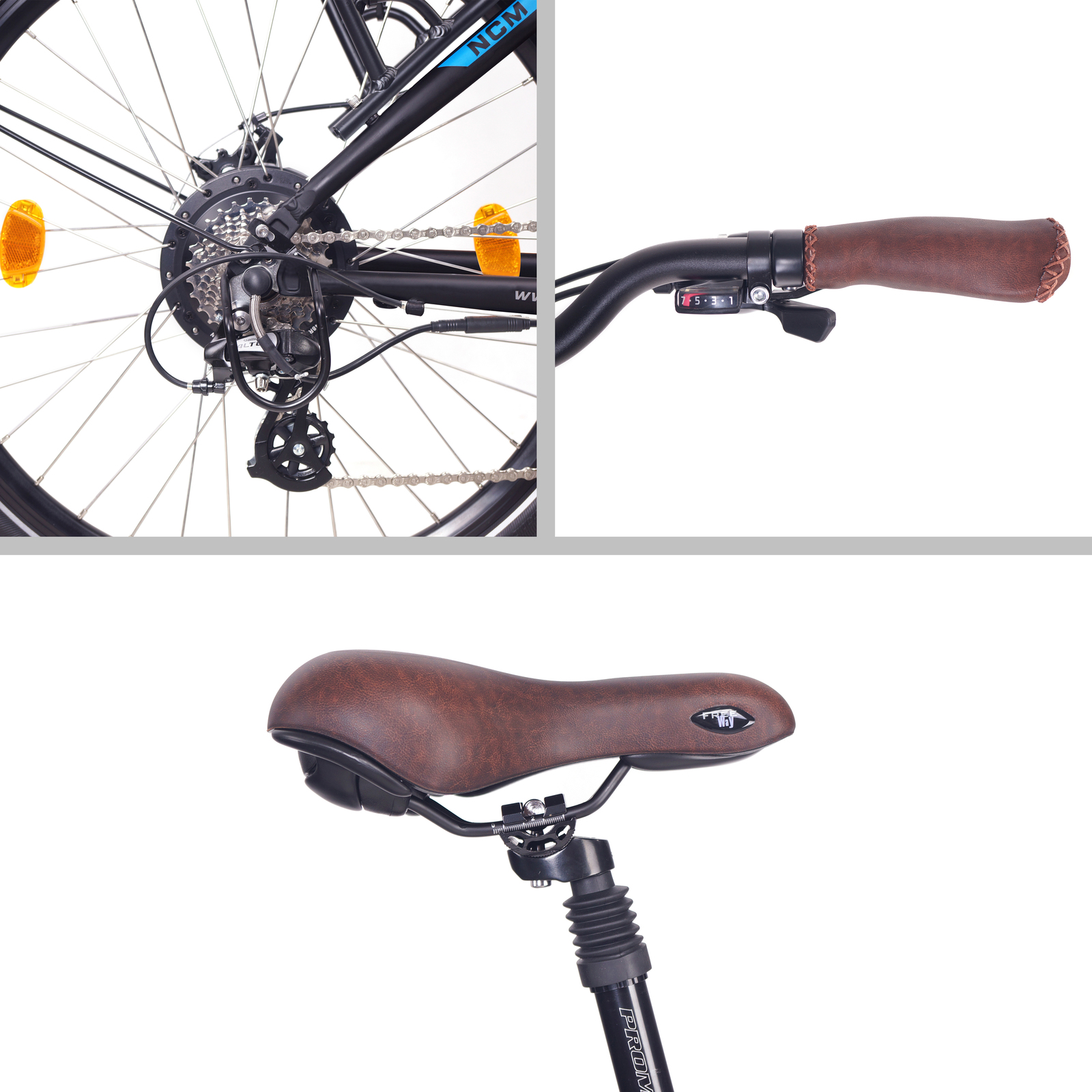

  • Ergonomic bicycle Grips
  • Comfortable sitting posture
  • All important controls easily accessible
  • Supplied with 48V to deliver a high output power
  • over 768Wh capacity for a longer distance
  • reach up to 150 km (depending on the conditions)

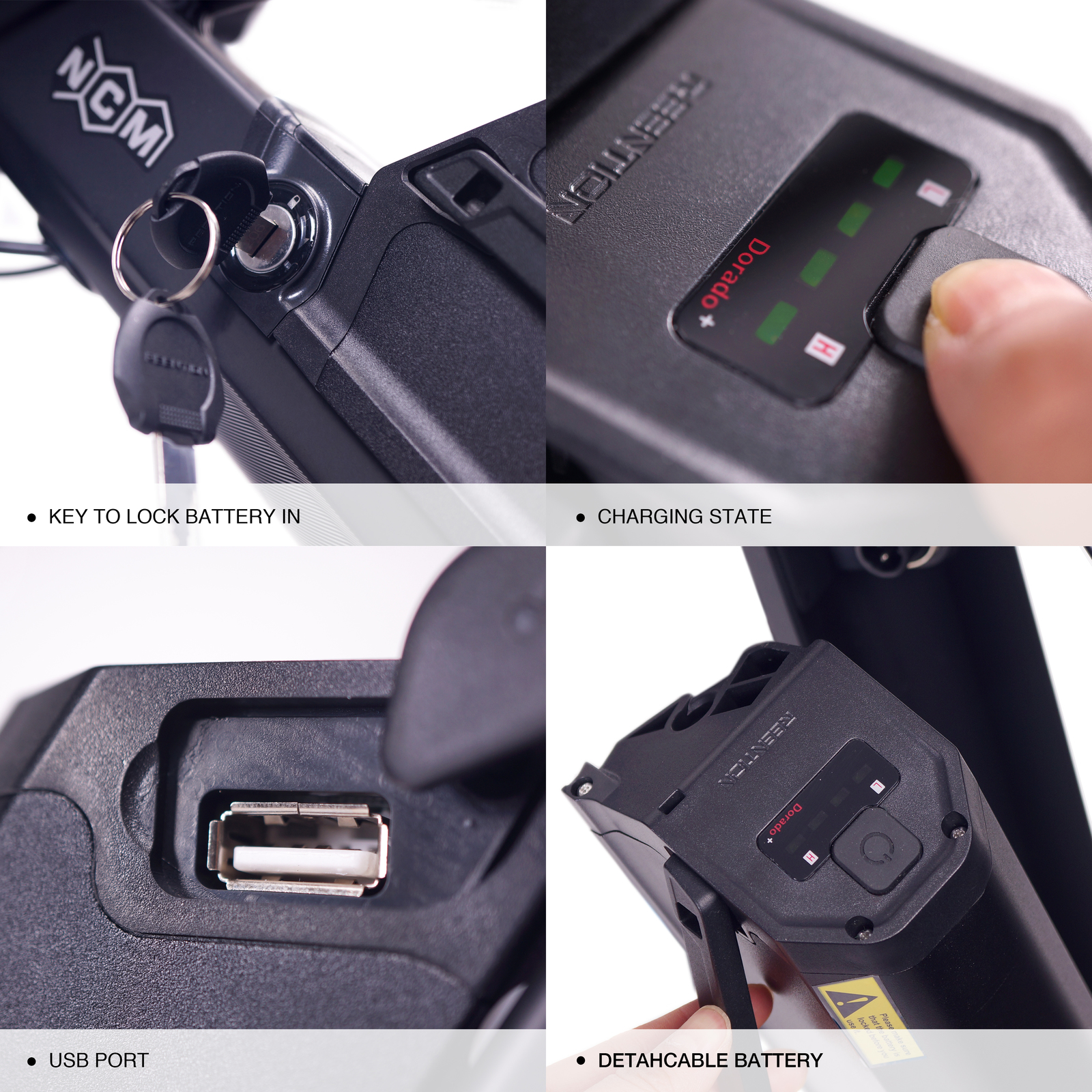

  • easily removable battery so you can charge it anywhere
  • A built-in USB port with 5V to charge mobile phones

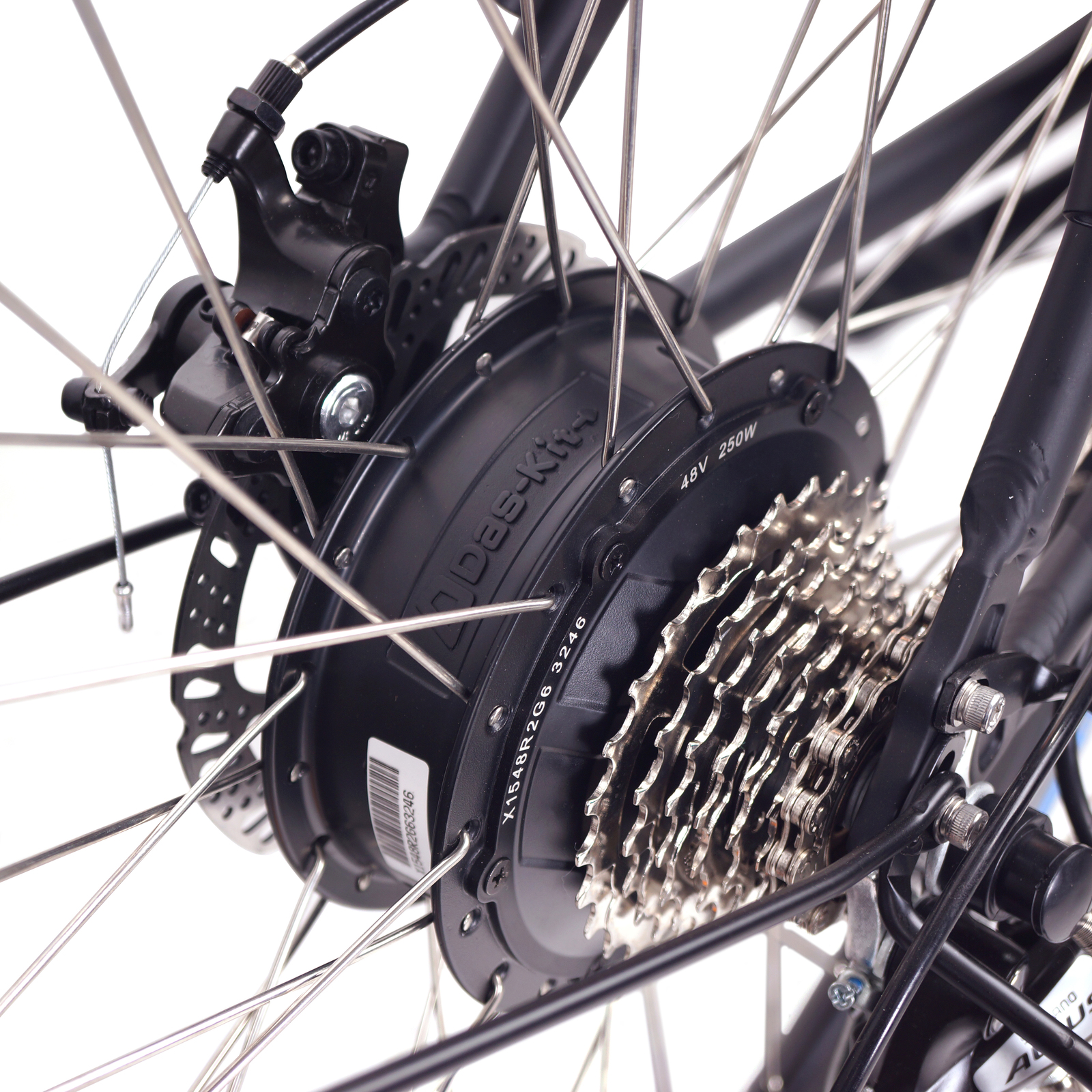

Das kit 250W Motor

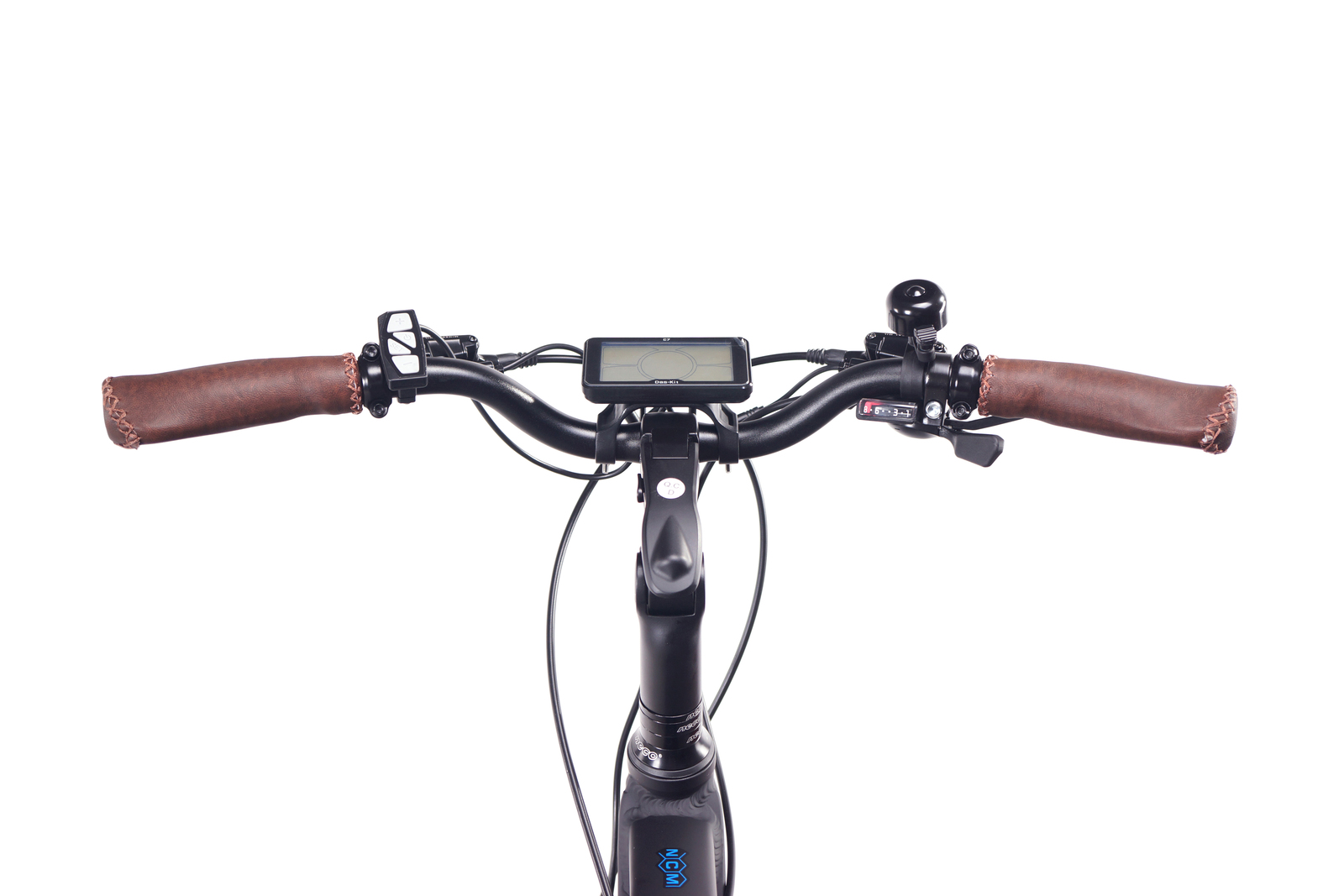

Das Kit C7 Display

48V battery with USB

Schwalbe Tyres

Specifications

  NCM Venice NCM Venice +
Motor Das-Kit X15 motor, 48V 250W, max speed 25 km/h Das-Kit X15 motor, 48V 250W, max speed 25 km/h
Battery DEHAWK i5-4813H 624Wh Panasonic 48v 13Ah DEHAWK i5-4816H 768Wh Panasonic 48v 16Ah
Display Das-Kit L7, LCD Display Das-Kit C7, LCD Display

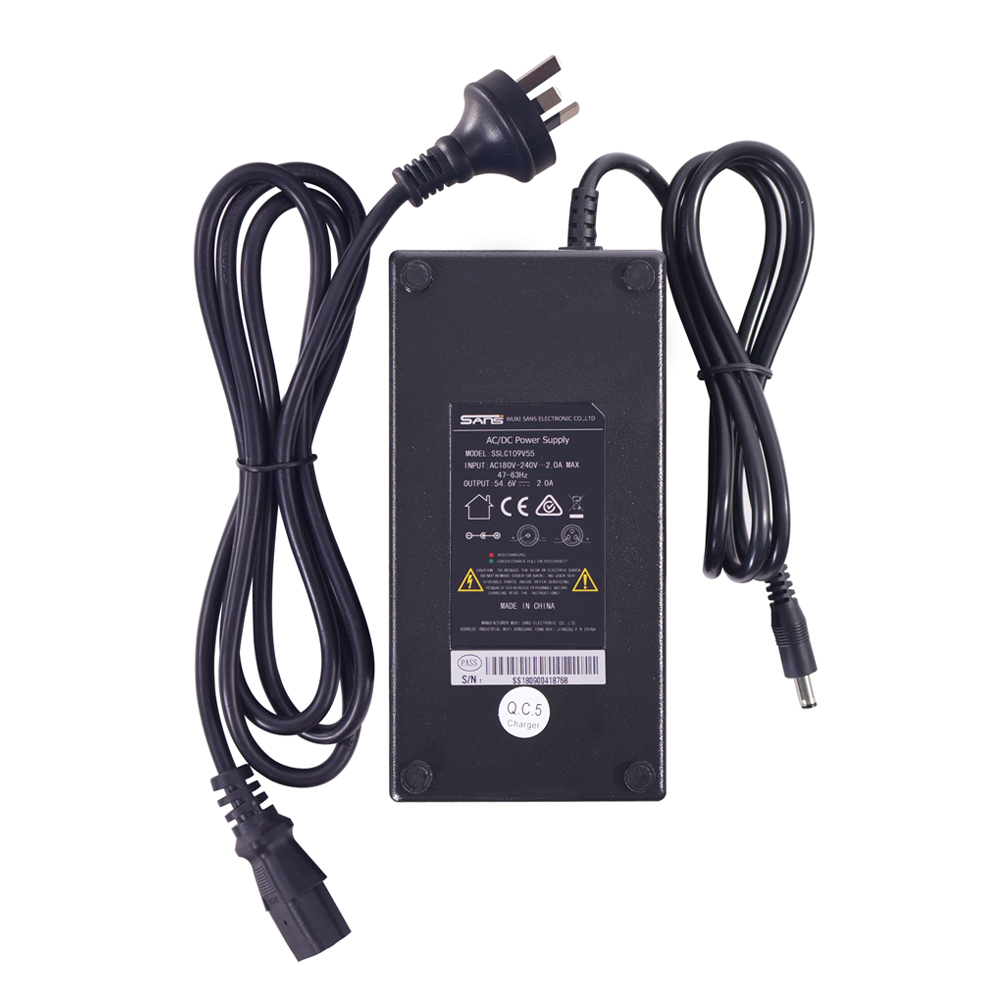

Charger SANS 48V 2A SANS 48V 2A
Frame Alu. 6061, 480mm Alu. 6061, 480mm
Forks Suntour NEX 28 63mm Suntour NEX 28 63mm
Braking System Tektro Mechanical Disc

Tektro Hydraulic Disc

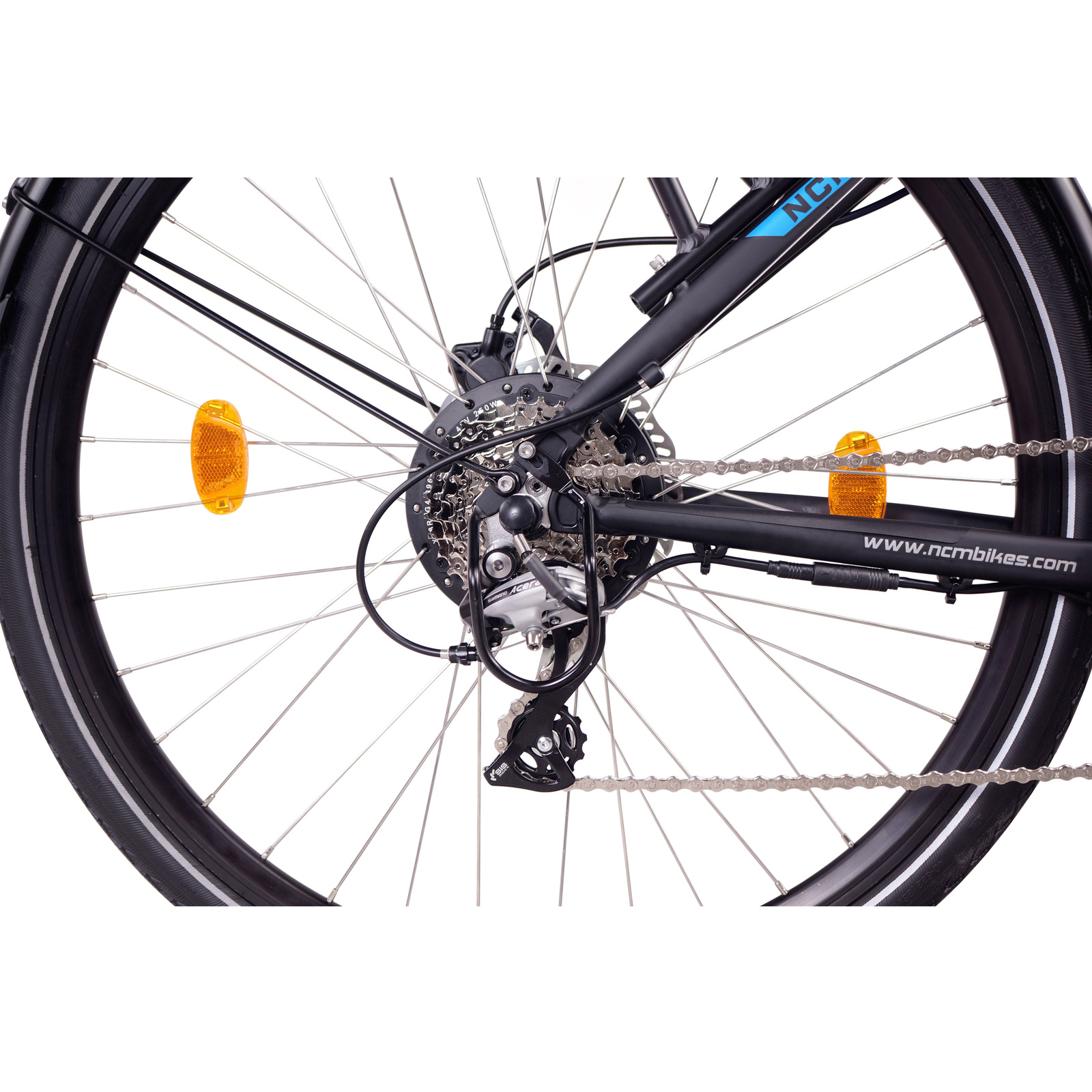

Gear Selector Shimano Altus, 7 speed Shimano Acere, 8 speed
Front Derailleur N/A N/A
Rear derailleur Shimano Altus, 7 speed ShimanoAcere, 8 speed
Saddle Selle Royal, Freeway, Brown Selle Royal, Freeway, Brown
Tyre Schwalbe Marathon, 28×1.5   Schwalbe Marathon, 28×1.5
Handle Grips Velo, Brown Velo, Brown
Pedal Wellgo, B087 Wellgo, B087
Range Upto 120 km Upto 150 km
Weight 27 kg 27 kg

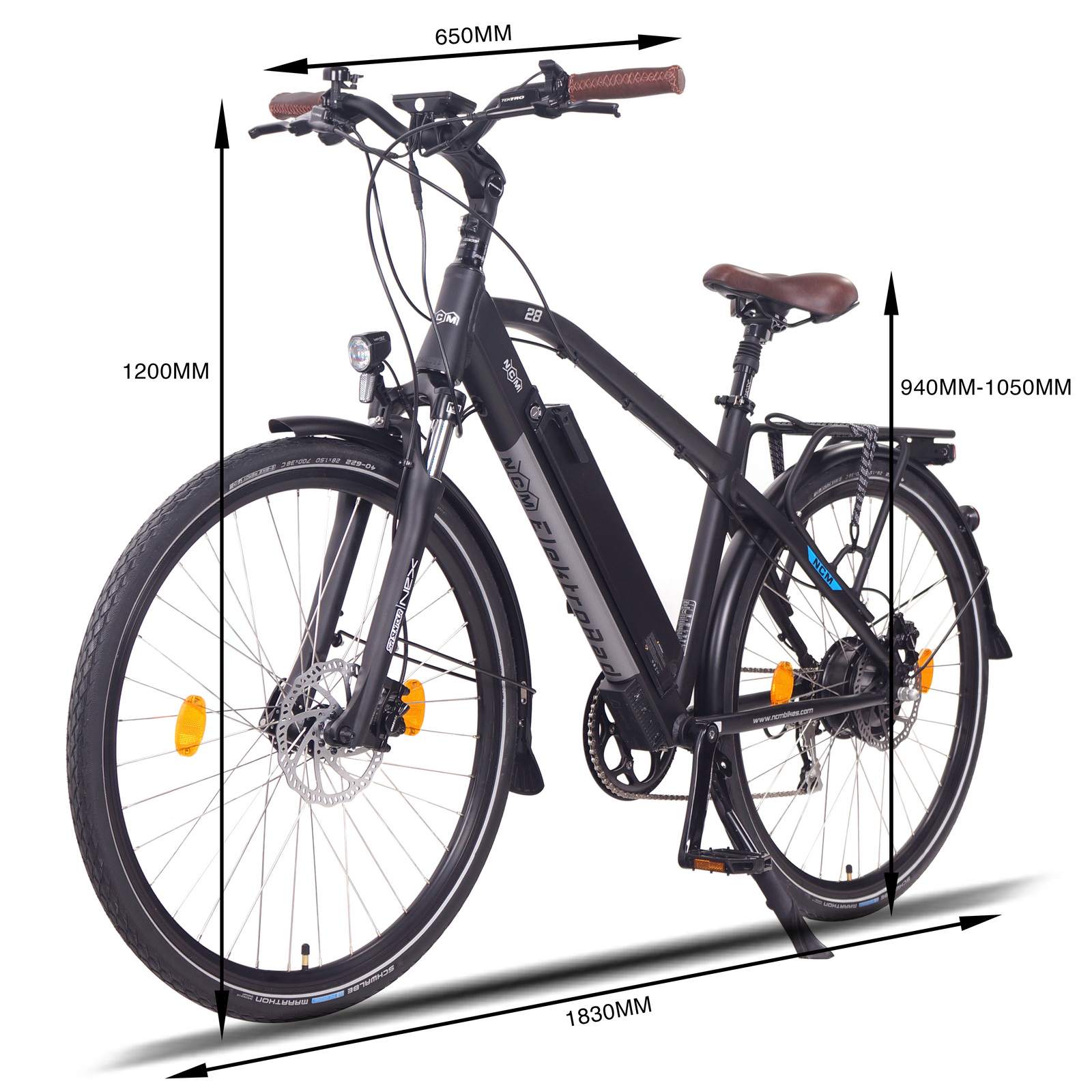

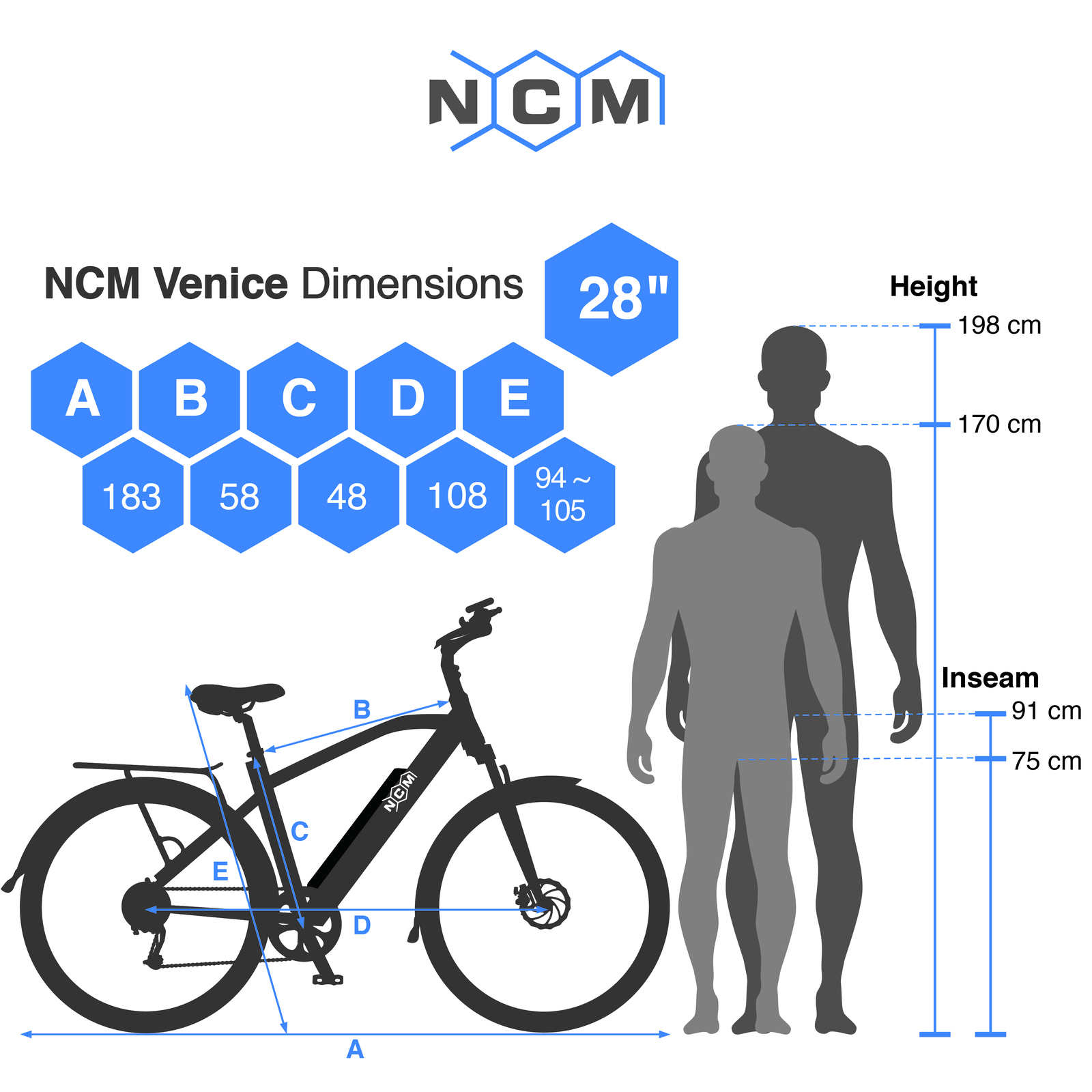

Sizing Chart

cm   A B C D E F
  Stand Over Height Wheel Base Frame Size Min / Max Seat Height Reach Overall Length
Venice 28 Plus 175-198 86-89 108 48 94/105 58 183


Warranty

  • Leon Cycle provides 1-year warranty on all electronic parts (including battery, motor, controller, display, lights)
  • Leon Cycle provides 2-year warranty on the bike frame. For more warranty information visit our FAQS.
  • Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months. For more information contact Leon Cycle on 0390695443.
  • Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.


About NCM

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.


Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. For more information contact us on 0390695443. Visit our Youtube channel for Assembly and New Arrivals Videos. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

  • 1 x Venice Plus E-bike
  • 1 x DC483DE 48v charger
  • 1 x tool kit


(P-VENICE-PLUS)

SKU P-VENICE-PLUS
Brand NCM
Shipping Weight 34.0000kg
Shipping Width 0.230m
Shipping Height 1.010m
Shipping Length 1.840m
Shipping Cubic 0.427432000m3
