NCM London 20"

Introduction

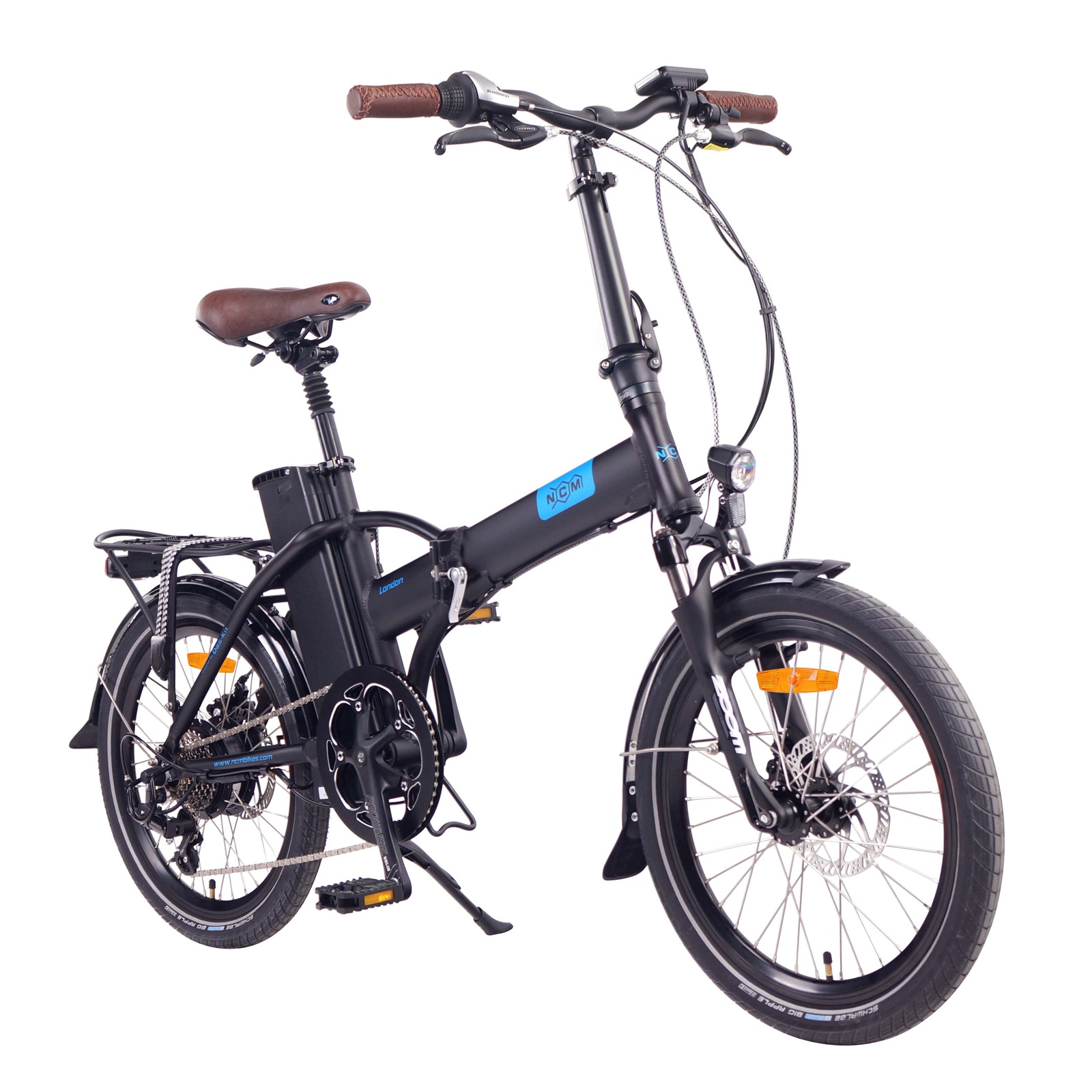

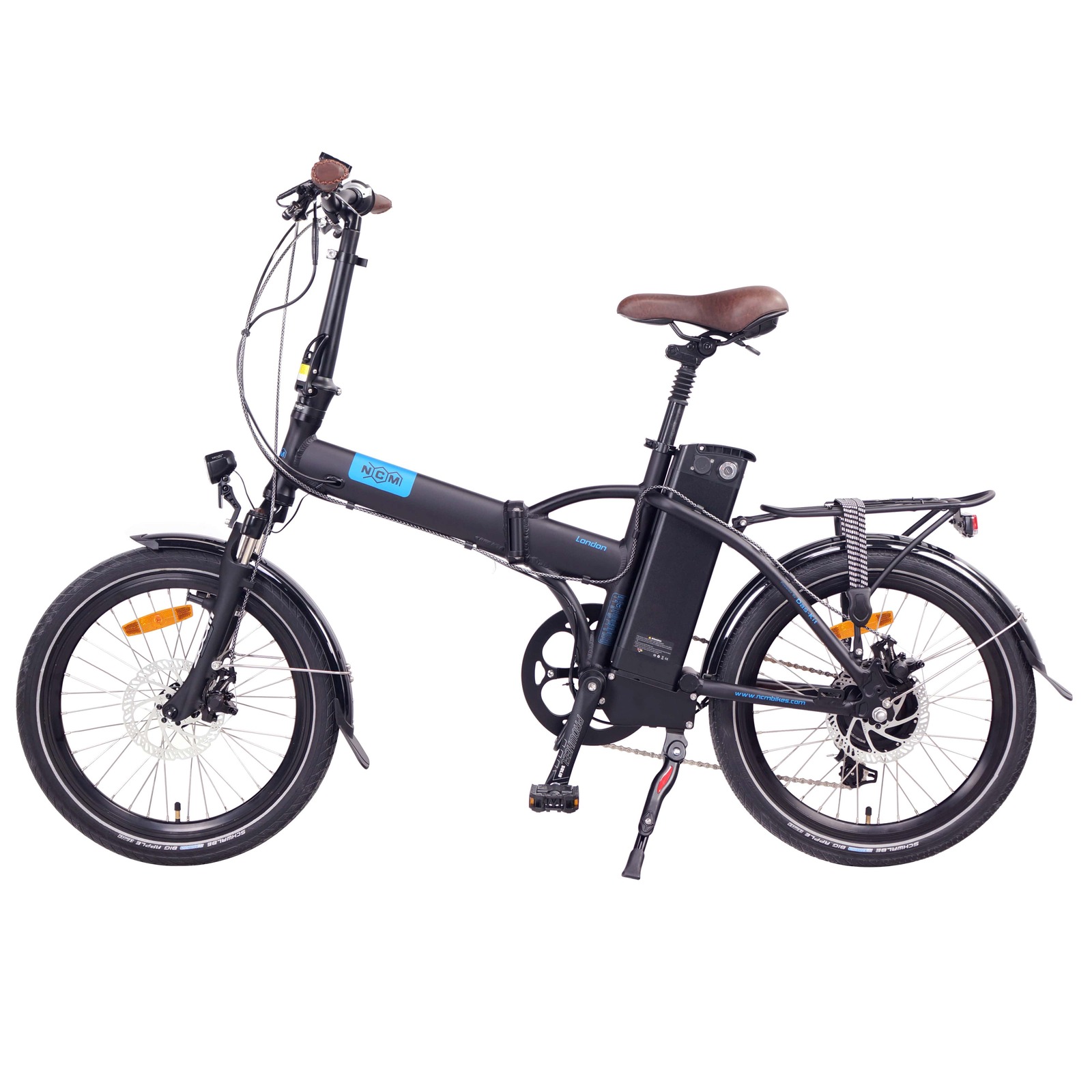

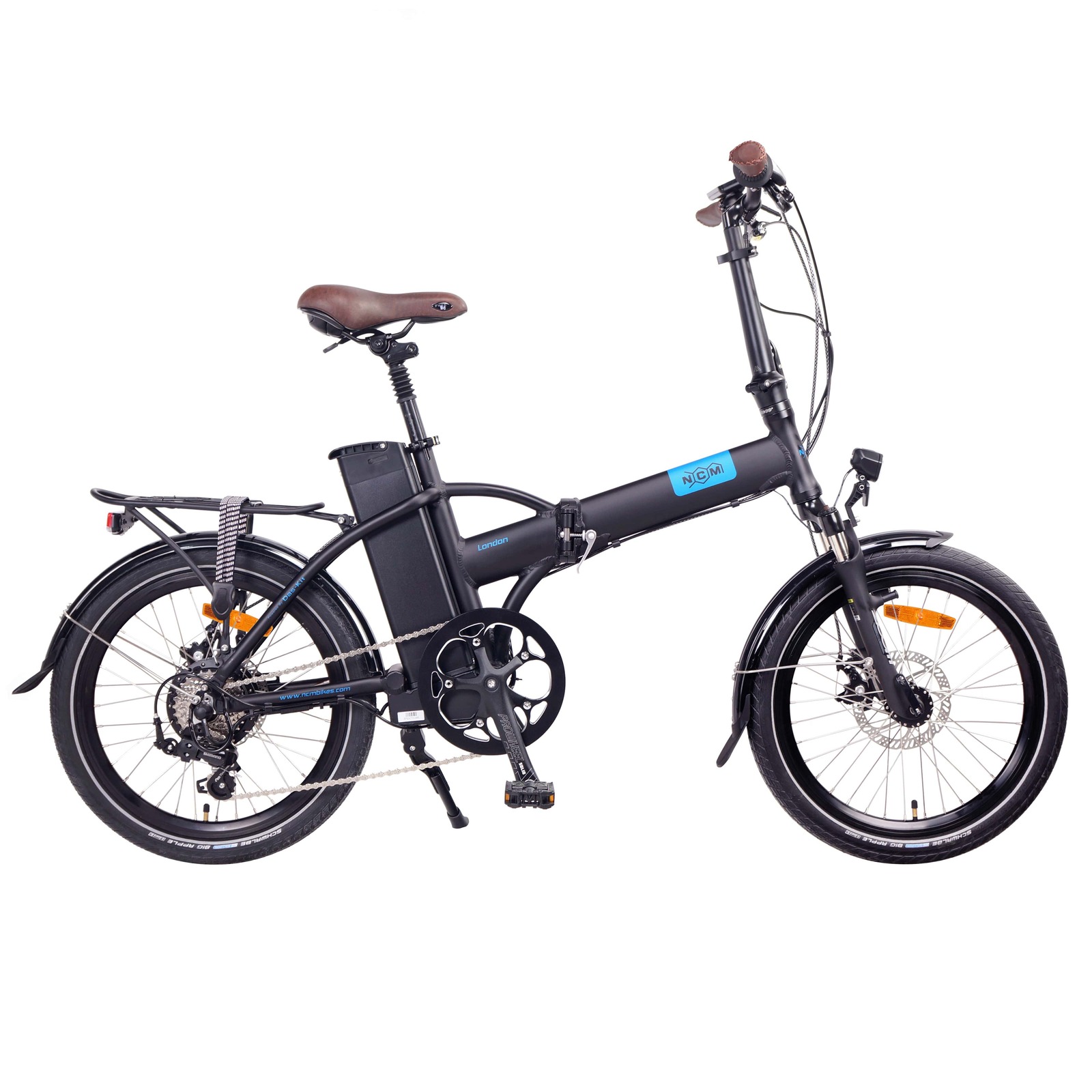

The NCM London is a highly versatile folding E-bike as it can be compacted without tools for even the smallest storage spaces with its folding frame, stem, pedals, and saddle: take it with you when you go on vacation; ride it to your office and park it right next to your chair; or store it at home beside the shoe rack with no inconvenience. The step-through frame makes repeated mounting and dismounting effortless for when you’re shopping or running errands, and a unique feature of the electronics system allows the motor to run at 4mph without the need for pedalling—perfect for navigating through heavy foot traffic or riding casually alongside someone who is walking.

Key Features

Ergonomic bicycle Grips
Comfortable sitting posture
Easy handling of the components
Foldable bicycle handlebar stem
All important controls are easily accessible
Supplied with 36V to deliver a high-output power
Up to 350W Peak Motor Power
540 Wh capacity for a long distance
Up to 110km Battery Range (depending on the conditions)
Battery behind seat tube for a better balance
A built-in USB port with 5V to charge mobile phones

Das kit 250W-350W Motor

Das Kit L6 Display

36V battery with USB

Schwalbe Tyres

Specifications

	NCM London	NCM London +
Motor	Das-Kit R2S motor, 36V 250W, 350W Peak Power, max speed 25 km/h	Das-Kit R2S motor, 36V 250W, 350W Peak Power, max speed 25 km/h
Battery	DEHAWK B1u-3615H, 540Wh, 36V 15Ah	DEHAWK B1u-3619P, 684Wh, 36V 19Ah
Display	Das-Kit L6, LCD Display	Das-Kit C7, LCD Display
Charger	SANS 36V 2A	SANS 36V 3A
Frame	Alu. 6061, 380mm	Alu. 6061, 380mm
Forks	Zoom CH-190 30mm	RST Carve 60mm
Braking System	Tektro Mechanical Disc	Tektro Hydraulic Disc
Gear Selector	Shimano Tourney, 7 speed	Shimano Acera, 8 speed
Front Derailleur	N/A	N/A
Rear derailleur	Shimano Tourney, 7 speed	Shimano Acera, 8 speed
Saddle	Selle Royal, Freeway, Brown	Selle Royal, Freeway, Brown
Tyre	CST / Schwalbe Big Apple. 20×2.0	CST / Schwalbe Big Apple. 20×2.0
Handle Grips	Velo, Brown	Velo, Brown
Pedal	Wellgo, Foldable	Wellgo, Foldable
Range	Upto 110 km	Upto 130 km
Weight	25 kg	25 kg

Sizing Chart

		A	B	C	D	E
		Overall Length	Reach	Frame Size	Wheel Base	Min/Max Seat Height
London	150-182 cm	159 cm	54 cm	40 cm	117 cm	80/90 cm

Warranty

1-year warranty on all electronic parts (including battery, motor, controller, display, lights)
2-year warranty on the bike frame
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.

About NCM

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.

Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

Our E-Bikes meet the following standards:

EPAC EN15194 (limited to 25km/h, 250W motor)
Chargers registered with Australian ERAC as approved for use in AU
Batteries meet international standards IEC 62133-2:2017 (inc battery management)

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

1 x London E-bike
1 x DC362DE 36v charger
1 x tool kit

(P-LONDON)

SKU	P-LONDON
Brand	NCM
Shipping Weight	29.0000kg
Shipping Width	0.400m
Shipping Height	0.680m
Shipping Length	0.900m
Shipping Cubic	0.230400000m3
Unit Of Measure	ea
