EASY BIKE

Introduction

The frame of the Easy Bike folds on the down tube and the stem, while the pedals can also be folded, giving you the versatility to take it anywhere: at work it will take almost no space in your office; when going on vacation it will leave plenty of room for your other luggage; and riding around town leisurely is a pleasure with all of the Easy Bike comfort and practical features, such as the big tires, soft saddle, rear rack and easy on/off design.

Key Features

Ergonomic bicycle Grips
Comfortable sitting posture
All important controls easily accessible
Supplied with 36V to deliver a high output power
over 288Wh capacity for a longer distance
reach up to 50 km (depending on the conditions)
battery integrated in the frame for better aesthetics
easily removable battery so you can charge it anywhere
A built-in USB port with 5V to charge mobile phones

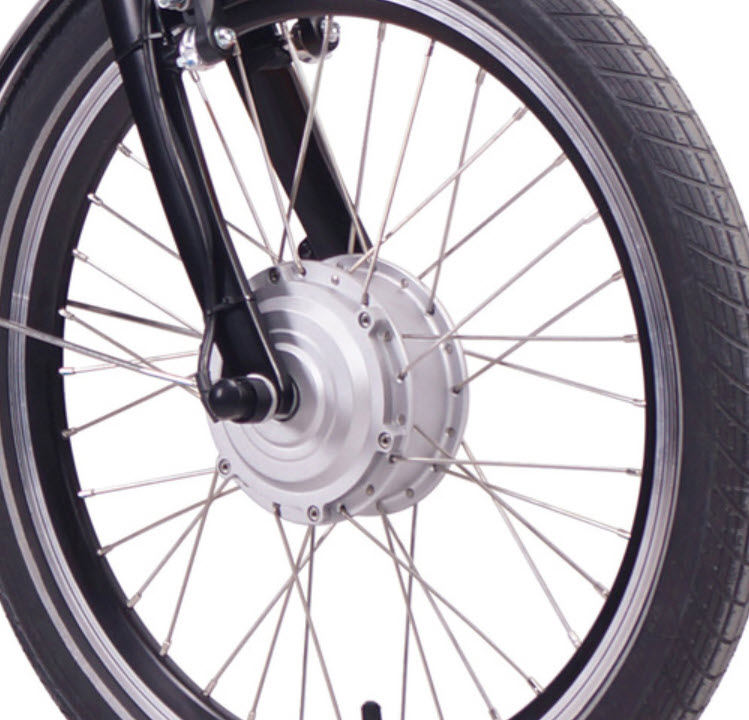

Das-Kit XF07 250W Motor

Das-Kit L6 Display

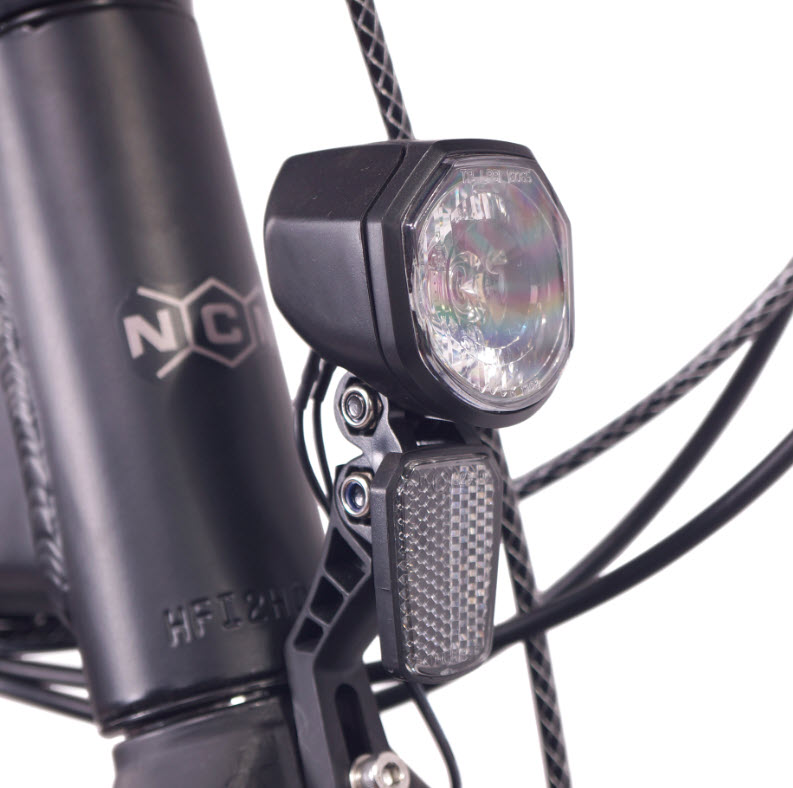

Spanninga Front Light

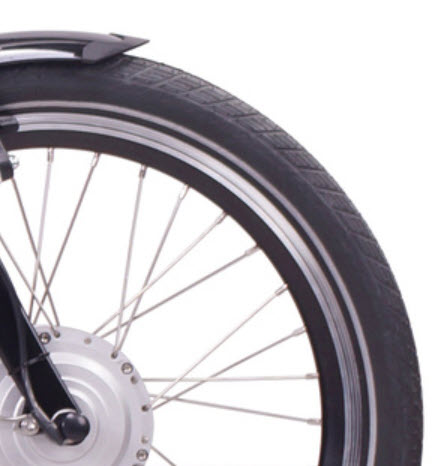

Schwalbe Tyres

Specifications

	Easy Fold
Motor	Das-Kit, XF07, 36V 250W, 25km/h
Battery	DEHAWK, i3-3608, 288Wh
Display	Das-Kit, L6B, LCD
Charger	SANS, 36V 2A
Frame	Al.6061, 20*310mm
Forks	Rigid fork, 20", Alloy
Braking System	Promax, V brake, black
Gear Selector	Shimano, Nexus
Front Derailleur	N/A
Rear derailleur	Shimano, Nexus, 3-speed
Saddle	Selle Royal, brown
Tyre	Schwalbe, Big Apple, 20*2.00"
Handle Grips	Selle Royal, brown
Pedal	Wellgo, F178
Range	25-50 km
Weight	21kg

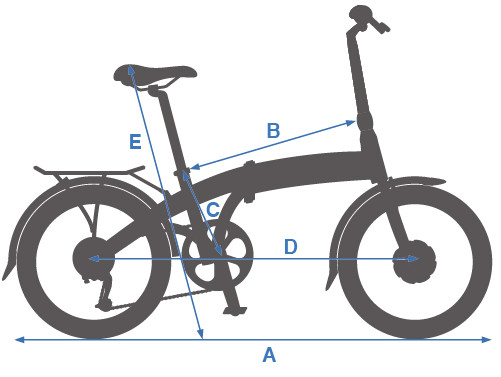

Sizing Chart

		A	B	C	D	E
		Overall Length	Reach	Frame Size	Wheel Base	Min / Max Seat Height
Easy Bike	145-182 cm	160 cm	65 cm	31 cm	105 cm	60-94 cm

Warranty

1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
2 year warranty on the bike frame
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.

About NCM

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.

Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

1 x NCM Easybike
1 x SANS, 36V 2A charger
1 x tool kit

(P-EASYBIKE)

SKU	P-EASYBIKE
Brand	EasyBike
Shipping Weight	29.0000kg
Shipping Width	0.400m
Shipping Height	0.640m
Shipping Length	0.900m
Shipping Cubic	0.230400000m3
